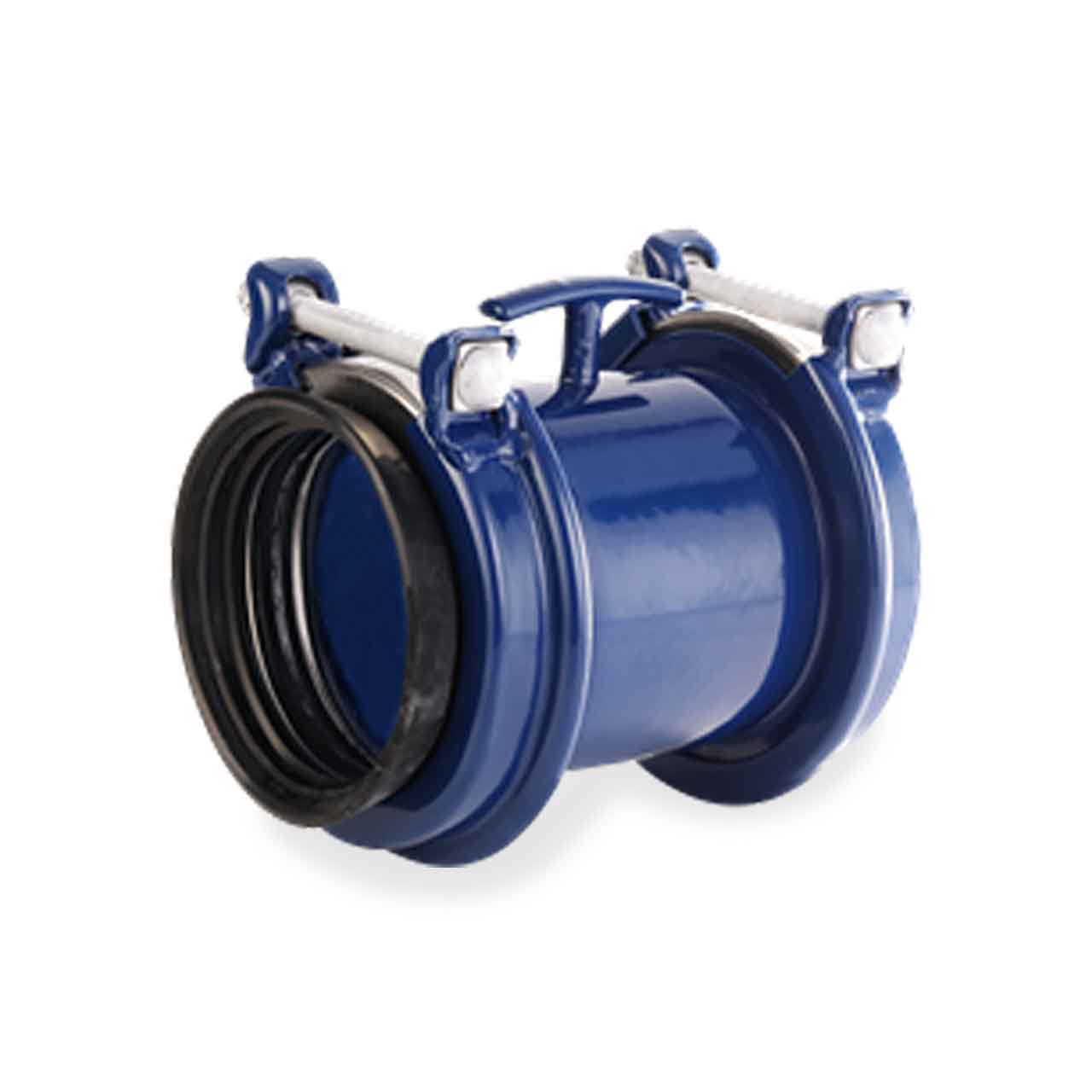

Wide-Range HYMAX 2 Coupling's with anti-corrosion cathodic protection feature connects two pipes of the same or different OD circumferences and materials. With only 2 bolts to close, it provides the fastest option of joining pipes.

Hymax 2 Cathodic Flip Coupling Features

• 888-54-0054-16; 2.0" EPDM Cathodic Protection Flip Coupling
• Eliminates Gasket Removal Mistakes and Maximizes Installers' Efficiency
• Hymax Coupling with Cathodic Protection
• Using Game-Changing Hymax Technology, Proven in Over 1M Installations in the US
• Suitable for all Metal Pipes
• Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
• Lightweight Construction Enables Fast and Easy Installation
• Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
• One Product can Connect Pipes of Two Different Materials

Hymax 2 Cathodic Flip Coupling Specifications

• Meets or Exceeds Standards AWWA C-219, NSF 61,and NSF 372
• SIZE: 2.0" Nominal Pipe Size
• PIPE O.D. RANGE: 2.10 - 3.03
• WORKING PRESSURE: 260 PSI
• RATED PRESSURE: 390 PSI
• TORQUE: 65 FT-LBS
• MATERIALS:
• END RINGS: ASTM A283/A283M Grade C Steel
• CENTER RING: ASTM A53 Grade A Steel
• GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
• BRIDGE: AISI 304 Stainless Steel
• SPHERICAL SPACERS: AISI 304 Stainless Steel
• COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
• NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
• PROTECTION PARTS CATHODIC: AISI 304 Stainless Steel

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
