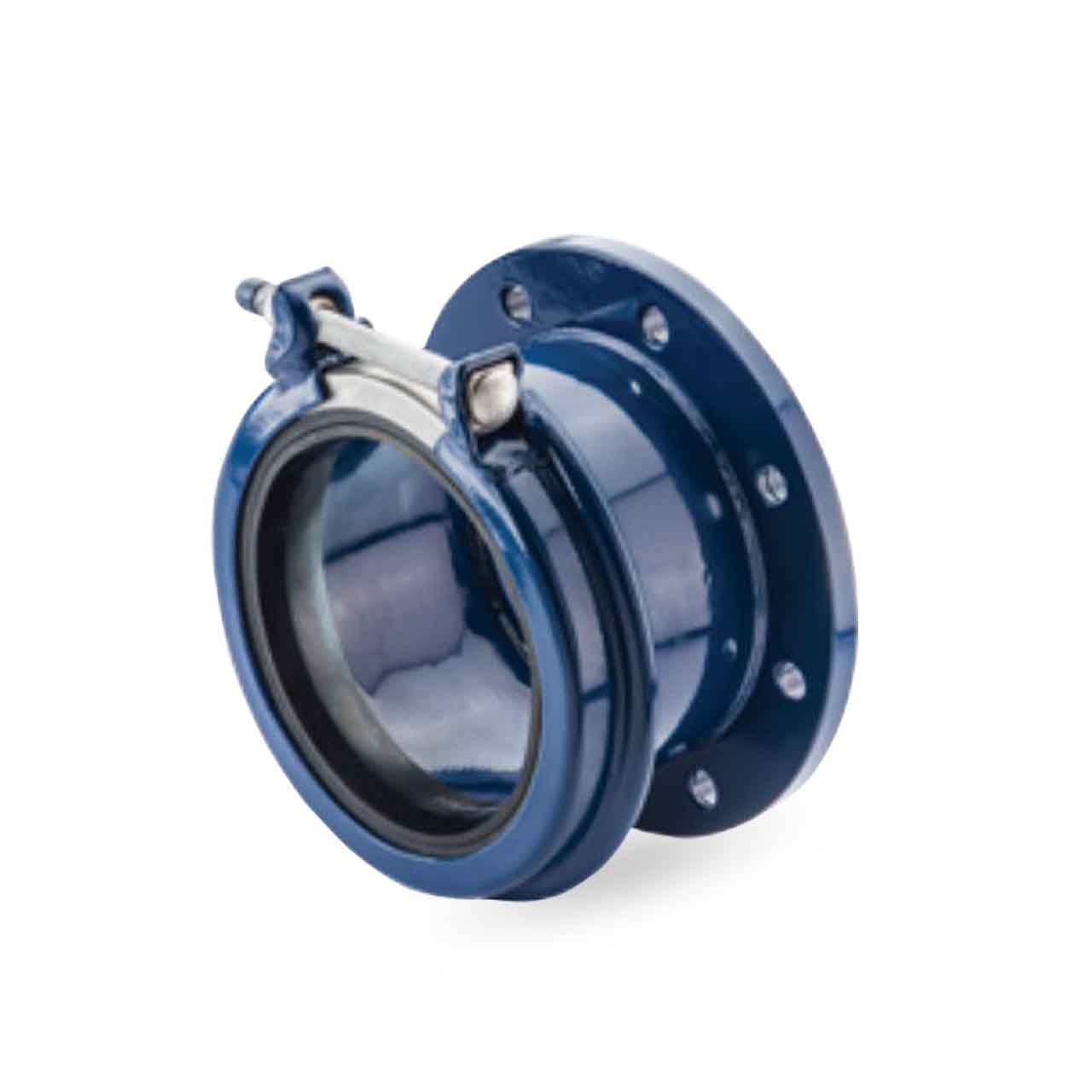

Hymax 2 874-54-12031512 ND 12" EPDM Flip Flange Adapter 12.40-13.66 O.D. 304SS
Hymax 2 874-54-12031512 ND 12" EPDM Flip Flange Adapter 12.40-13.66 O.D. 304SS
SKU : HMX874-54-12031512
In Stock Quantity:0
:
Brand
:
Regular price
$1,926.89 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Wide-Range HYMAX 2 Flange Adapter's connect to any flanged device such as valves, pumps and other devices with a variety of pipe circumferences and materials up to 2.1" range.
Hymax 2 Flip Flange Adapter Features
- 874-54-12031512; 12" EPDM Flip Flange Adapter
- Advanced Wide-Range Coupling with A Patented Flip Gasket
- Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
- Using the Game-Changing Hymax Technology, Proven in over 1M Installations in the US
- Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
Specifications
Specifications
Hymax 2 Flip Flange Adapter Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- PIPE SIZE: 12" Nominal Pipe Size
- FLANGE SIZE: 12"
- PIPE O.D. RANGE: 12.40 - 13.66
- WORKING PRESSURE: 175 PSI
- RATED PRESSURE: 262 PSI
- TORQUE: 65 FT-LBS
- MATERIALS:
- FLANGED BODY: ASTM A53 Grade A Steel
- FLANGE: Meets AWWA Class D
- END RINGS: ASTM A283/A283M Grade C Steel
- SPHERICAL SPACERS: AISI 304L Stainless Steel
- GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax 2 Flip Flange Adapter Product Resources
Download HYMAX 2 Family Brochure
