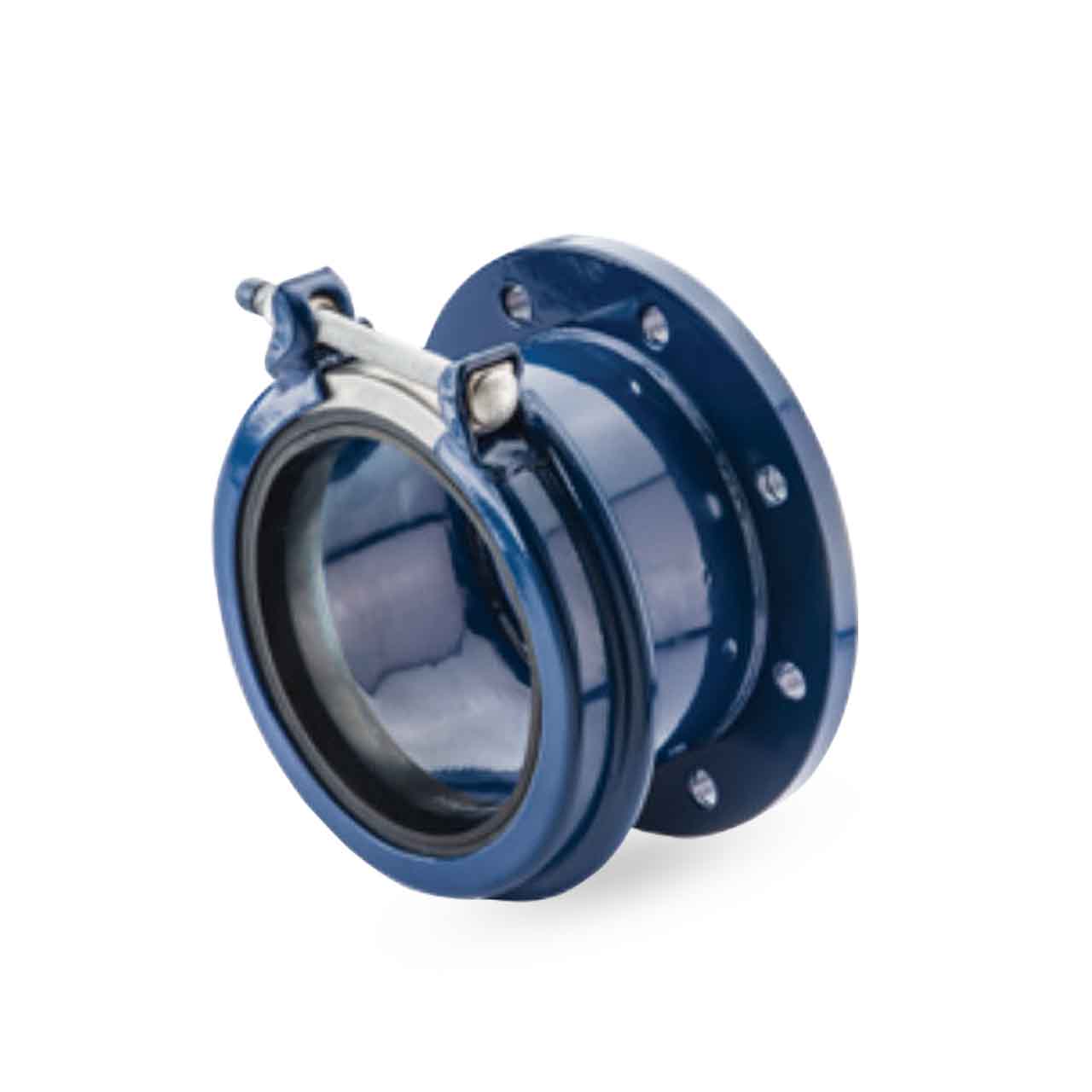

Hymax 2 Flip Flange Adapter Features

• 874-54-02005412; 2.0" EPDM Oval Flip Flange Adapter
• Advanced Wide-Range Coupling with A Patented Flip Gasket
• Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
• Using the Game-Changing Hymax Technology, Proven in over 1M Installations in the US
• Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
• Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
• Lightweight Construction Enables Fast and Easy Installation
• Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage

Hymax 2 Oval Flip Flange Adapter Specifications

• Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
• PIPE SIZE: 2.0" Nominal Diameter Pipe Size
• FLANGE SIZE: 2.0" Oval
• PIPE O.D. RANGE: 2.10 - 3.03
• WORKING PRESSURE: 175 PSI
• RATED PRESSURE: 262 PSI
• TORQUE: 50 FT-LBS
• MATERIALS:
  • FLANGED BODY: ASTM A53 Grade A Steel
  • FLANGE: Oval Flange for Flow Meter
  • END RINGS: ASTM A283/A283M Grade C Steel
  • SPHERICAL SPACERS: AISI 304L Stainless Steel
  • GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
  • BRIDGE: AISI 304 Stainless Steel
  • COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
  • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
