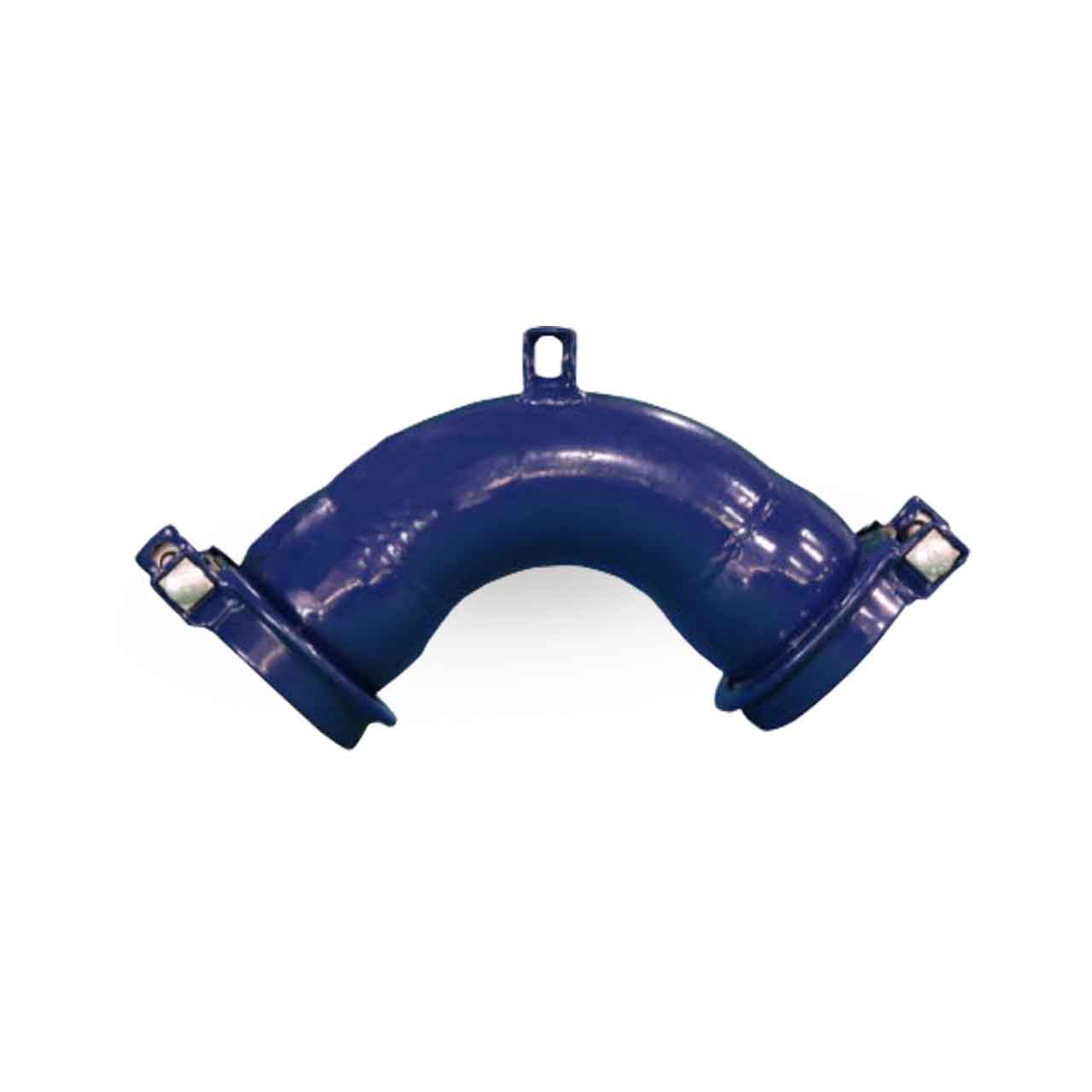

Hymax 2 869-54-90108-16 4.0" EPDM 90 Degree Elbow 4.25-5.63 O.D.
Hymax 2 869-54-90108-16 4.0" EPDM 90 Degree Elbow 4.25-5.63 O.D.
SKU : HMX869-54-90108-16
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Hymax
HYMAX 2 ELBOW (sizes 2″-12″) is a wide-range coupling with an elbow of 45° or 90° angle. It connects a large variety of pipe materials and different diameters.
Fast and easy to install, HYMAX ELBOW has only 2 bolts. Its pressure-assisted hydraulic gasket allows for dynamic deflection of 4° per end.
Hymax 2 90 Degree Elbow Features
- 869-54-90108-16; 4.0" EPDM 90 Degree Elbow
- Wide-Range Coupling with an Elbow of 45° or a 90° Angle
- Patented Hydraulically-Assisted Gasket Easily Flips In or Out to Accommodate Larger ND Pipes
- Using the Game-Changing Hymax Technology, Proven in Over 1M Installations in North America
- Connects a Large Variety of Pipe Materials
- Joins Two Pipes of the Same or Different Diameters and Materials
- Fast and Easy Installation, Two Top-Facing Bolts
- Dynamic Deflection of 4° Per End
Specifications
Specifications
Hymax 2 90 Degree Elbow Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- SIZE: 4.0" Nominal Pipe Size
- PIPE O.D. RANGE: 4.25 - 5.63
- WORKING PRESSURE: 260 PSI
- RATED PRESSURE: 390 PSI
- TORQUE: 65 FT-LBS
- MATERIALS:
- CENTER RING: ASTM A53 Grade A Steel
- END RINGS: ASTM A283/A283M Grade C Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax 2 90 Degree Elbow Product Resources
Download HYMAX 2 Family Brochure
Download HYMAX 2 45 and 90 Degree Elbow Specifications
Download HYMAX 2 45 and 90 Degree Elbow Installation Instructions
