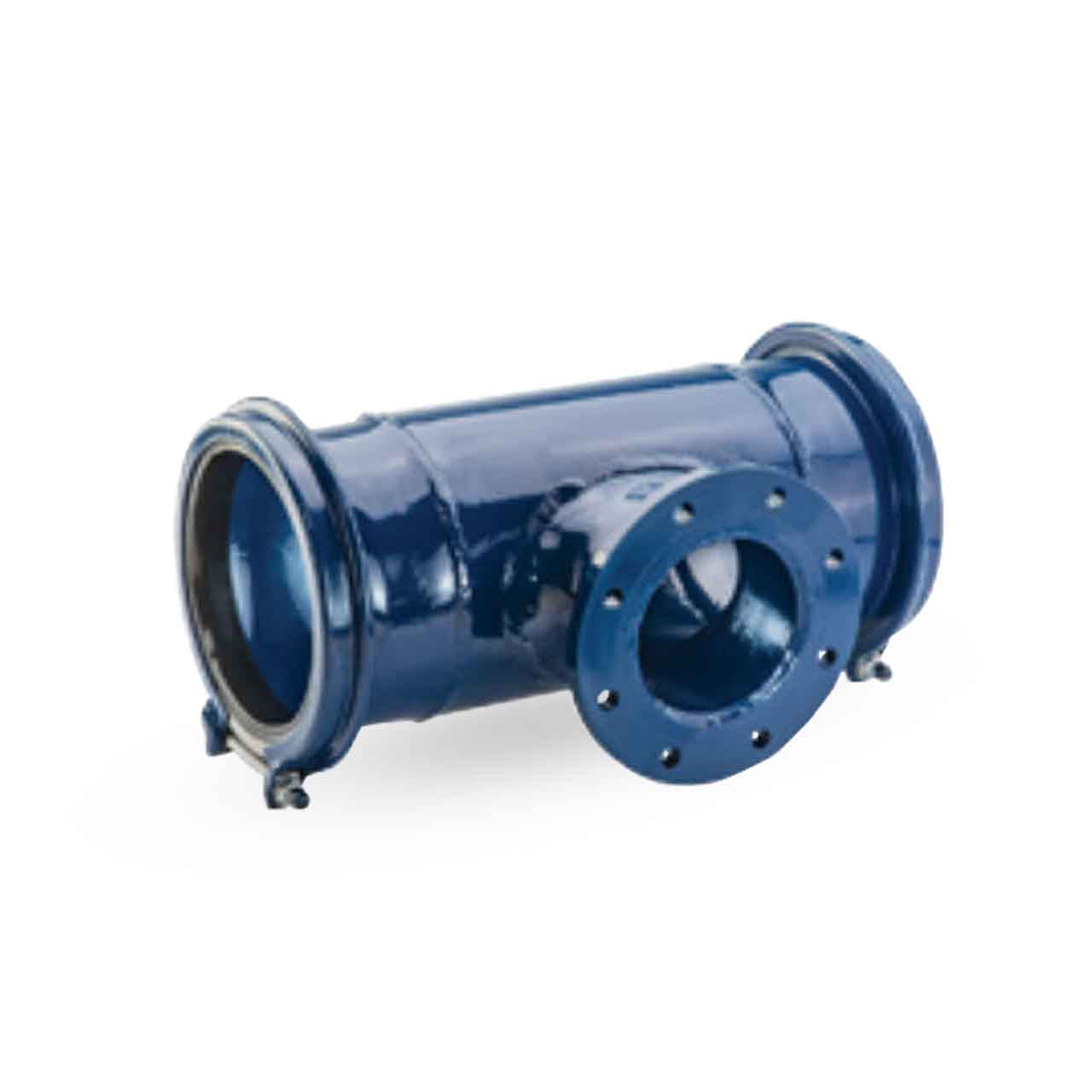

Hymax 2 866-54-0204-12 ND 4.0" EPDM Oval Flanged Outlet 4.25-5.63 O.D.
Hymax 2 866-54-0204-12 ND 4.0" EPDM Oval Flanged Outlet 4.25-5.63 O.D.
SKU : HMX866-54-0204-12
In Stock Quantity:0
:
Brand
:
Regular price
$1,555.59 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
HYMAX 2 Flanged Outlet provides effective outlet solutions for a wide variety of piping types and diameters, joining pipes made of the same or different materials and with varying diameters of up to 1.3".
Hymax 2 Flanged Outlet Features
- 866-54-0204-12; 4.0" EPDM Flanged Outlet
- Advanced Wide-Range Coupling with a Patented Flip Gasket
- Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
- Using the Game-Changing Hymax Technology, Proven in Over 1M Installations in North America
- Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- One Product can Connect Pipes of Two Different Materials
Specifications
Specifications
Hymax 2 Oval Flanged Outlet Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- PIPE SIZE: 4.0" Nominal Diameter Pipe Size
- FLANGE OUTLET: 2.0" Oval
- PIPE O.D. RANGE: 4.25 - 5.63
- WORKING PRESSURE: 260 PSI
- RATED PRESSURE: 390 PSI
- TORQUE: 50 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283/A283M Grade C Steel
- CENTER RING: ASTM A53 Grade A Steel
- FLANGED OUTLET: Meets AWWA Class D
- GASKETS: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304L Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel, Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax 2 Flanged Outlet Product Resources
Download HYMAX 2 Family Brochure
