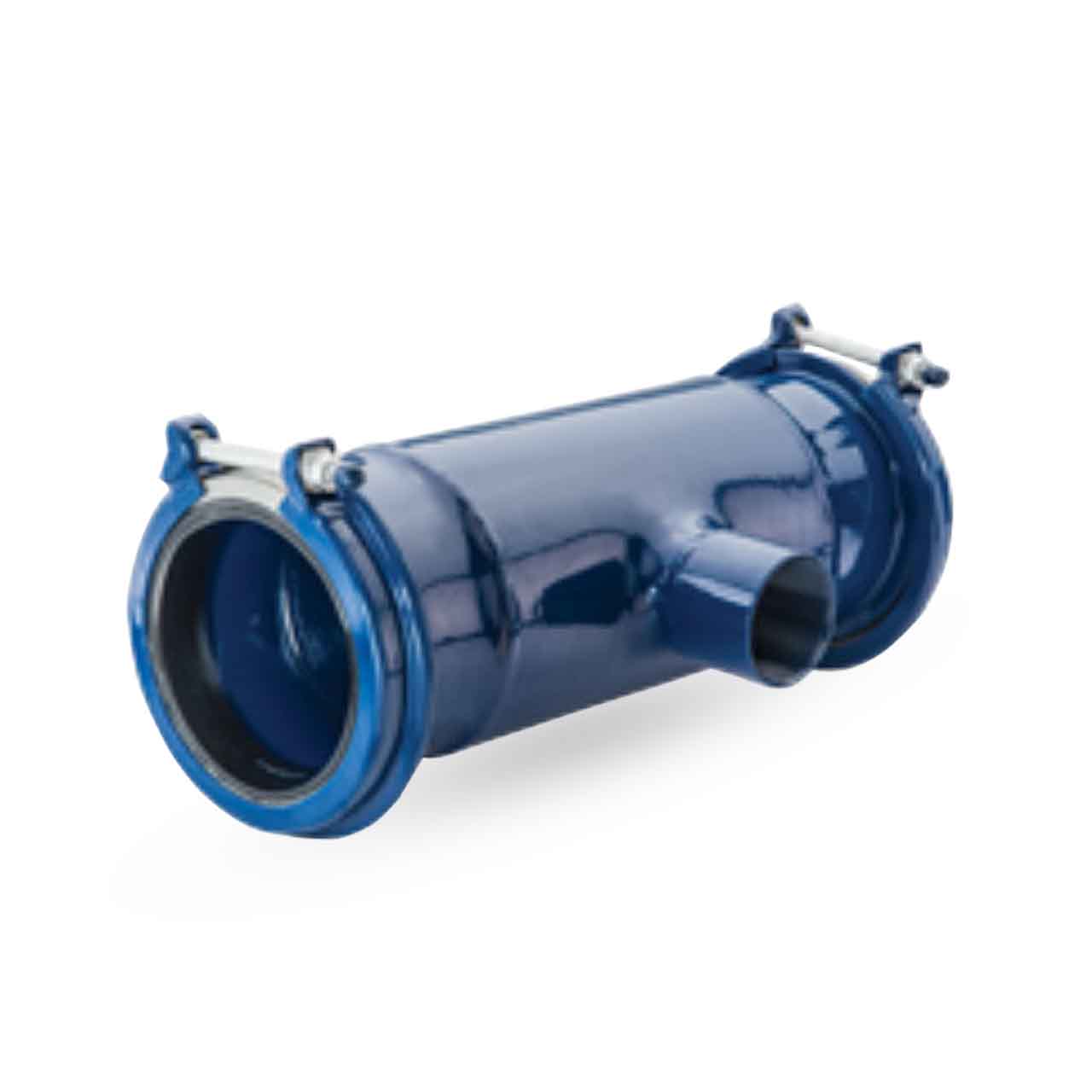

Hymax 2 865-54-01054-16 ND 2.0" EPDM Threaded Outlet
Hymax 2 865-54-01054-16 ND 2.0" EPDM Threaded Outlet
SKU : HMX865-54-01054-16
In Stock Quantity:0
:
Brand
:
Regular price
$624.04 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
HYMAX 2 Threaded Outlet provides effective outlet solutions for a wide variety of piping types and diameters, joining pipes made of the same or different materials and with varying diameters of up to 1.3".
Hymax 2 Threaded Outlet Features
- 865-54-01054-16; 2.0" EPDM Threaded Outlet
- Advanced Wide-Range Coupling with a Patented Flip Gasket
- Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
- Using the Game-Changing Hymax Technology, Proven in Over 1M Installations in North America
- Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- One Product can Connect Pipes of Two Different Materials
Specifications
Specifications
Hymax 2 Threaded Outlet Specifications
- Meets or Exceeds Standards AWWA C-219, NSF-61 and NSF-372
- PIPE SIZE: 2.0" Nominal Diameter Pipe Size
- NPT OUTLET: 1.0"
- PIPE O.D. RANGE: 2.10 - 3.03
- WORKING PRESSURE: 260 PSI
- RATED PRESSURE: 390 PSI
- TORQUE: 50 FT-LBS
- MATERIALS:
- CENTER RING: ASTM A53 Grade A Steel
- END RINGS: ASTM A283/A283M Grade C Steel
- GASKETS: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
- SPHERICAL SPACERS: AISI 304L Stainless Steel
- BRIDGE: Type 304 Stainless Steel
- OUTLET: Threaded Coupling NPT Class 3000, Meets ANSI B16.11
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax 2 Threaded Outlet Product Resources
Download HYMAX 2 Family Brochure
