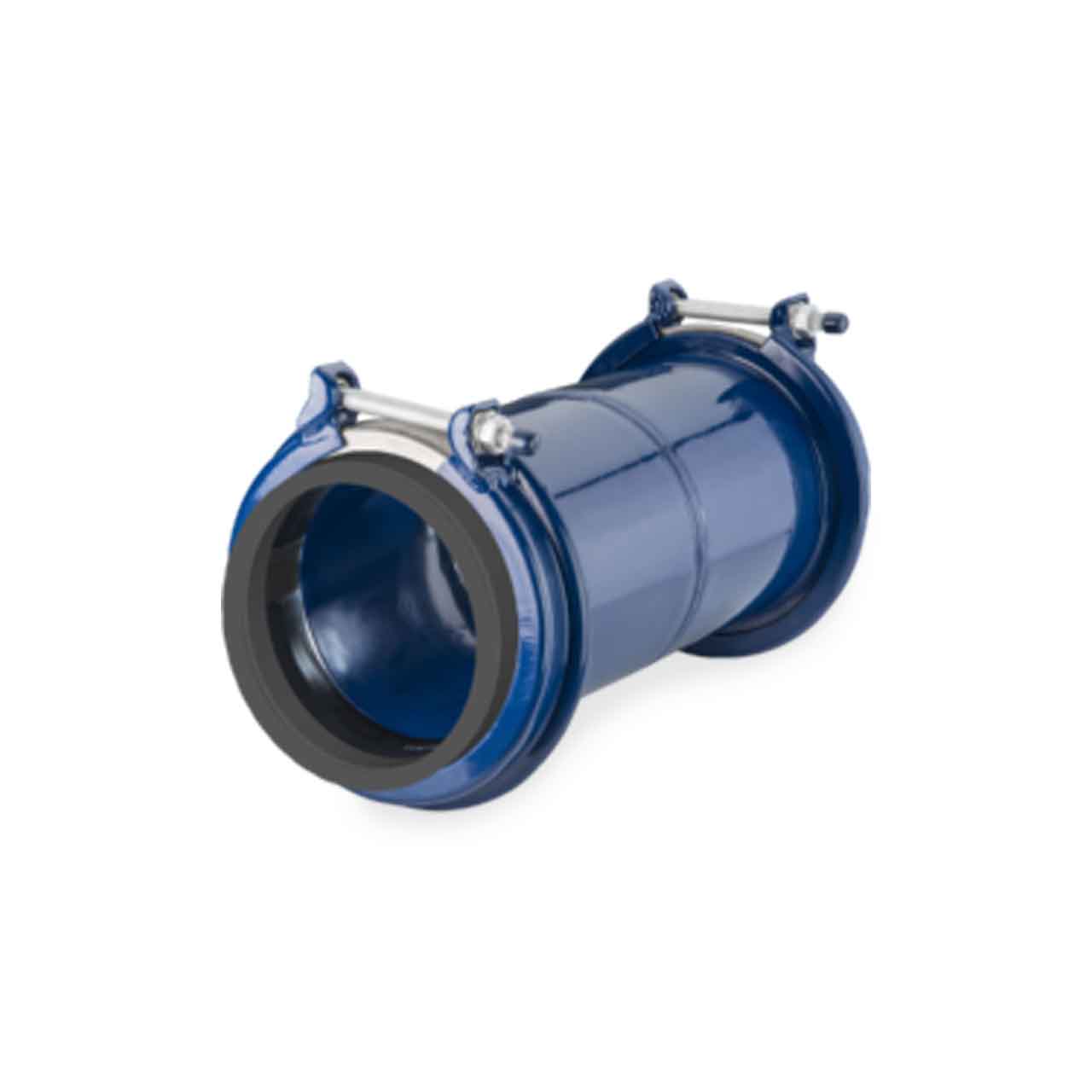

Hymax 2 862-54-0130-16 ND 5.0" EPDM Long Body Coupling 5.12-6.38 O.D.
Hymax 2 862-54-0130-16 ND 5.0" EPDM Long Body Coupling 5.12-6.38 O.D.
SKU : HMX862-54-0130-16
In Stock Quantity:0
:
Brand
:
Regular price
$959.29 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Wide-Range HYMAX 2 Long Body Coupling is used for pipe section replacement and connects two pipes of the same or different OD pipe circumferences and materials which covers a wider gap between the pipes with up to a 2.1" range. Long couplings are typically used when there is uncertainty regarding the gap between the pipes.
Hymax 2 Flip Long Body Coupling Features
- 862-54-0108-16; 4.0" EPDM Flip Long Body Coupling
- Advanced Wide-Range Coupling with a Patented Flip Gasket
- Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
- Game-Changing Wide-Range Coupling, Proven in Over 1M Installations in the US
- Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Long Body for Extra Flexibility
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- One Product can Connect Pipes of Two Different Materials
- Lifting T-Handle Exists in Sizes 3"-12" ONLY
Specifications
Specifications
Hymax 2 Long Body Coupling Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- SIZE: 5.0" Nominal Pipe Size
- PIPE O.D. RANGE: 5.12 - 6.38
- WORKING PRESSURE: 260 PSI
- RATED PRESSURE: 390 PSI
- TORQUE: 65 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283/A283M Grade C Steel
- CENTER RING: ASTM A53 Grade A Steel
- GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax 2 Long Body Coupling Product Resources
Download HYMAX 2 Family Brochure
