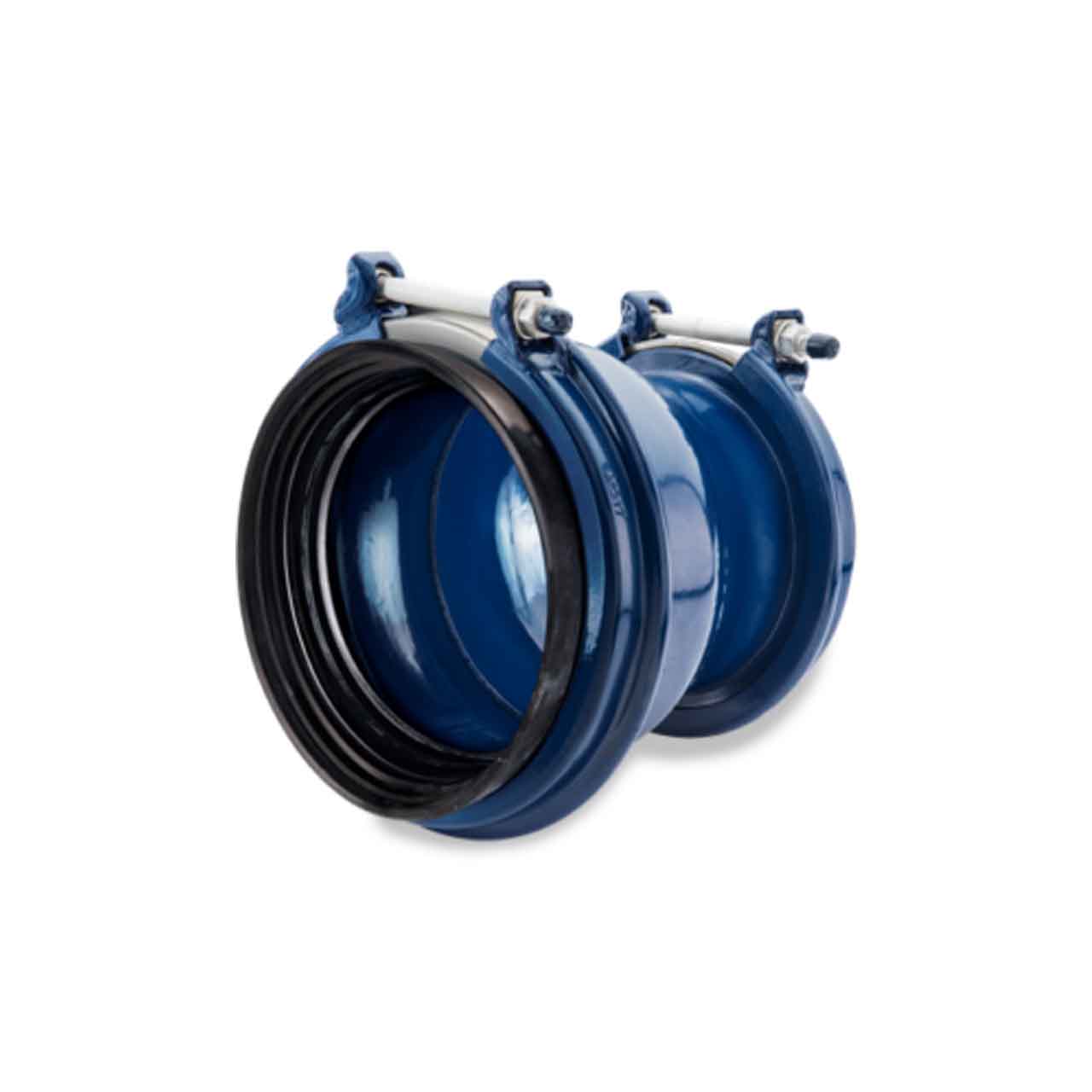

Hymax 2 861540163021716 6.0" x 8.0" EPDM Reducer
Hymax 2 861540163021716 6.0" x 8.0" EPDM Reducer
SKU : HMX861540163021716
In Stock Quantity:0
:
Brand
:
Regular price
$979.18 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
HYMAX Grip Reducer restrains pipes of differing diameters, with unmatched performance. Its patented pipe grip system is based on a universal gripping system designed to restrain metal and plastic pipes. The unique patented radial closing mechanism holds the pipe tightly in place during installation, allowing full control over the gap between the pipes. A patented GRIP chain offers circular restraint around the pipe, unlike typical wedge-style restraints that point-load the pipe.
Hymax 2 Reducer Features
- 861540163021716; 6.0" X 8.0" EPDM Reducer
- Advanced Wide-Range Coupling with a Patented Flip Gasket
- Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
- Using the Game-Changing Hymax Technology, Proven in Over 1M Installations in the US
- Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- One Product can Connect Pipes of Two Different Materials
Specifications
Specifications
Hymax 2 Reducer Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- PIPE SIZE: 6.0" x 8.0" Nominal Diameter Pipe Size
- OVERALL RANGE OUTLET 1: 6.42 - 7.68
- OVERALL RANGE OUTLET 2: 8.54 - 9.84
- WORKING TEMPERATURE: EPDM: -20°F and up to +125°F
- WORKING PRESSURE: 260 PSI
- RATED PRESSURE: 390 PSI
- TORQUE SIDE 1: 75 FT-LBS
- TORQUE SIDE 2: 75 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283/A283M Grade C Steel
- CENTER RING: ASTM A53 Grade A Steel
- GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax 2 Reducer Product Resources
Download HYMAX 2 Family Brochure
