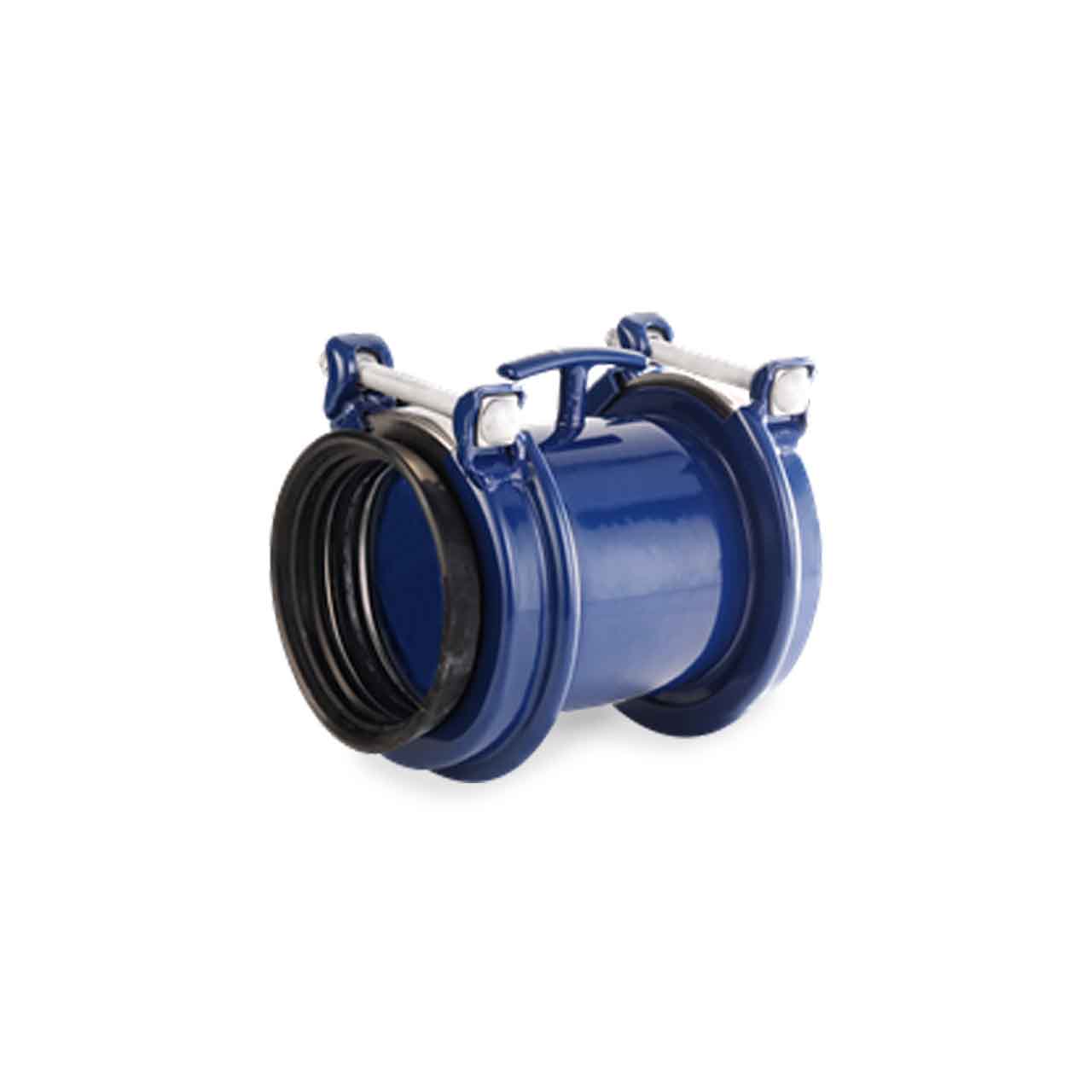

Hymax 2 860-54-0088-16 ND 3.0" EPDM Wide-Range Coupling 3.46 - 4.33 O.D.
Hymax 2 860-54-0088-16 ND 3.0" EPDM Wide-Range Coupling 3.46 - 4.33 O.D.
SKU : HMX860-54-0088-16
In Stock Quantity:8
:
Brand
:
Regular price
$391.51 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
HYMAX introduces an innovative new coupling solution - the wide range HYMAX 2. HYMAX 2 coupling featuring a patented flip gasket that can easily flip in or out to accommodate different pip ODs, allowing for faster and more efficient installations. HYMAX 2 has all other features of the original HYMAX: 2 top-facing bolts for faster and safer installation, dynamic pipe deflection that minimizes the risk of future pipe breaks due to temperature changes and ground shifts.
The original game-changing HYMAX, created by Krausz, has been field-proven in millions of installations in the USA. New and Improved HYMAX 2 is a superior product.
Hymax 2 Wide-Range Flip Coupling Features
- 860-54-0088-16; ND 3.0" EPDM Wide-Range Flip Coupling
- Advanced Wide-Range Coupling with a Patented Flip Gasket
- Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
- Only 2-4 Top Facing Bolts, For Faster and Safer Installation
- Ready-to-Use Design to Eliminate Extensive Preparatory Under-Pipe Digging
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Suitable for All Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- One Product Can Connect Pipes of Two Different Materials
- Based on the Game-Changing HYMAX that has Been Field-Proven in Millions of Installations in the US
- Product Performance, OD Range and Pressures are Identical to Those of the Original HYMAX
- Lifting T-Handle Exists in Sizes 3" - 12" ONLY
Specifications
Specifications
Hymax 2 Wide-Range Flip Coupling Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- SIZE: 3.0" Nominal Diameter Pipe Size
- PIPE O.D. RANGE: 3.46 - 4.33
- WORKING PRESSURE: 260 PSI
- RATED PRESSURE: 390 PSI
- TORQUE: 75 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283/A283M Grade C Steel
- CENTER RING: ASTM A53 Grade A Steel
- GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304L Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax 2 Wide-Range Flip Coupling Product Resources
Download HYMAX 2 Wide-Range Coupling Brochure
Download HYMAX 2 Wide-Range Coupling Specifications
Download HYMAX 2 Wide-Range Coupling Installation Instructions
