Item Discontinued, See Similar Replacement: Myers Submersible Sump Pump MS50V10 0.5 HP 115V 10' Cord Automatic

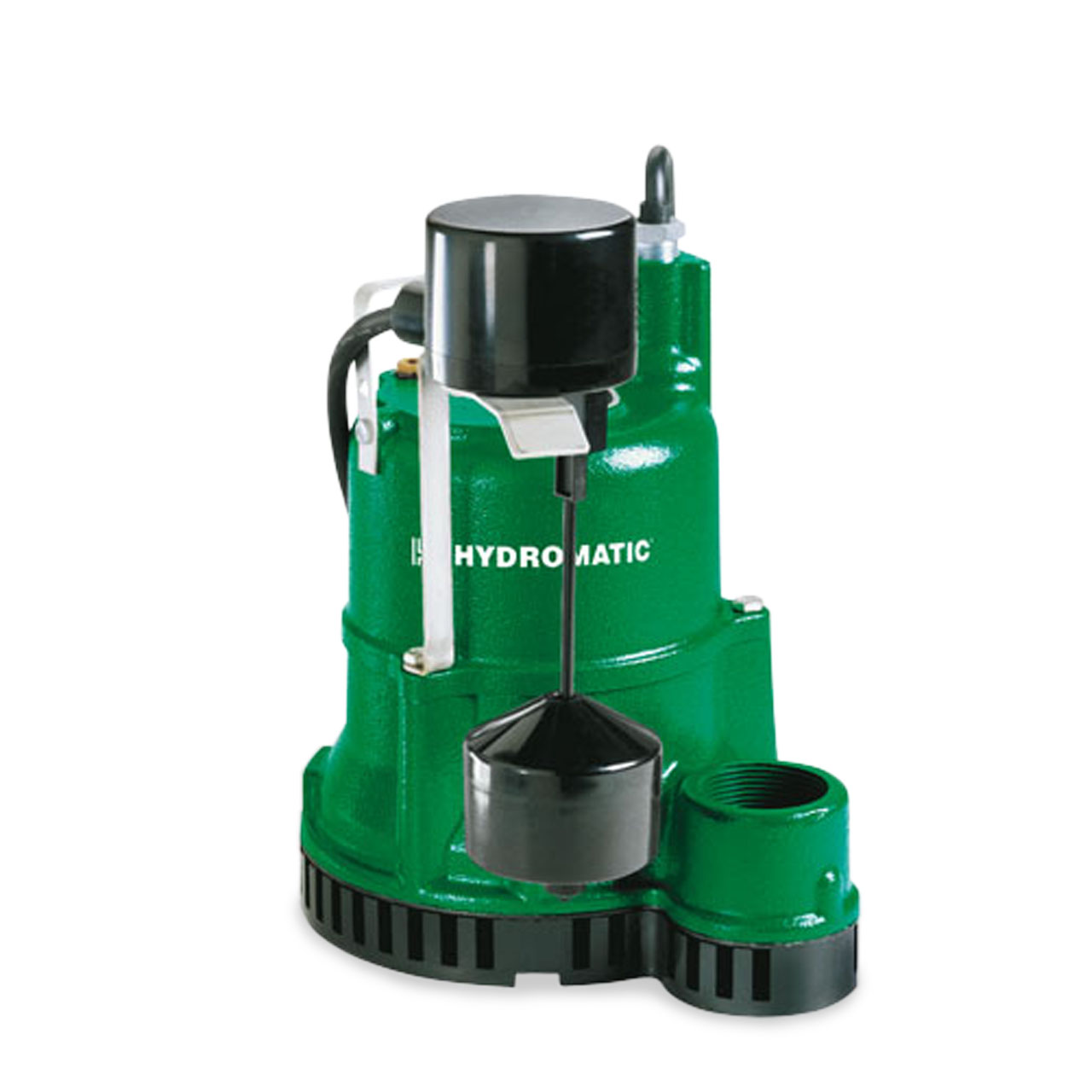

Hydromatic VS50A1 Description

The Hydromatic VS50 submersible pump is specifically designed to meet the demands of residential sump and septic tank effluent applications

Hydromatic VS50 Typical Application

• Basement Sumps
• Dewatering
• Light Effluent
• Industrial Circulators
• Transfer Tanks

Hydromatic VS50 Superior Features

• Carbon/Ceramic mechanical seal
• Oil-filled motor with automatic reset thermal overload
• Uses single-row ball-bearing construction
• Includes vertial float and rod mechanical switch

Hydromatic VS50A1 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.5 HP
• RPM: 1550
• MAXIMUM HEAD: up to 30'
• MAXIMUM CAPACITY: up to 64 GPM
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• AMP DRAW (full load): 12.0
• CORD LENGTH: 10'; Type SJTW
• VOLTAGE: 1ø, 115V
• MAXIMUM LIQUID TEMPERATURE: 120°F
• MOTOR: Shaded Pole with Thermal Overload, Oil Filled
• IMPELLER CONSTRUCTION: Two Vane Semi-Open,Thermoplastic

Hydromatic VS50 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic VS50 Product Resources

Download Hydromatic VS50 Sales Brochure

Download Hydromatic VS50 Performance Data

Download Hydromatic VS50 Installation & Service Manual
