Item Discontinued, See Replacement: Myers Submersible Sump Pump MS50T20 0.5 HP 115V 20' Cord Automatic

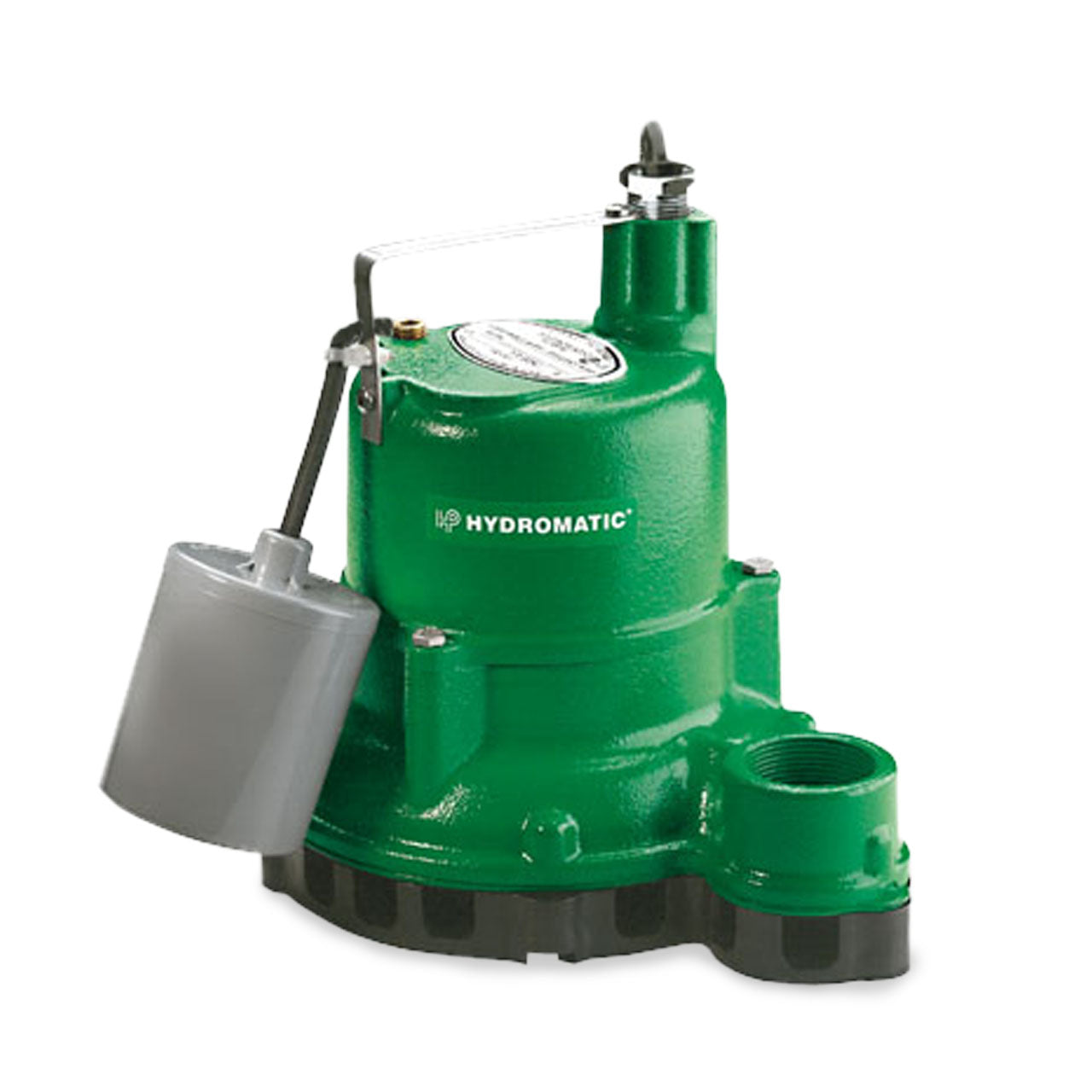

Hydromatic SW50A1 Description

The Hydromatic SW50 submersible pump is specifically designed to meet the demands of residential sump and septic tank effluent applications

Hydromatic SW50 Typical Application

• Basement Sumps
• Dewatering
• Light Effluent
• Industrial Circulators
• Transfer Tanks

Hydromatic SW50 Superior Features

• Carbon/Ceramic mechanical seal
• Oil-filled motor with automatic reset thermal overload
• Uses single-row ball-bearing construction
• Includes wide-angle "piggyback" float switch

Hydromatic SW50A1 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.5 HP
• RPM: 1550
• MAXIMUM HEAD: up to 30'
• MAXIMUM CAPACITY: up to 64 GPM
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• AMP DRAW (full load): 12.0
• CORD LENGTH: 20'; Type SJTW
• VOLTAGE: 1ø, 115V
• MAXIMUM LIQUID TEMPERATURE: 120°F
• MOTOR: Shaded Pole with Thermal Overload, Oil Filled
• IMPELLER CONSTRUCTION: Two Vane Semi-Open,Thermoplastic

Hydromatic SW50 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic SW50 Product Resources

Download Hydromatic SW50 Sales Brochure

Download Hydromatic SW50 Performance Data

Download Hydromatic SW50 Installation & Service Manual
