Item Discontinued, See Similar Replacement: Myers Submersible Sump Pump MS33M20 0.33 HP 115V 20' Cord Manual

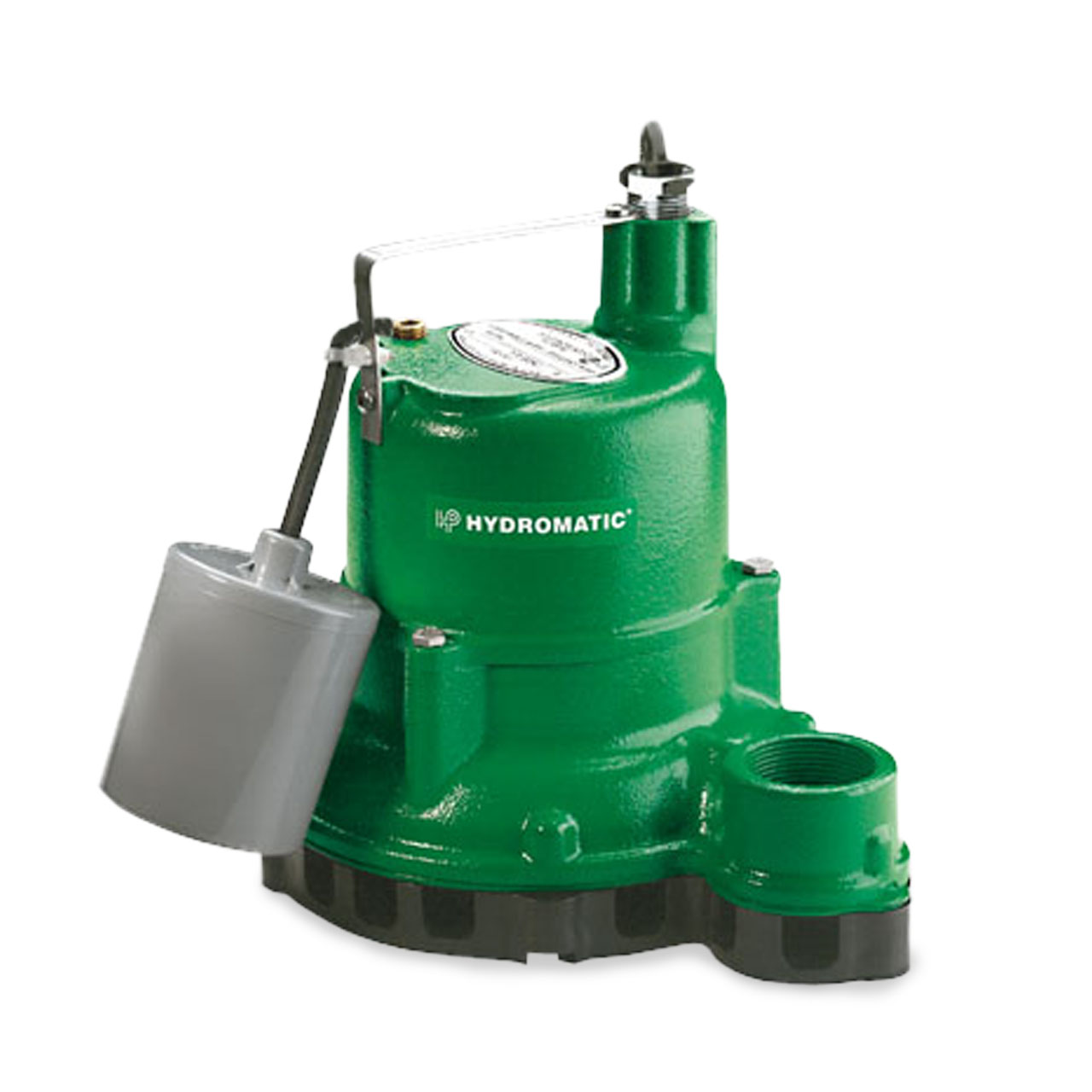

Hydromatic SW33M1 Description

The Hydromatic SW33 submersible pump is specifically designed to meet the demands of residential sump and septic tank effluent applications

Hydromatic SW33 Typical Application

• Basement Sumps
• Dewatering
• Light Effluent
• Industrial Circulators
• Transfer Tanks

Hydromatic SW33 Superior Features

• Carbon/Ceramic mechanical seal
• Oil-filled motor with automatic reset thermal overload
• Uses single-row ball-bearing construction
• Does not include wide-angle "piggyback" float switch

Hydromatic SW33M1 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.33 HP
• RPM: 1550
• MAXIMUM HEAD: up to 26'
• MAXIMUM CAPACITY: up to 48 GPM
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1/2"
• AMP DRAW (full load): 10.0
• CORD LENGTH: 30'; Type SJTW
• VOLTAGE: 1ø, 115V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Shaded Pole with Thermal Overload, Oil Filled
• IMPELLER CONSTRUCTION: Thermoplastic

Hydromatic SW33 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic SW33 Product Resources

Download Hydromatic SW33 Sales Brochure

Download Hydromatic SW33 Performance Data

Download Hydromatic SW33 Installation & Service Manual
