Item Discontinued, See Similar Replacement: Myers SX50H-21PS Simplex Explosion-Proof Pump/Control Package 0.5HP 1 PH 230 V

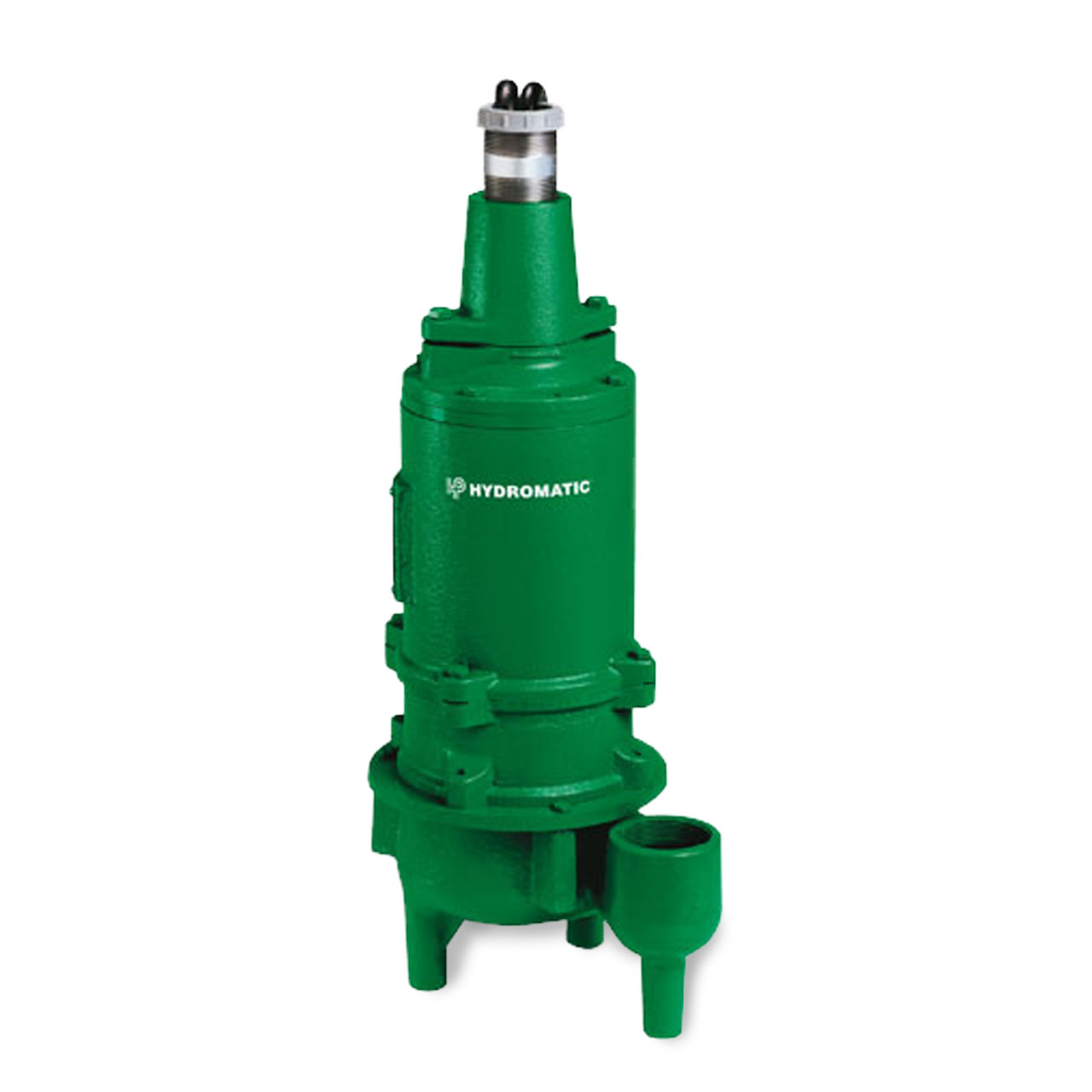

Hydromatic SPX50HM2 Description

Hydromatic SPX50 and SPX50H are specifically designed to pump contaminated effluent and water.The SPX50/SPX50H is UL and CSA approved(Class 1, Division 1, Group D) to handle a wide variety of pollutants, including gas and oil.

Hydromatic SPX50H Typical Application

• Class I, Division I, Group D hazardous locations

Hydromatic SPX50H Superior Features

• Carbon/Ceramic mechanical seal
• Oil-filled motor
• Dual seal design
• Uses upper radial and lower thrust single-row ball-bearing construction
• SPX50/SPX50H is recommended to be sold/used with AFS S2 IR2 HS RO Cap Hydromatic SPX50 Simplex Control Panel

Hydromatic SPX50HM2 Technical Details

• BODY CONSTRUCTION: Cast Iron ASTM-48, 76
• HORSEPOWER: 0.5 HP
• RPM: 1750
• MAXIMUM HEAD: up to 36'
• MAXIMUM CAPACITY: up to 74 GPM
• DISCHARGE PIPE SIZE: 1.5" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• AMP DRAW (full load): 5.3
• CORD LENGTH: 15'; Type SOW/SOW-A | Water Resistant
• VOLTAGE: 1ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Oil Cooled Induction, Capacitor Start
• IMPELLER CONSTRUCTION: Recessed, Cast Iron Class 20 A-48-62

Hydromatic SPX50H Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic SPX50H Product Resources

Download Hydromatic SPX50H Sales Brochure

Download Hydromatic SPX50H Performance Data

Download Hydromatic SPX50H Installation & Service Manual
