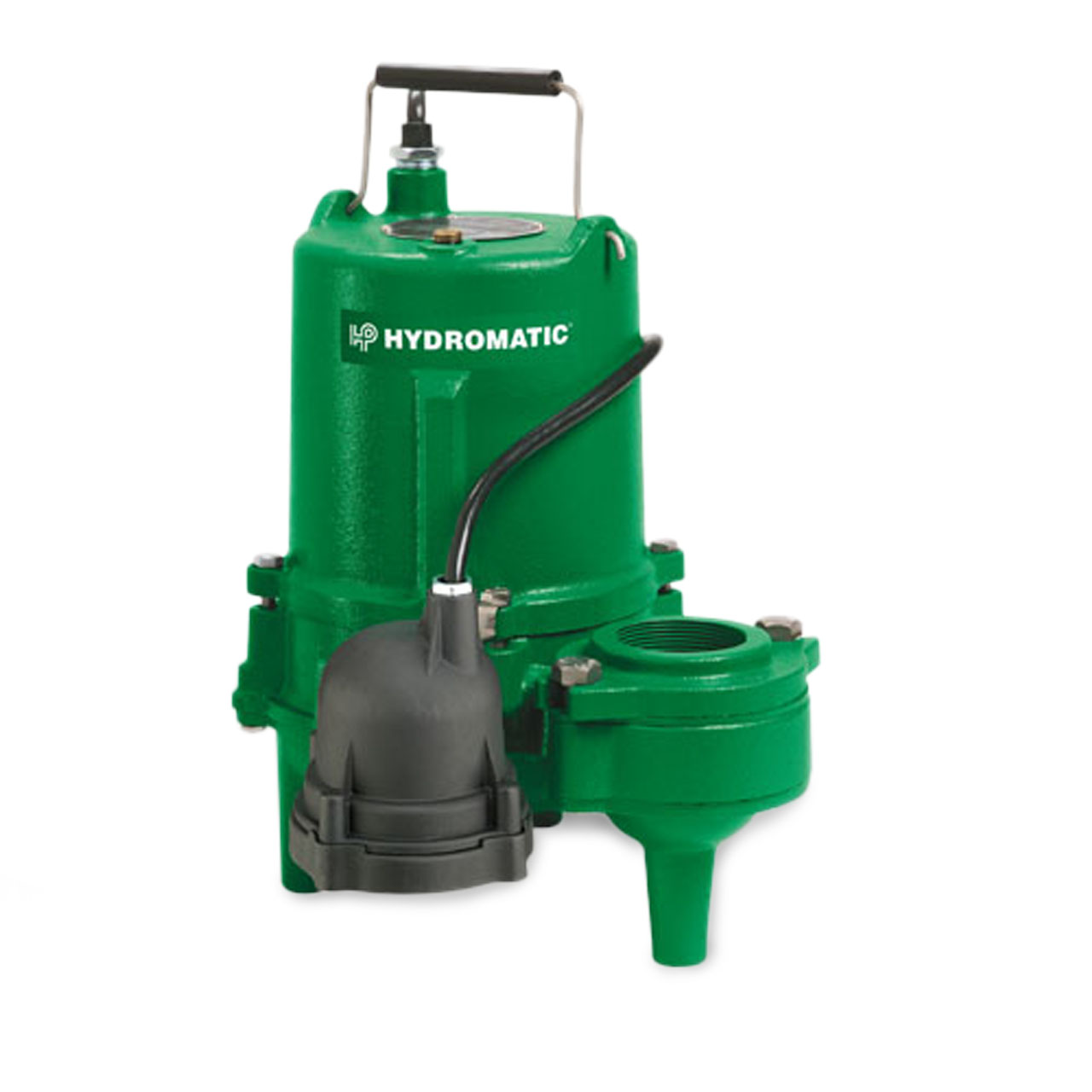

Hydromatic SPD50MH6 Submersible Effluent Pump 0.5 HP 200V 3PH Manual 20' Cord Seal Failure
Hydromatic SPD50MH6 Submersible Effluent Pump 0.5 HP 200V 3PH Manual 20' Cord Seal Failure
SKU : HTC517480517
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Item Discontinued, See Replacement: Myers MESPD50MH6 Submersible Effluent Pump 0.5 HP 200V 3PH Manual 20' Cord Seal Failure
Hydromatic SPD50 Description
Specifically designed to meet the demands of septic tank effluent applications that require a "high-head" dual seal pump
Hydromatic SPD50 Typical Application
- Septic Tank Effluent
- High-Head Dewatering
- High-Capacity Sump
Hydromatic SPD50 Superior Features
- Two (2) carbon/ceramic type 21 mechanical seals mounted in tandem
- Oil-filled motor w/automatic reset thermal overload for maximum protection (single phase models only)
- Upper & lower ball bearing construction
- Seal failure sensor for early warning of seal failure issues
- Capacitor start for increased starting torque (single phase models only)
- Does not include "piggyback" diaphragm switch
Specifications
Specifications
Hydromatic SPD50MH6 Technical Details
- BODY CONSTRUCTION: Class 30 Cast Iron
- HORSEPOWER: 0.5 HP
- RPM: 3450
- MAXIMUM HEAD: up to 50'
- MAXIMUM CAPACITY: up to 110 GPM
- DISCHARGE PIPE SIZE: 2" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- AMP DRAW (full load): 3.6
- CORD LENGTH: 20'
- VOLTAGE: 3ø, 200V
- MAXIMUM LIQUID TEMPERATURE: 140°F
- MOTOR: Oil Filled with Automatic Reset Overload
- IMPELLER CONSTRUCTION: Class 30 Cast Iron, Two-Vane Nonclog
Hydromatic SPD50 Pump Curve
