Item Discontinued, See Replacement: Myers MESPD100AH2 Submersible Effluent Pump 1 HP 230V 1PH Automatic 20' Cord

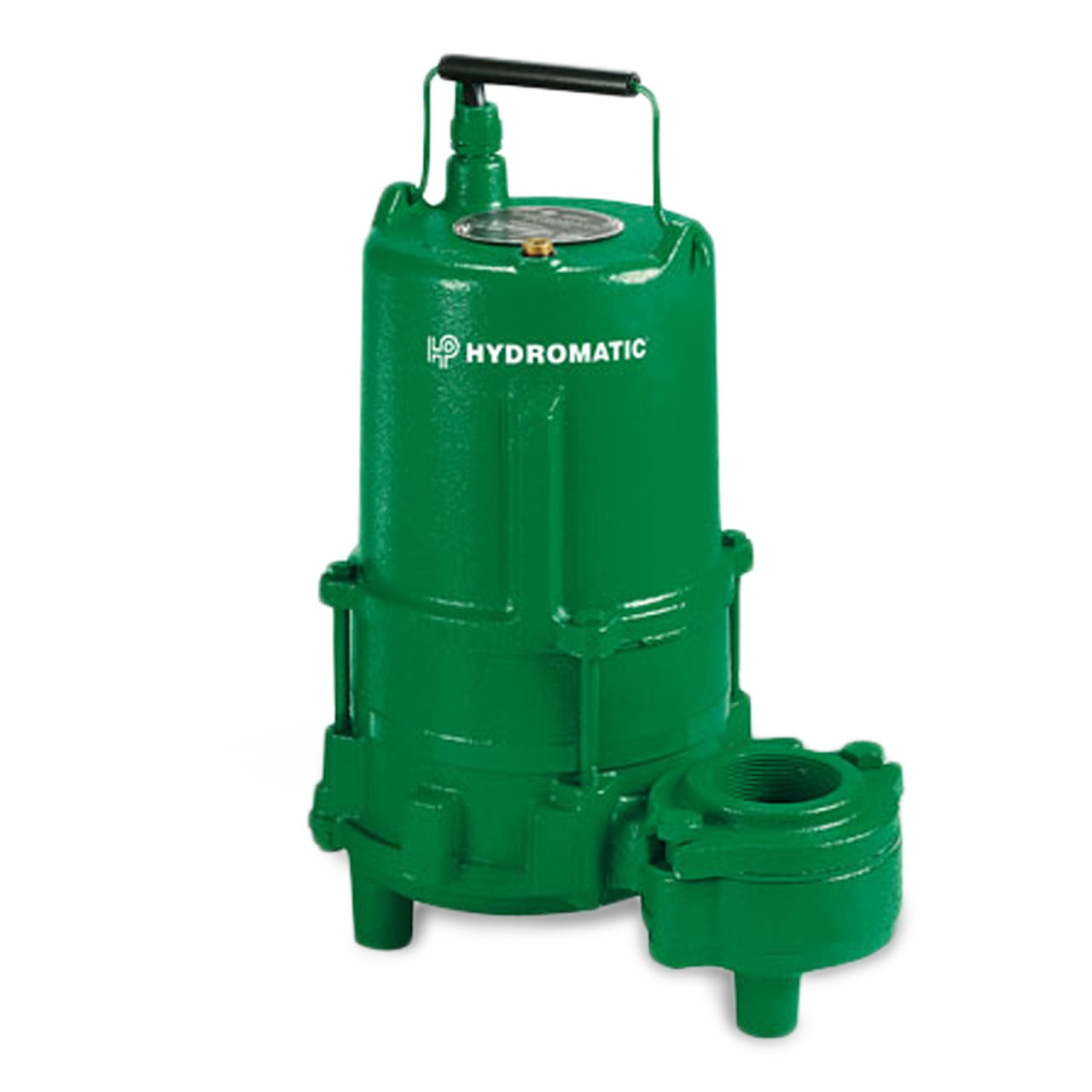

Hydromatic SPD100AH2 Description

Specifically designed to meed the demands of septic tank effluent applications that require a "high-head" dual seal pump.

Hydromatic SPD100AH2 Typical Application

• Septic Tank Effluent
• High-Head Dewatering
• High-Capacity Sump

Hydromatic SPD100 Superior Features

• Two (2) carbon/ceramic type 21 mechanical seals mounted in tandem
• Oil-filled motor w/automatic reset thermal overload for maximum protection (single phase models only)
• Upper & lower ball bearing construction
• Capacitor start for increased starting torque (single phase models only)

Hydromatic SPD100AH2 Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER:1.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 64'
• MAXIMUM CAPACITY: up to 142 GPM
• DISCHARGE PIPE SIZE: 2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• AMP DRAW (full load): 9.9
• CORD LENGTH: 20'
• VOLTAGE: 1ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Oil Filled with Automatic Reset Overload
• IMPELLER CONSTRUCTION: Class 30 Cast Iron, Two-Vane Nonclog

Hydromatic SPD100 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic SPD100 Product Resources

Download Hydromatic SPD50 & SPD100 Sales Brochure

Download Hydromatic SPD50 & SPD100 Performance Data

Download Hydromatic SPD50 & SPD100 Installation & Service Manual
