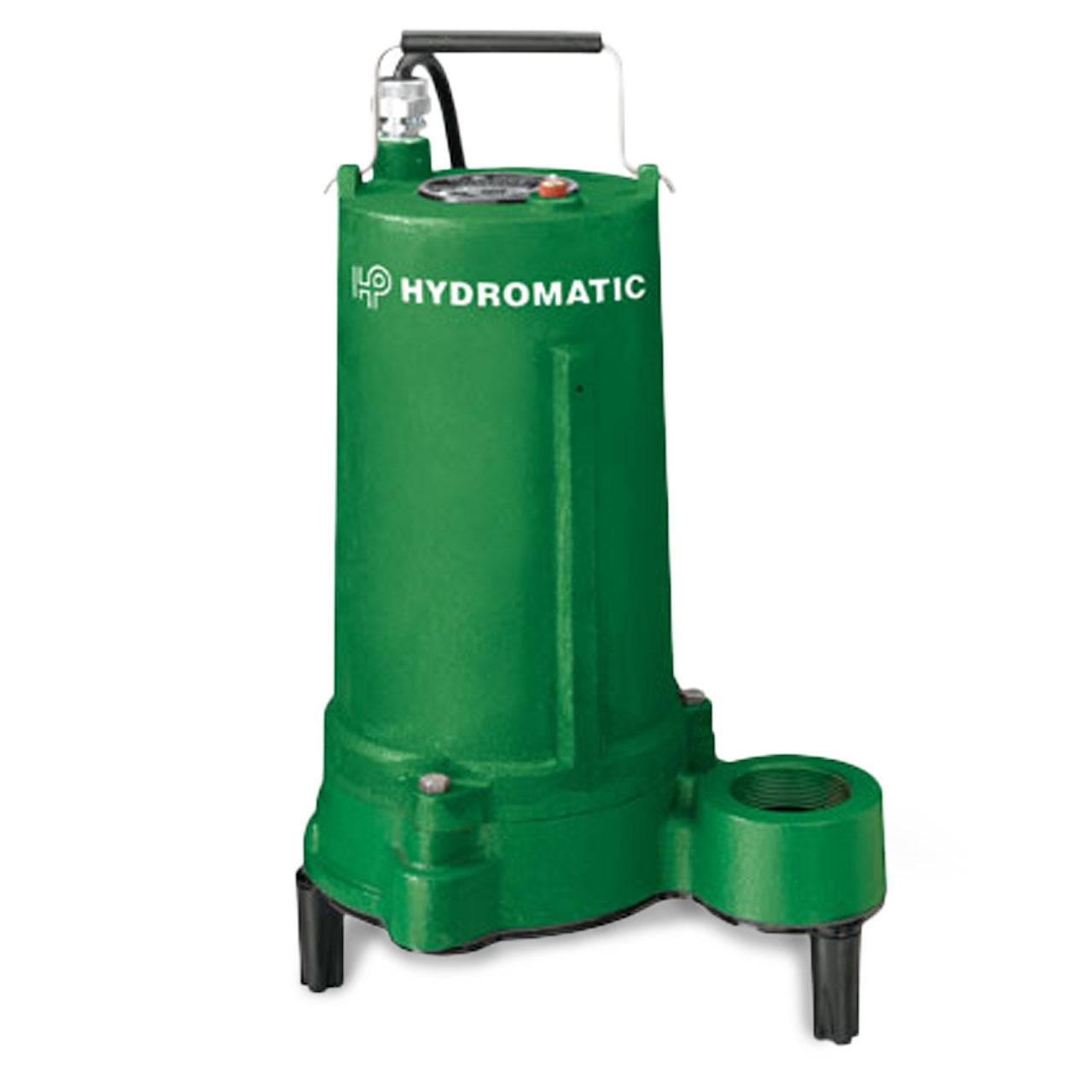

Hydromatic SHEF50A1 Submersible Effluent Pump 0.5 HP 115V 1PH Automatic 20' Cord
Hydromatic SHEF50A1 Submersible Effluent Pump 0.5 HP 115V 1PH Automatic 20' Cord
SKU : HTC518670087
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Item Discontinued, See Replacement: Myers MES50A1 Submersible Effluent Pump 0.5 HP 115V 1PH Automatic 20' Cord
Hydromatic SHEF50 Description
The Hydromatic SHEF50 submersible pump is specifically designed to meet the demands of residential septic tank effluent or sump applications.
Hydromatic SHEF50 Typical Application
- Septic Tank Effluent
- Dewatering
- High Head Sump
Hydromatic SHEF50 Superior Features
- Carbon/Ceramic mechanical seal
- Oil-filled motor
- Uses upper radial and lower thrust single-row ball-bearing construction
- Includes wide-angle "piggyback" float switch
PDF Downloads
SHEF50 & SHEF100 Sales Brochure
SHEF50 & SHEF100 Performance Data
Not sure which pump to choose?
Pump Selection Tool
Specifications
Specifications
Hydromatic SHEF50A1 Technical Details
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.5 HP
- RPM: 3450
- MAXIMUM HEAD: up to 63 ft.
- MAXIMUM CAPACITY: up to 63 GPM
- DISCHARGE PIPE SIZE: 2" NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3/4"
- AMP DRAW (full load): 14.5
- CORD LENGTH: 20'; Type SJTW / STW-A
- VOLTAGE: 1ø, 115V
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- MOTOR: Thermal Overload with Automatic Reset
- IMPELLER CONSTRUCTION: Engineered Thermoplastic
- BODY CONSTRUCTION: Cast Iron
Hydromatic SHEF50 & SHEF100 Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hydromatic SHEF50 & SHEF100 Product Resources
Download Hydromatic SHEF50 & SHEF100 Sales Brochure
Download Hydromatic SHEF50 & SHEF100 Performance Data
Download Hydromatic SHEF50 & SHEF100 Installation & Service Manual
