Item Discontinued, See Replacement: Myers MES100M2 Submersible Effluent Pump 1 HP 230V 1PH Manual 30' Cord

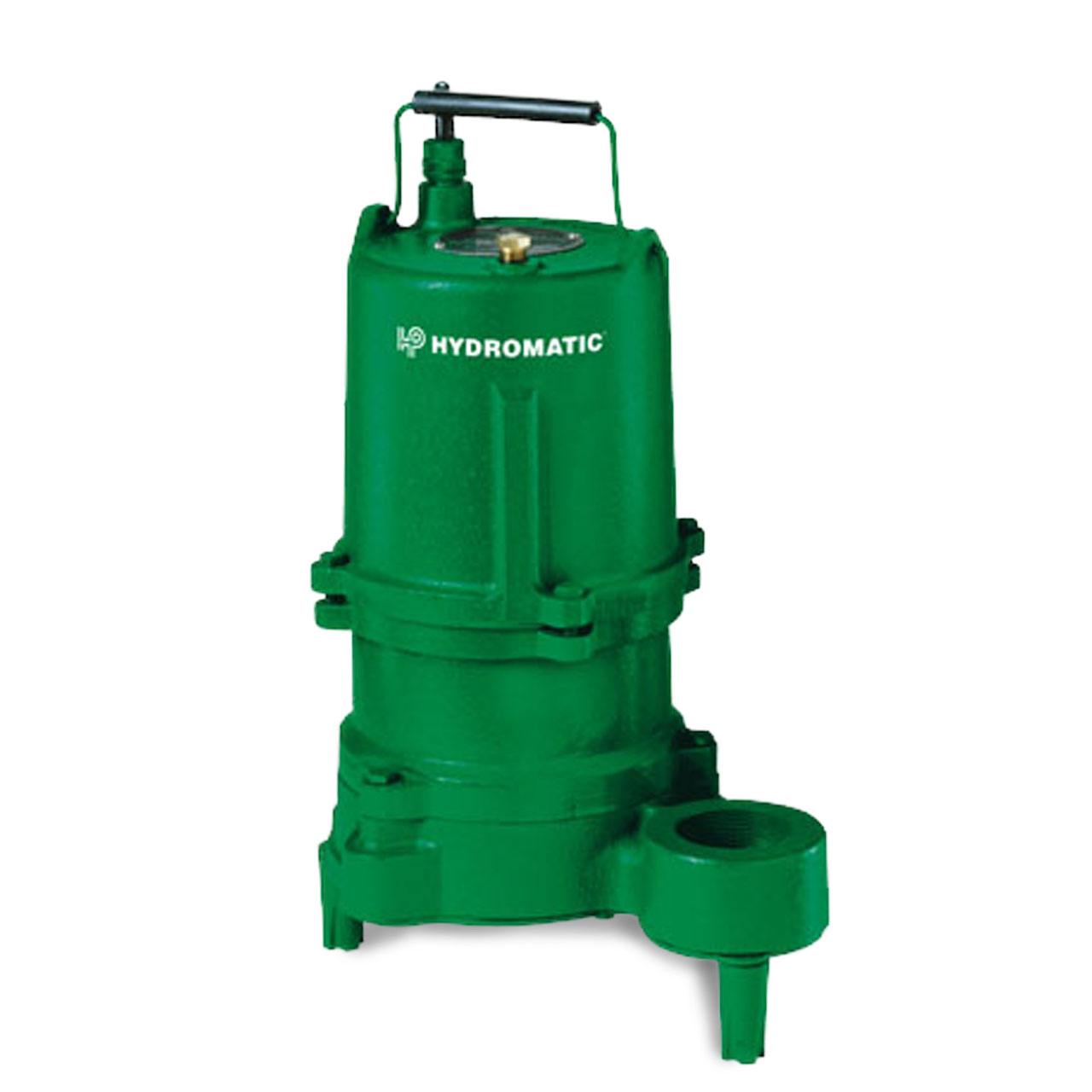

Hydromatic SHEF100M2 Description

The Hydromatic SHEF100 submersible pump is specifically designed to meet the demands of residential septic tank effluent or sump applications.

Hydromatic SHEF100M2 Typical Application

• Septic Tank Effluent
• Dewatering
• High Head Sump

Hydromatic SHEF100 Superior Features

• Carbon/Ceramic mechanical seal
• Oil-filled motor with automatic reset thermal overload
• Uses upper and lower ball-bearing construction
• Piggyback plug available for easy maintenance and switch replacement

Hydromatic SHEF100M2 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 1.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 90 ft.
• MAXIMUM CAPACITY: up to 87 GPM
• DISCHARGE PIPE SIZE: 2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 3/4"
• AMP DRAW (full load): 12.1
• CORD LENGTH: 30'; Type SJTW / STW-A
• VOLTAGE: 1ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• MOTOR: Thermal Overload with Automatic Reset
• IMPELLER CONSTRUCTION: Engineered Thermoplastic

Hydromatic SHEF50 & SHEF100 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic SHEF50 & SHEF100 Product Resources

Download Hydromatic SHEF50 & SHEF100 Sales Brochure

Download Hydromatic SHEF50 & SHEF100 Performance Data

Download Hydromatic SHEF50 & SHEF100 Installation & Service Manual
