Hydromatic SB4SD300M2-4 Submersible Sewage Pump 3 HP 230V 1PH Manual 35' Cord
Hydromatic SB4SD300M2-4 Submersible Sewage Pump 3 HP 230V 1PH Manual 35' Cord
SKU : HTC51849-251-7
In Stock Quantity:0
:
Brand
:
Regular price
$7,280.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.

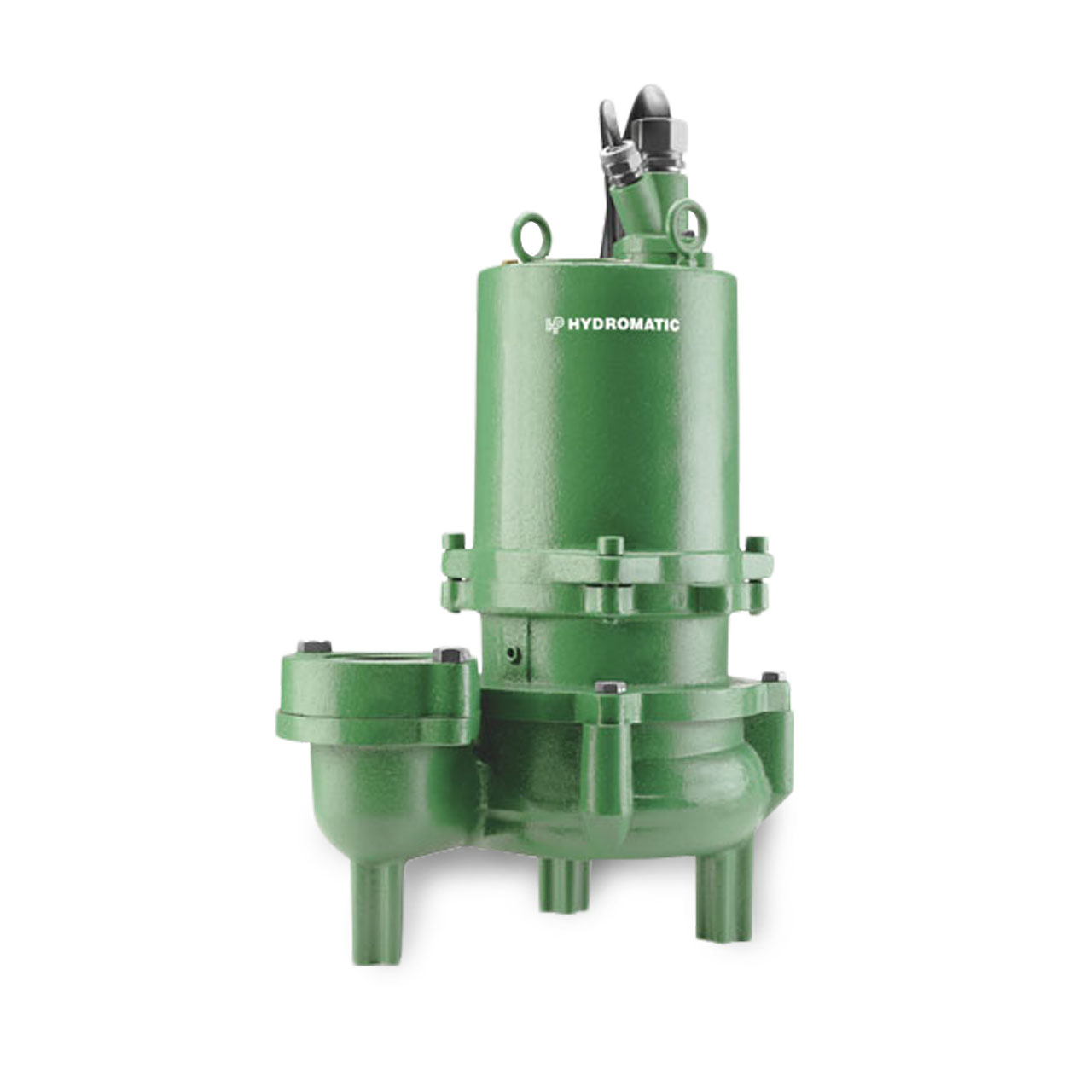

Hydromatic SB4SD300M2-4 Submersible Sewage Pump Description
The Hydromatic SB4SD sewage pumps are designed to transfer raw sewage with solids as large as 3".
Hydromatic SB4SD Typical Application
- Municipal Sewage Lift Stations
- Industrial Sewage Transfer
- Dewatering of Storm Water
Hydromatic SB4SD Superior Features
- Dual mechanical seal is constructed with a ceramic stationary face and a carbon rotating face for long service life
- Fully enclosed oil-filled motor efficiently dissipates heat and locks out moisture so you receive reliable pumping service
- Impeller is a two-vane semi-open design for efficient operation without clogging; the impeller has pump-out vanes to prevent material buildup around
- Stainless steel shaft eliminates corrosion and fatigue to give longer pump life; the minimum shaft overhang decreases deflection and increases seal life
- Field serviceable; pumps have 300 series stainless steel fasteners for easy tear down
- 400 series stainless steel shafts
- All units given complete hydraulic test run before shipping
Specifications
Specifications
Hydromatic SB4SD300M2-4 Technical Details
- BODY CONSTRUCTION: Class 30 Cast Iron; ASTM A48
- HORSEPOWER: 3.0 HP
- RPM: 1750
- MAXIMUM HEAD: up to 58 ft.
- MAXIMUM CAPACITY: up to 580 GPM
- SWITCH TYPE: Control Panel Required
- MINIMUM SUMP DIAMETER: Duplex = 48" ( 1219.2 mm)
- DISCHARGE PIPE SIZE: 4" (101.6 mm) NPT
- MAXIMUM SOLIDS HANDLING SIZE: 3.0" (76.2 mm)
- CORD LENGTH: 35' Standard
- CORD SIZE: 10-4; Type: SOOW, W
- AMP DRAW (full load): 17.1
- VOLTAGE: 1ø, 230V, 60Hz
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- MOTOR: Enclosed, Oil Cooled Induction
- IMPELLER CONSTRUCTION: Balanced, Semi Open, 2 Vane, Ductile Iron; Class 65; ASTM A536
- Section 100
Hydromatic SB4SD Pump Curve
