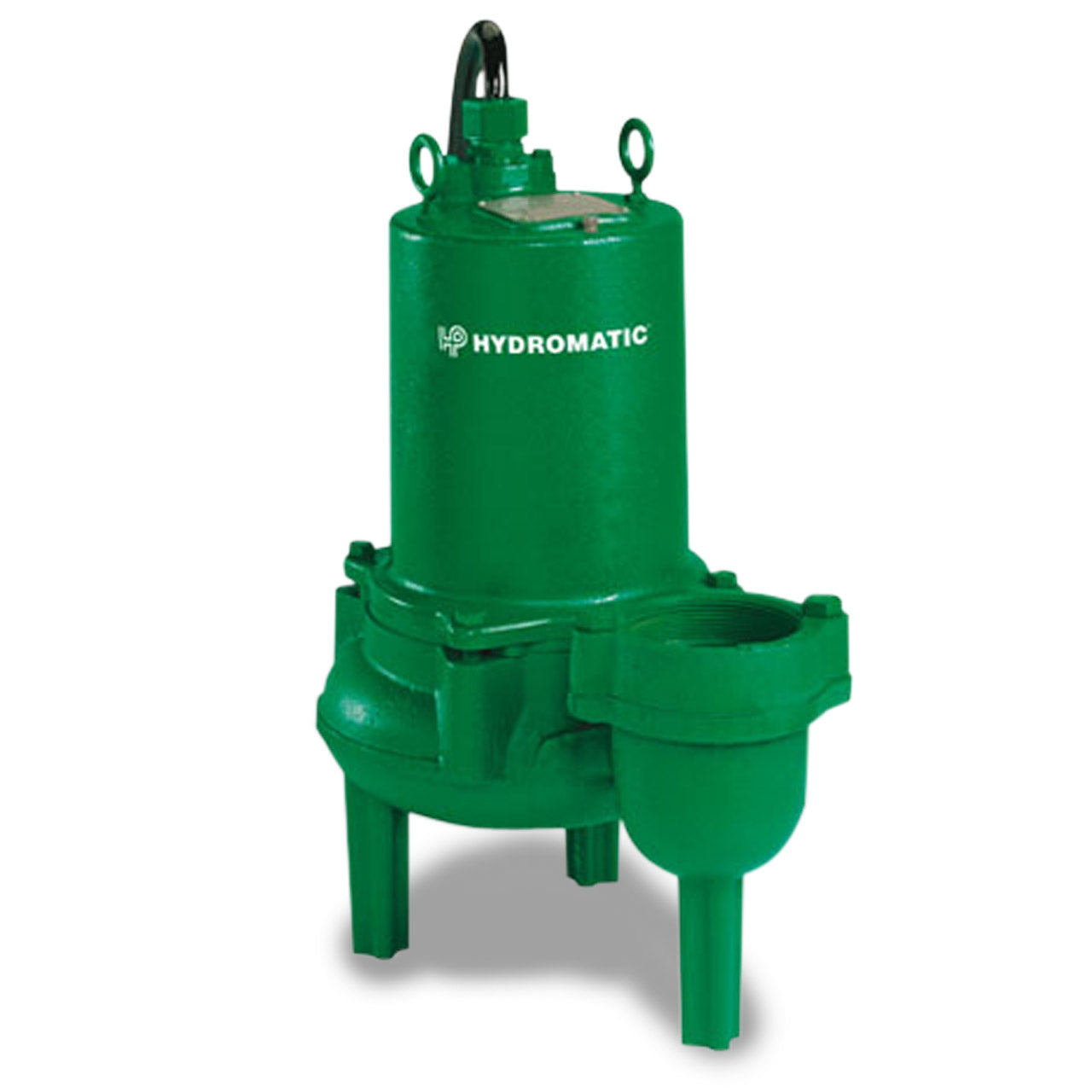

Hydromatic SB4S750M3-4 Submersible Sewage Pumps Description

Hydromatic SB4S Submersible Sewage pumps are suited to wet-well installation in a wide variety of municipal, industrial and building trades applications.

Hydromatic SB4S Typical Application

• Municipal Sewage Lift Stations
• Industrial Sewage Transfer
• Dewatering of Storm Water

Hydromatic SB4S Superior Features

• Oil-filled motor for cooler operation, longer life, and less maintenance. The dielectric oil effectively dissipates heat and lubricates upper and lower ball bearings.
• Standard construction is cast iron.
• 300 Series stainless steel shafts.
• 35' power cord has three conductor PVC jacket.
• Field serviceable; pumps have 300 series stainless steel fasteners for easy tear down.
• Semi-open, two-vane sewage type impellers have pump-out vanes on back shrouds to prevent stringy materials from building up around shaft and seal.
• Manufactured with carbon and ceramic faced mechanical shaft seal for long leak proof life.
• All units given complete hydraulic test run before shipping.

Hydromatic SB4S750M3-4 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 7.5 HP
• RPM: 1750
• MAXIMUM HEAD: up to 35'
• MAXIMUM CAPACITY: up to 800 GPM
• DISCHARGE PIPE SIZE: 4" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 3"
• CORD LENGTH: 35' Power Cord
• CORD SIZE: 8-4; Type: SOOW, W
• AMP DRAW (full load): 25.2
• VOLTAGE: 3ø, 230V
• MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
• IMPELLER CONSTRUCTION: Nonclogging, Two-Vane, Semi-Open Cast Iron
• Section 100

Hydromatic SB4S Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic SB4S Product Resources

Download Hydromatic SB4S Sales Brochure

Download Hydromatic SB4S Electrical Data

Download Hydromatic SB4S Technical Data

Download Hydromatic SB4S Performance Data

Download Hydromatic SB4S Installation & Service Manual

Download Hydromatic SB4S Specification Data
