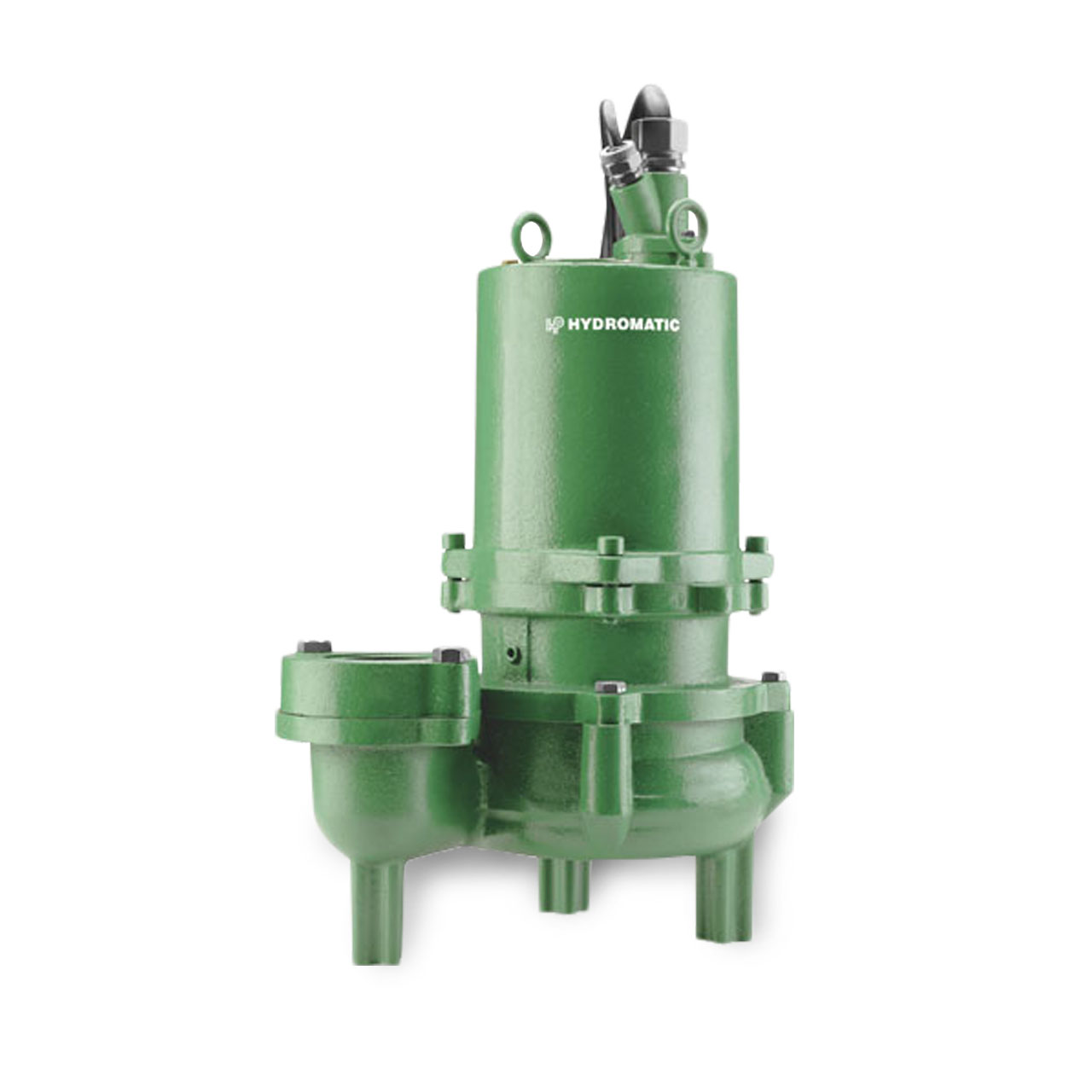

Hydromatic SB3SD300M3-4 Sumbersible Sewage Pump Description

The Hydromatic SB3SD Sumbersible Sewage Pumps are designed to transfer raw sewage with solids as large as 2½".

Hydromatic SB3SD Typical Application

• Municipal sewage lift stations
• Industrial sewage transfer
• Dewatering of storm water

Hydromatic SB3SD Superior Features

• Oil-filled motor for cooler operation, longer life, and less maintenance. The dielectric oil effectively dissipates heat and lubricates upper and lower ball bearings.
• Upper and lower ball bearings.
• Dual mechanical seal.
• The start and run capacitors are located in the control panel for single phase motors.
• Standard construction is cast iron.
• 400 series stainless steel shafts.
• Standard 35' power cord has three conductor PVC jacket.
• Field serviceable; pumps have 300 series stainless steel fasteners for easy tear down.
• Semi-open, two-vane sewage type impellers have pump-out vanes on back shrouds to prevent stringy materials from building up around shaft and seal.
• Manufactured with carbon and ceramic faced mechanical shaft seal for long leak proof life.
• All units given complete hydraulic test run before shipping.

Hydromatic SB3SD300M3-4 Technical Details

• BODY CONSTRUCTION: Class 30 cast iron; ASTM A-48
• HORSEPOWER: 3.0 HP
• RPM: 1750
• MAXIMUM HEAD: up to 35 ft.
• MAXIMUM CAPACITY: up to 400 GPM
• SWITCH TYPE: Control panel required
• MINIMUM SUMP DIAMETER: Simplex = 30" (762 mm)
• DISCHARGE PIPE SIZE: 3" (76.2 mm) NPT
• MAXIMUM SOLIDS HANDLING SIZE: 2.5" (63.5 mm)
• CORD LENGTH: 35' Standard
• OPTIONAL CORD LENGTH: 50'
• CORD SIZE: 14-4; Type: SOOW, W
• AMP DRAW (full load): 9.5
• VOLTAGE: 3ø, 230V, 60Hz
• MAXIMUM WATER TEMPERATURE: 140°F (60°C)
• MOTOR: Enclosed, oil cooled induction
• IMPELLER CONSTRUCTION: Ductile iron; ASTM 536

Hydromatic SB3SD Pump Curve
