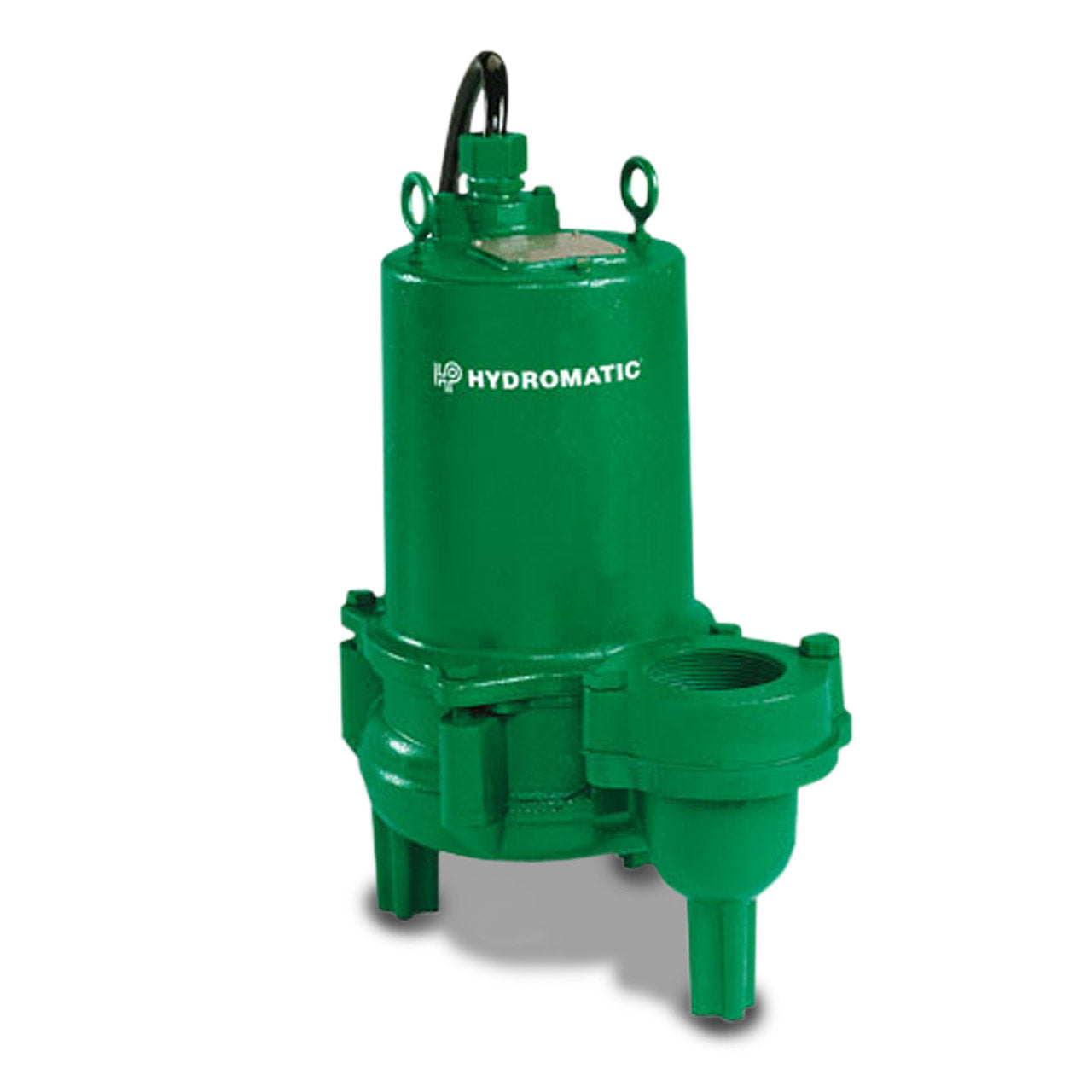

Hydromatic SB3S200M6-4 Submersible Sewage Pump 2.0 HP 200V 3PH Manual 35' Cord
Hydromatic SB3S200M6-4 Submersible Sewage Pump 2.0 HP 200V 3PH Manual 35' Cord
SKU : HTC518471037
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Hydromatic SB3S200M6-4 Submersible Sewage Pumps Description
Hydromatic SB3S Submersible Sewage pumps are suited to wet-well installation in a wide variety of municipal, industrial and building trades applications.
Hydromatic SB3S Typical Application
- Municipal Sewage Lift Stations
- Industrial Sewage Transfer
- Dewatering of Storm Water
Hydromatic SB3S Superior Features
- Oil-filled motor for cooler operation, longer life, and less maintenance. The dielectric oil effectively dissipates heat and lubricates upper and lower ball bearings.
- Standard construction is cast iron.
- 300 Series stainless steel shafts.
- 35' power cord has three conductor PVC jacket.
- Field serviceable; pumps have 300 series stainless steel fasteners for easy tear down.
- Semi-open, two-vane sewage type impellers have pump-out vanes on back shrouds to prevent stringy materials from building up around shaft and seal.
- Manufactured with carbon and ceramic faced mechanical shaft seal for long leak proof life.
- All units given complete hydraulic test run before shipping.
Specifications
Specifications
Hydromatic SB3S200M6-4 Technical Details
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 2.0 HP
- RPM: 1750
- MAXIMUM HEAD: up to 40'
- MAXIMUM CAPACITY: up to 325 GPM
- DISCHARGE PIPE SIZE: 3" NPT Vertical Discharge
- MAXIMUM SOLIDS HANDLING SIZE: 2-1/2"
- CORD LENGTH: 35' Power Cord
- CORD SIZE: 14-4; Type: SOOW, W
- AMP DRAW (full load): 7.8
- VOLTAGE: 3ø, 200V
- MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
- IMPELLER CONSTRUCTION: Nonclogging, Two-Vane, Semi-Open Cast Iron
- Section 100
Hydromatic SB3S Pump Curve
