Discontinued - Hydromatic Pump

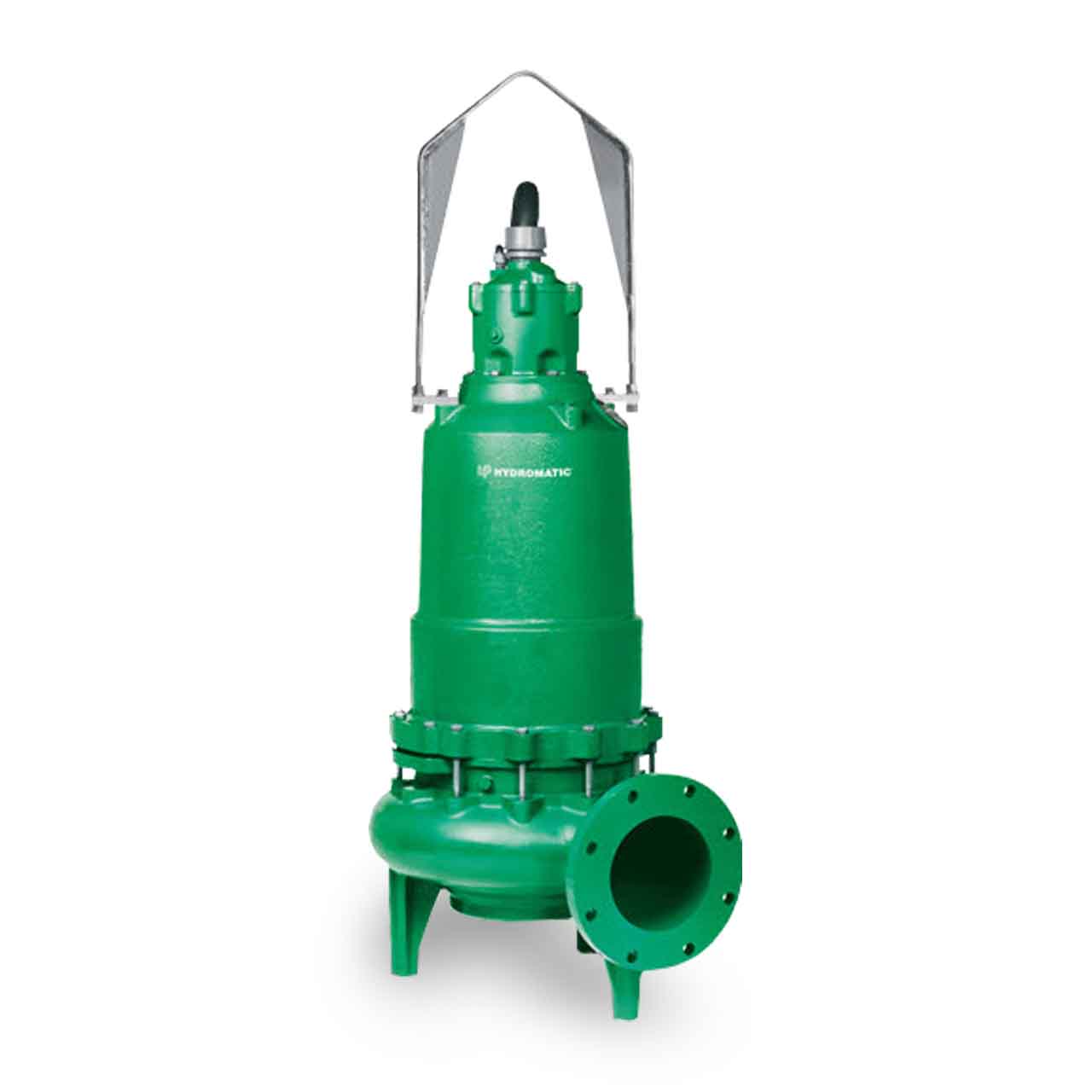

Hydromatic S8L Submersible Solids Handling Pumps Description

Hydromatic S8L Submersible Solids Handling Pumps is designed to meet the demands of Municipal, Commercial and Industrial Areas.

Hydromatic S8L Typical Application

• Municipal
• Commercial
• Industrial

Hydromatic S8L Submersible Solids Handling Pumps Features

• Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
• Standard construction is cast iron.
• Stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases bearing and seal life. Tapered shaft allows for easy removal of impeller.
• Available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
• The connection box has two epoxy barriers and a compression fitting that prevent water contamination of the motor area, assuring long-term reliable operation. In addition, epoxy encapsulation and stripped leads positively eliminate "wicking" from the cable
• Heavy duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
• Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.

Hydromatic S8L2500M3-8 Specifications

• VOLTAGE: 3ø, 230/460V 60Hz
• HORSEPOWER: 25 HP
• AMP DRAW (full load): 78.0
• MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
• RPM: 870
• MAXIMUM HEAD: up to 35'
• MAXIMUM CAPACITY: up to 3300 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 8" Horizontal Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 4.0"
• IMPELLER TYPE: Balanced, Enclosed, 2 Vane, Cast Iron, ASTM A48, Class 30
• IMPELLER DIAMETER: 15"
• CORD LENGTH: 35' Standard
• CORD SIZE: 4-4; Type: SOOW/W
• OPTIONAL CORD LENGTH: 50'
• BODY CONSTRUCTION: Class 30 Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F

Hydromatic S8L Pump Curve
