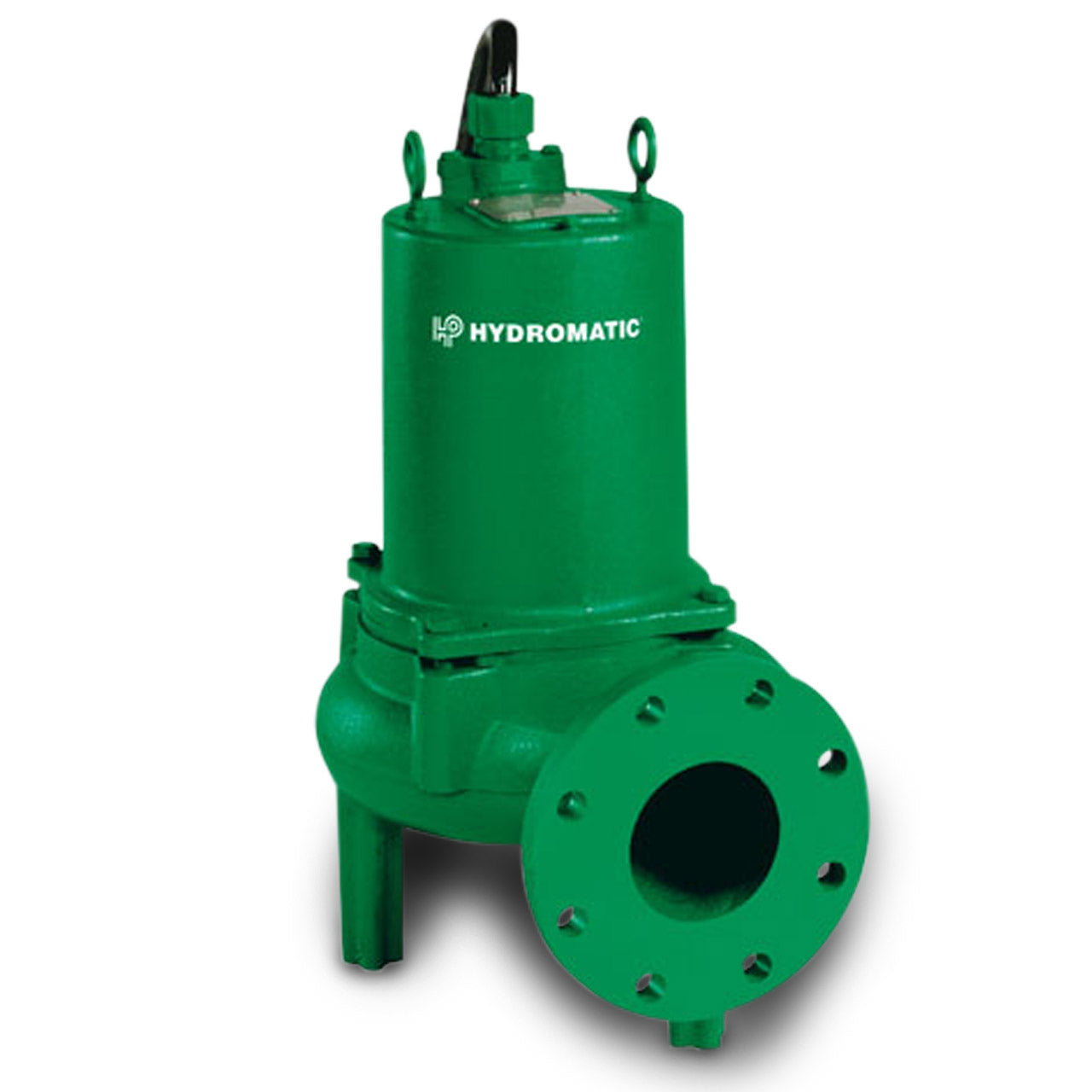

Hydromatic S4S750M5 Submersible Sewage Pump 7.5 HP 575V 3PH Manual 35' Cord
Hydromatic S4S750M5 Submersible Sewage Pump 7.5 HP 575V 3PH Manual 35' Cord
SKU : HTC518510077
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Hydromatic S4S Description
Hydromatic S3S-S4S & SB3S-SB4S series pumps are suited to wet-well installation in a wide variety of municipal, industrial and building trades applications.
Hydromatic S4S Superior Features
- Oil-filled motor for cooler operation, longer life, and less maintenance. The dielectric oil effectively dissipates heat and lubricates upper and lower ball bearings.
- Single phase motors are capacitor start, capacitor run with capacitors located in control panel. Contact distributor for proper Hydromatic control panel sizing.
- Standard construction is cast iron.
- 300 Series stainless steel shafts.
- Standard 15' or 35' power cord has three conductor PVC jacket.
- Field serviceable; pumps have 300 series stainless steel fasteners for easy tear down.
- Semi-open, two-vane sewage type impellers have pump-out vanes on back shrouds to prevent stringy materials from building up around shaft and seal.
- Manufactured with carbon and ceramic faced mechanical shaft seal for long leak proof life.
- All units given complete hydraulic test run before shipping.
Hydromatic S4S Typical Application
- Municipal sewage lift stations
- Industrial sewage transfer
- Dewatering of storm water
Specifications
Specifications
Hydromatic S4S Technical Details
- Pump switch not included
- Pumping capacity up to 620 GPM
- Heads up to 60'
- 3.0 - 7.5 HP
- 230 Volt, 1 phase electrical available (external start components required in control panel)
- 200-230, 460, 575 Volt, 3 phase electrical available
- 1750 RPM
- Cast iron motor housing and pump casing construction
- Cast iron impeller
- 4" NPT and flanged discharge
- 3" Solids Handling
- 15-35' power cord std.
Hydromatic S4S Pump Curve
