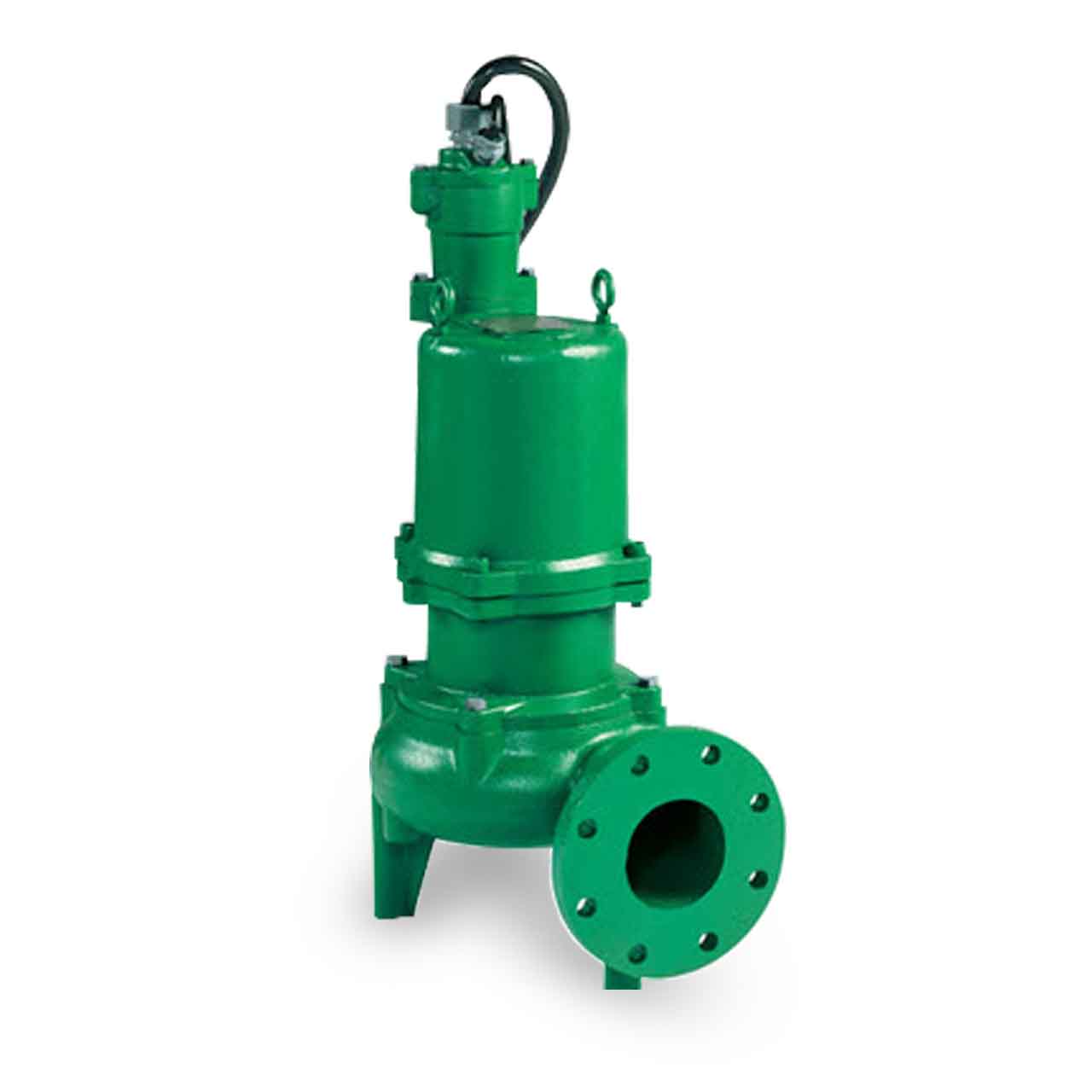

Hydromatic S4NRC750M3-4 Submersible Solids Handling Pump 7.5 HP 230/460V 3PH Manual 35' Cord
Hydromatic S4NRC750M3-4 Submersible Solids Handling Pump 7.5 HP 230/460V 3PH Manual 35' Cord
SKU : HTC514241667
In Stock Quantity:0
:
Brand
:
Regular price
$9,256.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Hydromatic S4NRC/S4NVX Submersible Solids Handling Pumps Description
Hydromatic S4NRC/S4NVX Submersible Solids Handling Pumps is designed to meet the demands of Municipal, Commercial and Industrial Areas.
Hydromatic S4NRC/S4NVX Submersible Solids Handling Pumps Typical Application
- Municipal
- Commercial
- Industrial
Hydromatic S4NRC/S4NVX Submersible Solids Handling Pumps Features
- Recessed Impeller Design has Completely Open Passage in Volute.
- Pumping Action is by Vortex; Reduces Solids Getting Caught in the Impeller Volute.
- Operates without Vibration or Cavitation over Entire Performance Curve.
- Recessed Impeller Greatly Increases Bearing Life by Reducing Radial Load.
- Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication.
- Heat Sensor Thermostats Embedded in Windings Protect Motor from Overheat Conditions.
- Seal Leak Probes Warn of Moisture Entry; Help Prevent Costly Motor Burnout.
Specifications
Specifications
Hydromatic S4NRC750M3-4 Specifications
- VOLTAGE: 3ø, 230/460V 60Hz
- HORSEPOWER: 7.5 HP
- AMP DRAW (full load): 25.2
- MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
- RPM: 1750
- MAXIMUM HEAD: up to 38'
- MAXIMUM CAPACITY: up to 600 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4" 125# Flange Discharge
- MAXIMUM SOLIDS HANDLING SIZE: 3.0"
- IMPELLER TYPE: Balanced, Recessed, 8 Vane, , Semi-Open Vortex, Ductile Iron, ASTM A536
- IMPELLER DIAMETER: 8.0"
- CORD LENGTH: 35' Standard
- CORD SIZE: 8-4; Type: SOOW/W
- OPTIONAL CORD LENGTH: 50'
- BODY CONSTRUCTION: Class 30 Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F
Hydromatic S4NRC/S4NVX Submersible Solids Handling Pumps Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hydromatic S4NRC/S4NVX Submersible Solids Handling Pumps Product Resources
Download Hydromatic S4NRC Sales Brochure
Download Hydromatic S4NRC Electrical Data
Download Hydromatic S4NRC Technical Data
Download Hydromatic S4NRC Performance Curve
Download Hydromatic S4NRC Installation & Service Manual
