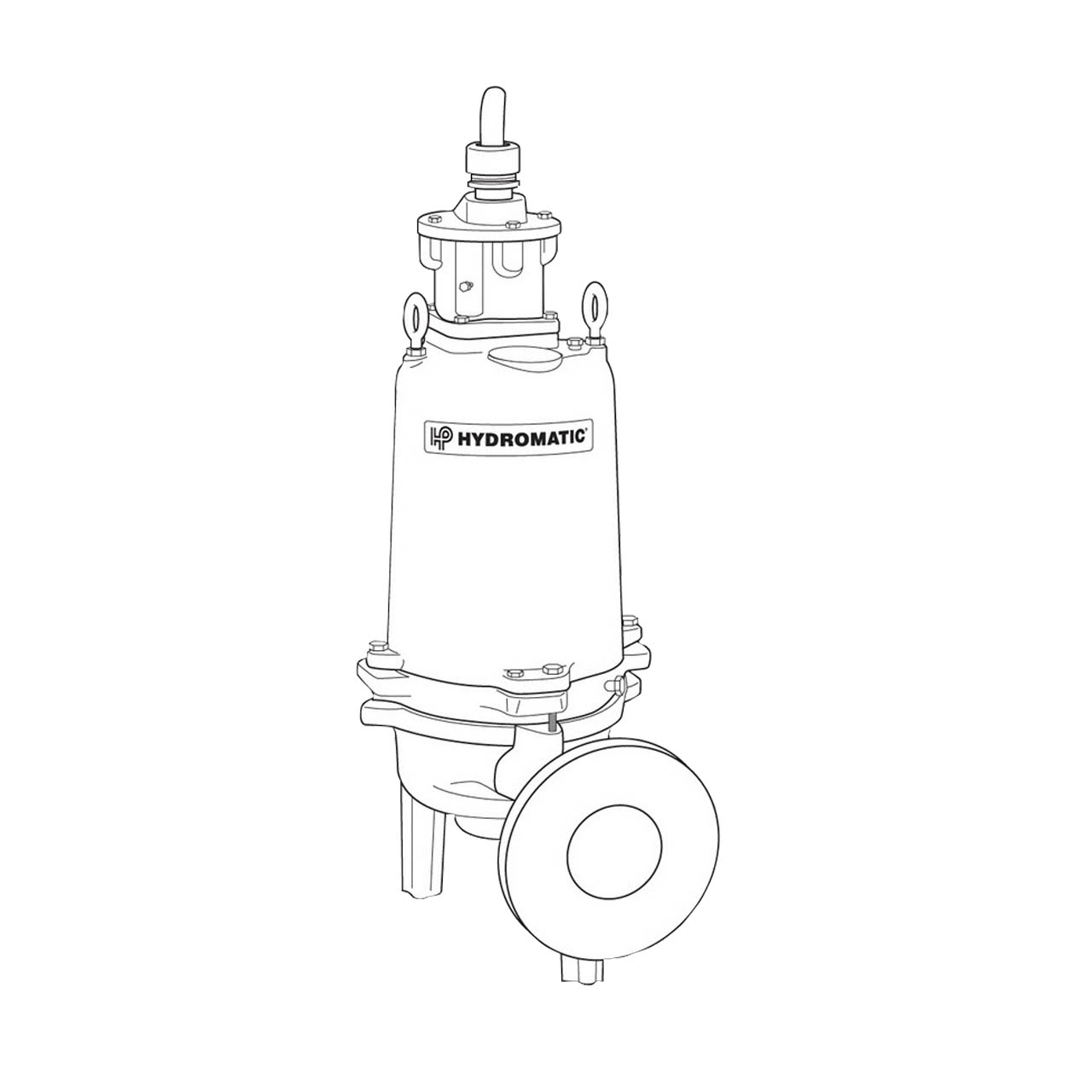

Hydromatic S4HRC750M3-2 Submersible Solids Handling Pump 7.5 HP 230/460V 3PH Manual 35' Cord

Hydromatic S4HRC750M3-2 Submersible Solids Handling Pump 7.5 HP 230/460V 3PH Manual 35' Cord

Usually ships within 5 weeks

SKU : HTC514730487

In Stock Quantity:0

:
Brand : Hydromatic Pump
$12,216.00 USD
Shipping calculated at checkout.

Description

Hydromatic Pump Logo

Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.

Hydromatic S4HRC Submersible Solids Handling Pumps Description

Hydromatic S4HRC Submersible Solids Handling Pumps is designed to meet the demands of Municipal, Commercial and Industrial Areas.

Hydromatic S4HRC Typical Application

  • Municipal
  • Commercial
  • Industrial

Hydromatic S4HRC Submersible Solids Handling Pumps Features

  • Recessed Impeller Design has Completely Open Passage in Volute.
  • Pumping Action is Vortex; Reduces Solids getting Caught in the Impeller Volute.
  • Operates without Vibration or Cavitation over Entire Performance Curve.
  • Recessed Impeller Greatly Increases Bearing Life by Reducing Radial Load.
  • Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication.
  • Heat Sensor Thermostats Embedded in Windings Protect Motor from Overheat Conditions.
  • Seal Leak Probes Warn of Moisture Entry; Help Prevent Costly Motor Burnout.

Specifications

Hydromatic S4HRC750M3-2 Specifications

  • VOLTAGE: 3ø, 230/460V 60Hz
  • HORSEPOWER: 7.5 HP
  • AMP DRAW (full load): 25.7
  • MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
  • RPM: 3450
  • MAXIMUM HEAD: up to 98'
  • MAXIMUM CAPACITY: up to 420 GPM
  • SWITCH TYPE: Manual
  • DISCHARGE PIPE SIZE: 4" 125# Flange Discharge
  • MAXIMUM SOLIDS HANDLING SIZE: 3.0"
  • IMPELLER TYPE: Balanced, Recessed, 8 Vane, Semi-Open Vortex, Cast Iron, ASTM A48, Class 30
  • IMPELLER DIAMETER: 4.63"
  • CORD LENGTH: 35' Standard
  • CORD SIZE: 14-4; Type: SOOW/W
  • OPTIONAL CORD LENGTH: 50'
  • BODY CONSTRUCTION: Class 30 Cast Iron
  • MAXIMUM LIQUID TEMPERATURE: 140°F

Hydromatic S4HRC Pump Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hydromatic S4HRC Product Resources


Download Hydromatic S4HRC Sales Brochure

Download Hydromatic S4HRC Electrical Data

Download Hydromatic S4HRC Technical Data

Download Hydromatic S4HRC Performance Curve

Download Hydromatic S4HRC Installation & Service Manual

Download Hydromatic S4HRC Dimensional Data

Download Hydromatic S4HRC Specification Data
