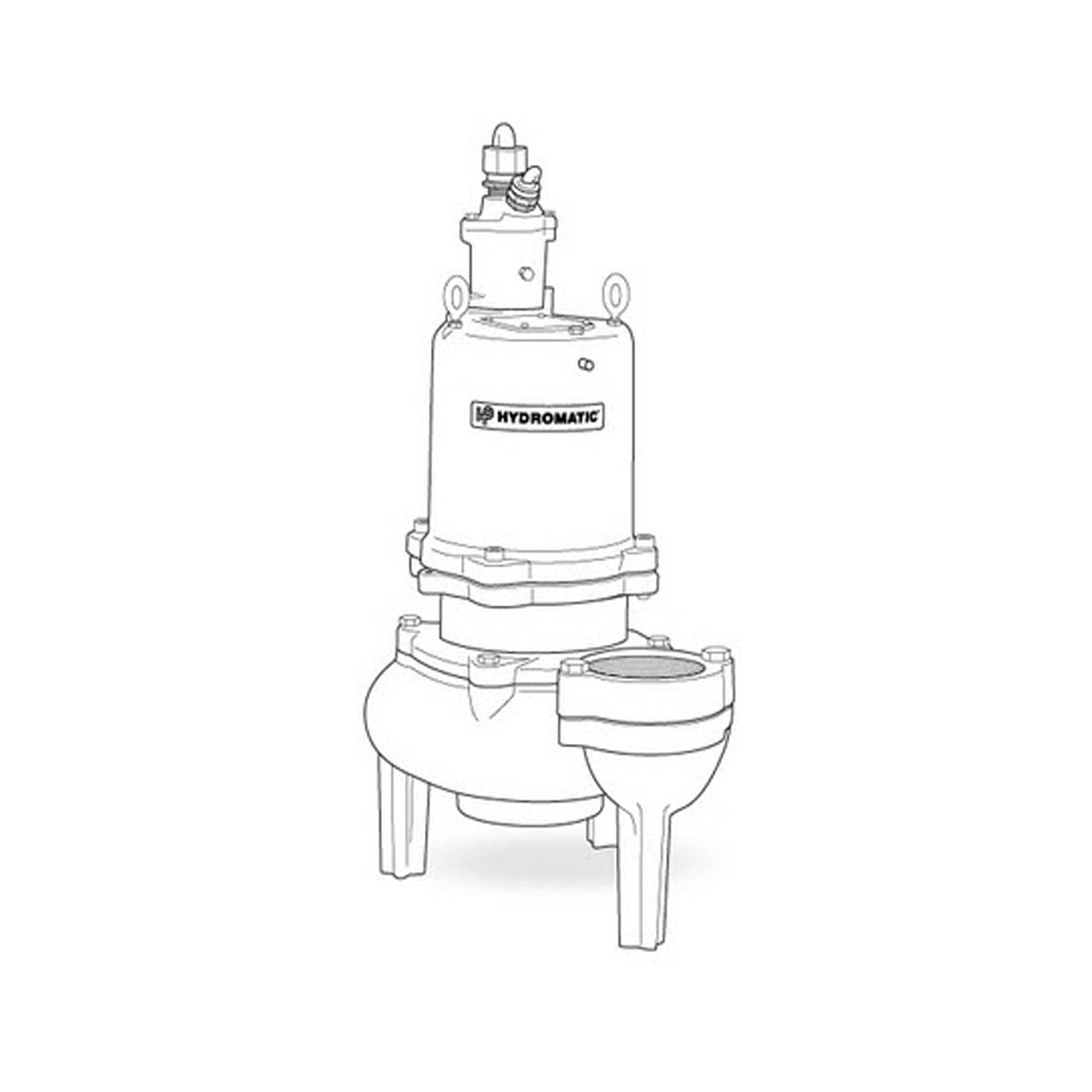

Hydromatic S4H300M2-4 Submersible Solids Handling Pump 3.0 HP 230V 1PH Manual 35' Cord
Hydromatic S4H300M2-4 Submersible Solids Handling Pump 3.0 HP 230V 1PH Manual 35' Cord
SKU : HTC527750157
In Stock Quantity:0
:
Brand
:
Regular price
$8,304.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Hydromatic S4H Submersible Solids Handling Pumps Description
Hydromatic S4H Submersible Solids Handling Pumps is designed to meet the demands of Municipal, Commercial and Industrial Areas.
Hydromatic S4H Typical Application
- Municipal
- Commercial
- Industrial
Hydromatic S4H Superior Features
- Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
- Standard construction is cast iron.
- Stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases bearing and seal life. Tapered shaft allows for easy removal of impeller.
- Available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
- The connection box has two epoxy barriers and a compression fitting that prevent water contamination of the motor area, assuring long-term reliable operation. In addition, epoxy encapsulation and stripped leads positively eliminate "wicking" from the cable
- Heavy duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
- Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.
Hydromatic S4H Key Features
- 4" Discharge Submersible Solids Handling
- Oil Filled Motors - Cooler operating than air filled motors and continuous lubrication of the bearings for longer life
- Slip Fit Stators - For easy of service
- Seal Cord Entrance - Triple seal protection, prevents moisture entry for longer life
Specifications
Specifications
Hydromatic S4H300M2-4 Technical Details
- BODY CONSTRUCTION: Class 30 Cast Iron
- HORSEPOWER: 3.0 HP
- RPM: 1750
- MAXIMUM HEAD: up to 47'
- MAXIMUM CAPACITY: up to 475 GPM
- DISCHARGE PIPE SIZE: 4" Vertical Discharge
- MAXIMUM SOLIDS HANDLING SIZE: 3"
- CORD LENGTH: 35' Standard
- OPTIONAL CORD LENGTH: 50'
- CORD SIZE: 10-4; Type: SOOW/W
- AMP DRAW (full load): 17.1
- VOLTAGE: 1ø, 230V
- MAXIMUM LIQUID TEMPERATURE: 140°F
- MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
- IMPELLER CONSTRUCTION: Balanced, Enclosed, 2 Vane, Ductile Iron, ASTM A536
- IMPELLER SIZE: 6.25"
- Section 300
Hydromatic S4H Pump Curve
