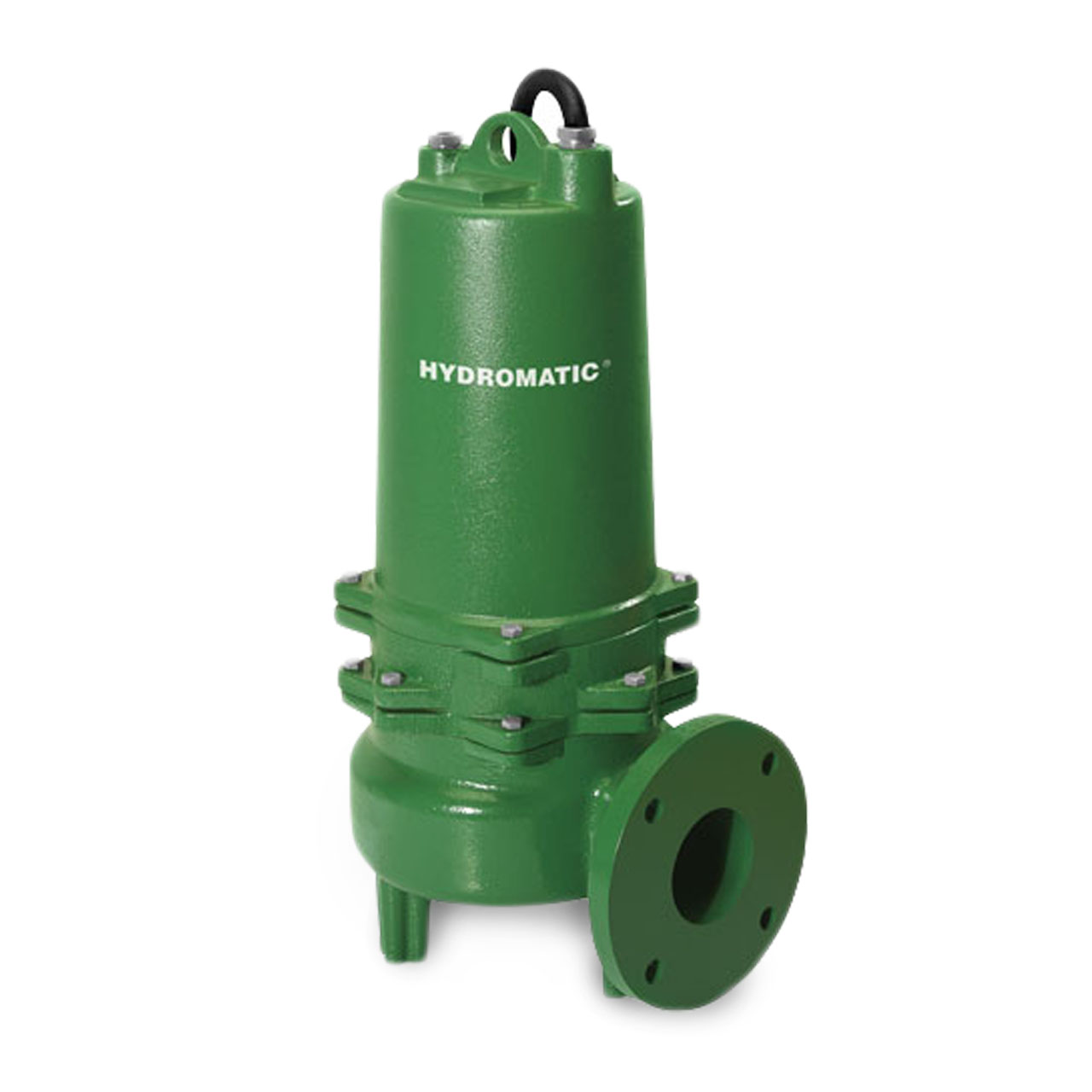

Hydromatic S3WRD300M6-4 Submersible Wastewater Vortex Pumps Description

Strong cast iron vortex pump designed for residential raw sewage and light commercial applications.

Hydromatic S3WRD Typical Application

• Residential Raw Sewage
• Light Commercial Applications

Hydromatic S3WRD Superior Features

• Recessed impeller design has completely open passage in volute
• Operates without vibration or cavitation over entire performance curve; operates near shutoff without harming pump.
• Recessed impeller greatly increases bearing life by reducing radial load
• Oil-filled motor for maximum heat dissipation and constant bearing lubrication
• Heat sensor thermostats embedded in windings protect motor from overheat conditions
• Seal leak probes warn of moisture entry

Hydromatic S3WRD300M6-4 Specifications

• BODY CONSTRUCTION: Class 30 Cast Iron; ASTM A48
• HORSEPOWER: 3.0 HP
• RPM: 1750
• MAXIMUM HEAD: up to 36 ft.
• MAXIMUM CAPACITY: up to 280 GPM
• SWITCH TYPE: Control Panel Required
• MINIMUM SUMP DIAMETER: Duplex = 48" (1219.2 mm)
• DISCHARGE PIPE SIZE: 3" (76.2 mm) Flanged Horizontal
• MAXIMUM SOLIDS HANDLING SIZE: 2.5" (63.5 mm)
• CORD LENGTH: 20' Standard
• CORD SIZE: 14-4; Type: SOOW
• START AMPS: 45.0 RUN AMPS: 15.0
• VOLTAGE: 3ø, 208V, 60Hz
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• MOTOR: Enclosed, Oil Cooled Induction
• IMPELLER CONSTRUCTION: Ductile Iron; Class 65; ASTM A536

Hydromatic S3WRD Pump Curve
