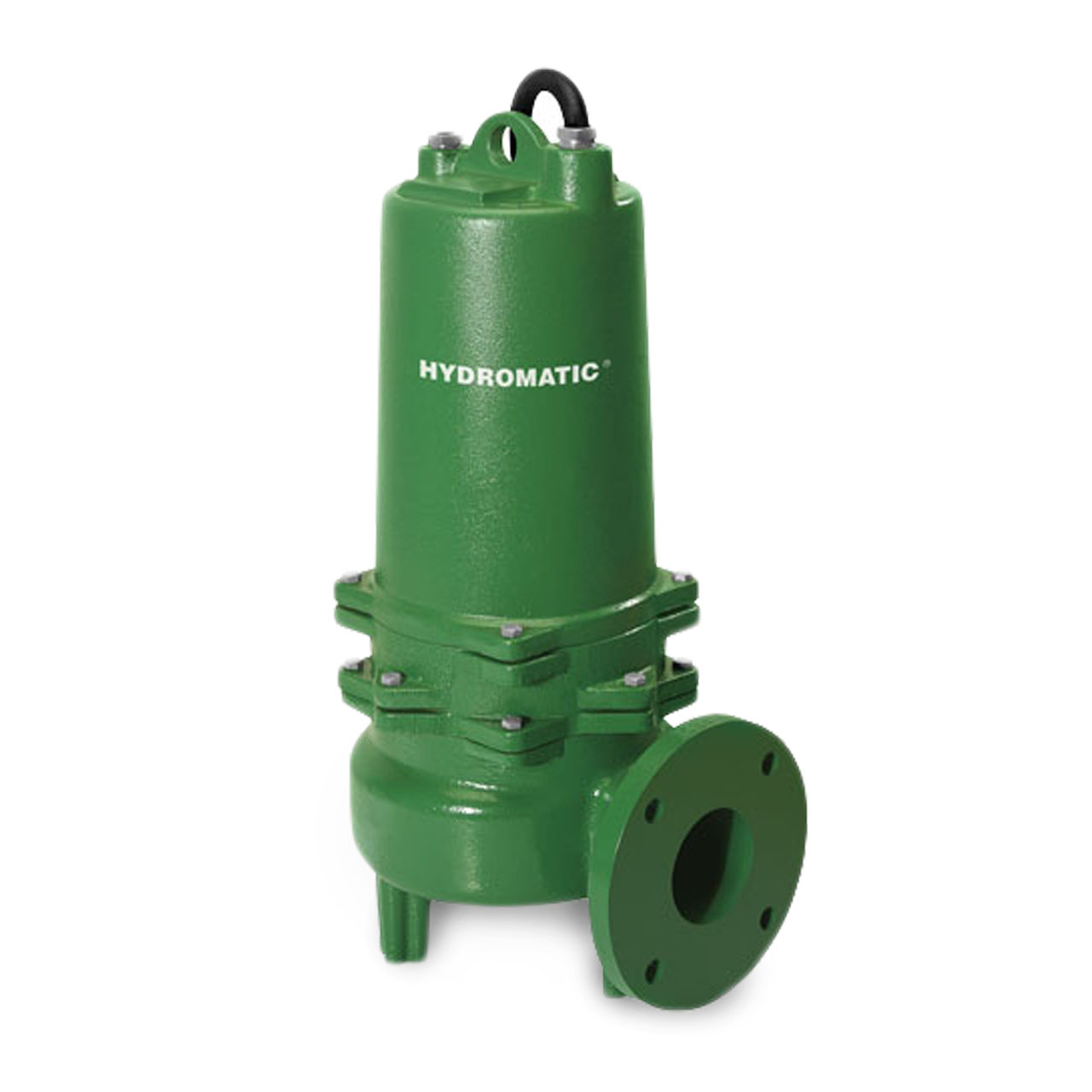

Hydromatic S3WR200M4-4 Submersible Sewage Pump 2 HP 460V 3PH Manual 20' Cord
Hydromatic S3WR200M4-4 Submersible Sewage Pump 2 HP 460V 3PH Manual 20' Cord
SKU : HTC52798E014
In Stock Quantity:0
:
Brand
:
Regular price
$2,872.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Hydromatic S3WR200M4-4 Submersible Wastewater Vortex Pumps Description
Strong Cast Iron vortex pump designed for residential raw sewage and light commercial applications.
Hydromatic S3WR Typical Application
- Residential Raw Sewage
- Light Commercial Applications
Hydromatic S3WR Superior Features
- Recessed impeller design has completely open passage in volute
- Operates without vibration or cavitation over entire performance curve; operates near shutoff without harming pump.
- Recessed impeller greatly increases bearing life by reducing radial load
- Oil-filled motor for maximum heat dissipation and constant bearing lubrication
- Heat sensor thermostats embedded in windings protect motor from overheat conditions
Specifications
Specifications
Hydromatic S3WR200M4-4 Specifications
- BODY CONSTRUCTION: Class 30 Cast Iron; ASTM A48
- HORSEPOWER: 2.0 HP
- MAXIMUM HEAD: up to 31 ft.
- MAXIMUM CAPACITY: up to 245 GPM
- SWITCH TYPE: Control Panel Required
- MINIMUM SUMP DIAMETER: Duplex = 48" (1219.2 mm)
- DISCHARGE PIPE SIZE: 3" (76.2 mm) Flanged Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 2.5" (63.5 mm)
- CORD LENGTH: 20' Standard
- CORD SIZE: 16-4; Type: SOOW
- START AMPS: 24.0 RUN AMPS: 6.0
- VOLTAGE: 3ø, 460V, 60Hz;
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- MOTOR: Enclosed, Oil Cooled Induction
- IMPELLER CONSTRUCTION: Ductile Iron; Class 65; ASTM A536
- Section 300
Hydromatic S3WR Pump Curve
