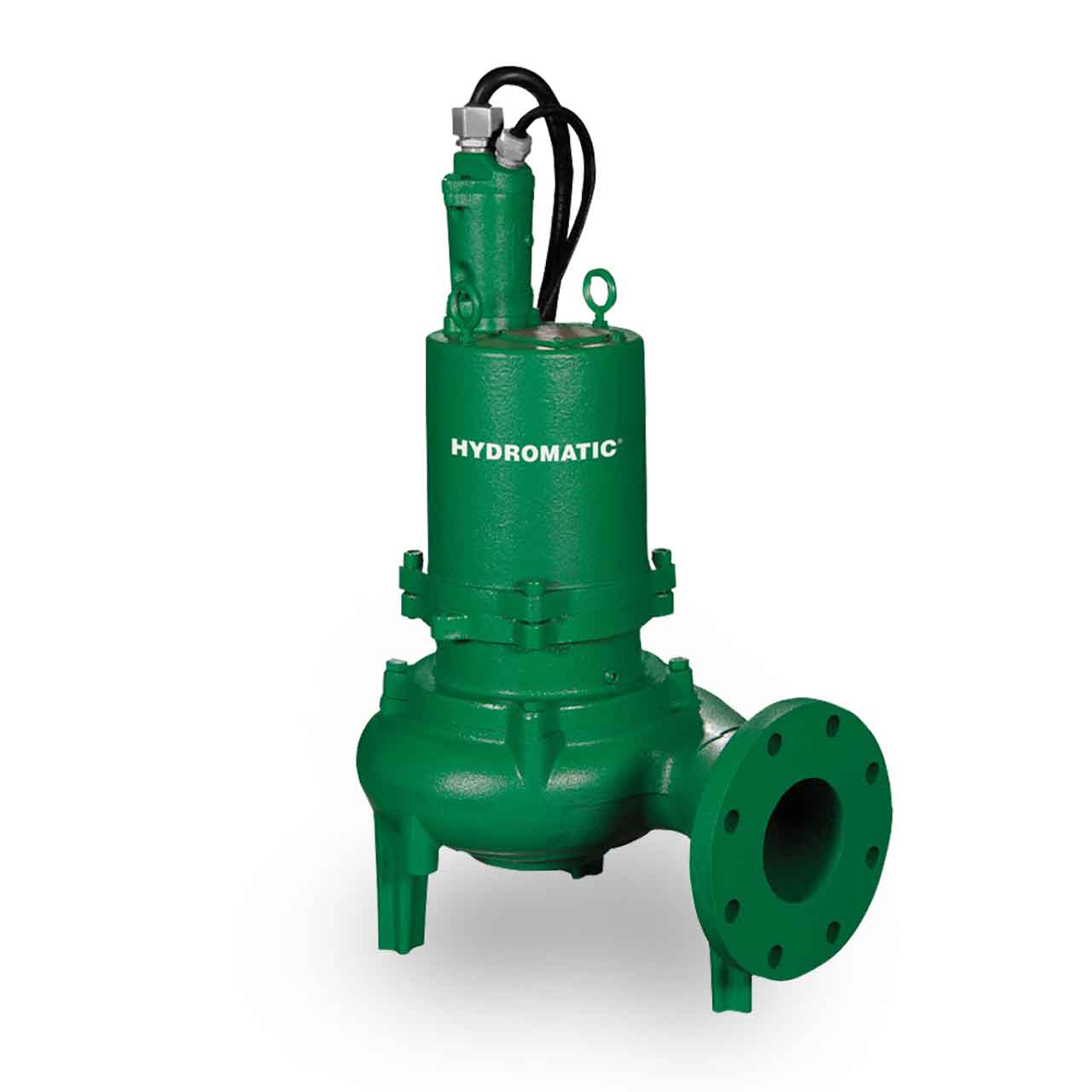

Hydromatic S3NX200DB Explosion Proof Submersible Solids Handling Pump 2.0 HP 200V 3PH Manual 35' Cord
Hydromatic S3NX200DB Explosion Proof Submersible Solids Handling Pump 2.0 HP 200V 3PH Manual 35' Cord
SKU : HTC527810817
In Stock Quantity:0
:
Brand
:
Regular price
$7,848.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Hydromatic S3NX Description
Hydromatic S3NX Submersible Solids Handling Pumps is designed to meet the demands of Municipal, Commercial and Industrial Areas.
Hydromatic S3NX Typical Application
- Municipal
- Commercial
- Industrial
Hydromatic S3NX Superior Features
- Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
- Standard construction is cast iron.
- Stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases bearing and seal life. Tapered shaft allows for easy removal of impeller.
- Available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
- The connection box has two epoxy barriers and a compression fitting that prevent water contamination of the motor area, assuring long-term reliable operation. In addition, epoxy encapsulation and stripped leads postitively eliminate "wicking" from the cable
- Heavy duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
- Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.
Specifications
Specifications
Hydromatic S3NX200DB Technical Details
- EXPLOSION PROOF
- BODY CONSTRUCTION: Class 30 Cast IIron
- HORSEPOWER: 2.0 HP
- RPM: 1150
- MAXIMUM HEAD: up to 25'
- MAXIMUM CAPACITY: up to 400 GPM
- DISCHARGE PIPE SIZE: 3" Horizontal Discharge
- MAXIMUM SOLIDS HANDLING SIZE: 3"
- CORD LENGTH: 35'; Type SOOW/W
- AMP DRAW (full load): 7.8
- VOLTAGE: 3ø, 200V
- MAXIMUM LIQUID TEMPERATURE: 140°F
- IMPELLER CONSTRUCTION: Ductile Iron, ASTM A536
- IMPELLER SIZE: 7.5"
- Section 300
Hydromatic S3NX Pump Curve
