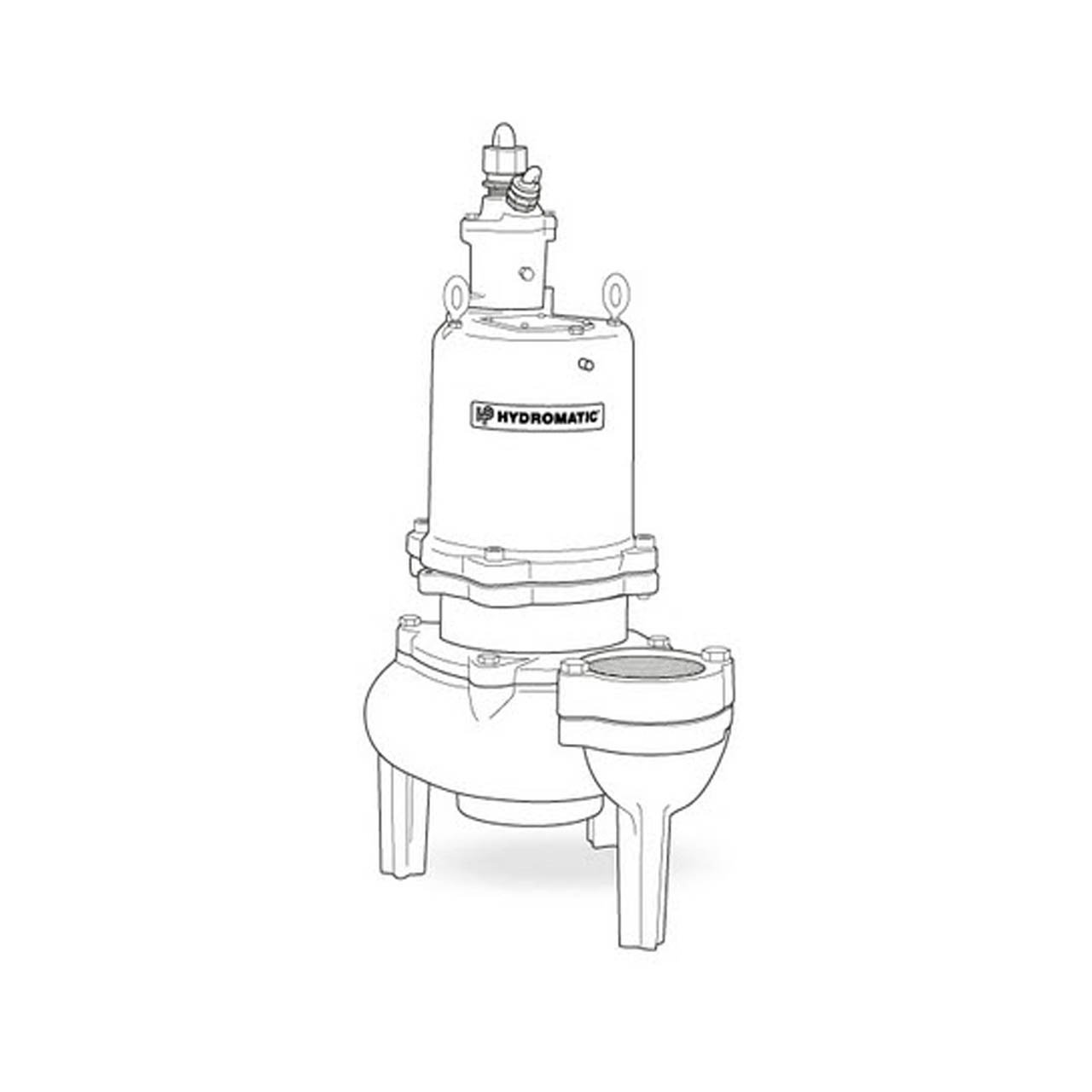

Hydromatic S3HX Hazardous Submersible Solids Handling Pumps Description

Hydromatic S3HX Hazardous Submersible Solids Handling Pumps is designed to meet the demands of Municipal, Commercial and Industrial Areas.

Hydromatic S3HX Typical Application

• Municipal
• Commercial
• Industrial
• Hazardous Locations Class I, Division I

Hydromatic S3HX Superior Features

• Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
• Standard construction is cast iron.
• Stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases bearing and seal life. Tapered shaft allows for easy removal of impeller.
• Available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
• The connection box has two epoxy barriers and a compression fitting that prevent water contamination of the motor area, assuring long-term reliable operation. In addition, epoxy encapsulation and stripped leads positively eliminate "wicking" from the cable
• Heavy duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
• Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.
• Flame-proof joints have 1-¼" flame paths. These close tolerance joints prevent any internal spark or fire from escaping into the environment.
• The hazardous location housing wall is thicker throughout the case to give you extra containment capability.
• Two moisture sensors in the oil chamber provide extra security. The sensors are electrically isolated and made with stainless steel connections and stainless steel probes and heavy-duty bearings for long pump life.
• The special Labyrinth joint gives you added protection by preventing flame or spark travel to the media being pumped

Hydromatic S3HX300EC Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 3.0 HP
• RPM: 1750
• MAXIMUM HEAD: up to 36'
• MAXIMUM CAPACITY: up to 380 GPM
• DISCHARGE PIPE SIZE: 3" Vertical Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 2.5"
• CORD LENGTH: 35' Standard
• OPTIONAL CORD LENGTH: 50'
• CORD SIZE: 14-4; Type: SOOW/W
• AMP DRAW (full load): 4.8
• VOLTAGE: 3ø, 460V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
• IMPELLER CONSTRUCTION: Balanced, Enclosed, 2 Vane, Ductile Iron, ASTM A536
• IMPELLER SIZE: 6.38"
• Section 300

Hydromatic S3HX Pump Curve
