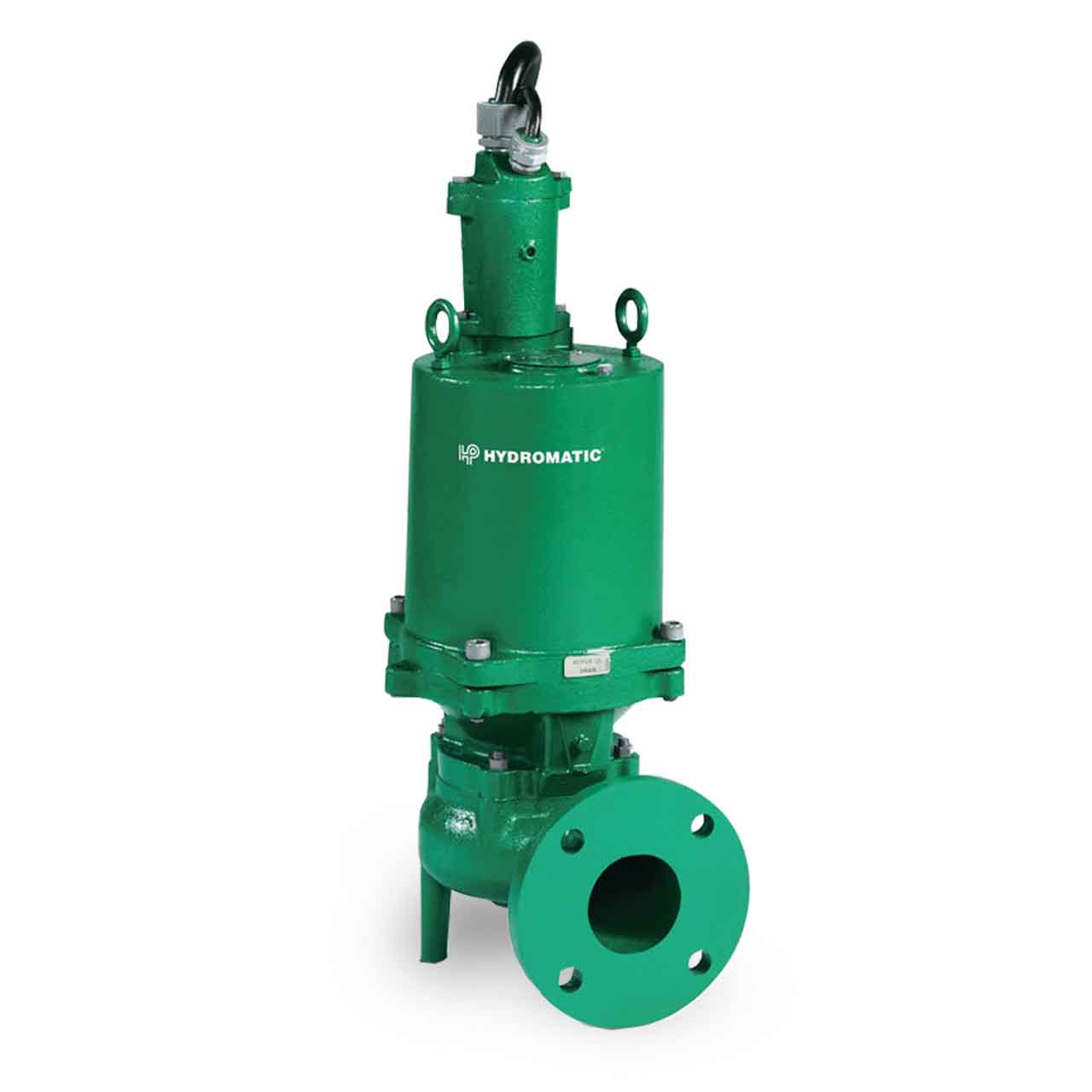

Hydromatic S3HVX Hazardous Recessed Impeller Submersible Sewages Pump Description

Hydromatic S3HVX Hazardous Submersible Recessed Impeller Sewage Pumps are ideal for a broad range of sewage and special waste-handling situations, including high head and low flows and where large solids are present.

Hydromatic S3HVX Typical Application

• Municipal
• Commercial
• Industrial
• Hazardous Locations Class I, Division I, Groups C & D

Hydromatic S3HVX Superior Features

• Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
• Hazardous location motor housing wall is thicker throughout the case to give you extra containment capability.
• Flame proof joints have 1¼" flame paths. These close tolerance joints prevent any internal spark or fire from escaping into the environment.
• There are two moisture sensors in the oil chamber that provide extra security, sensors are electrically isolated and made with stainless steel connections and stainless steel probes.
• Standard construction is cast iron.
• Stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases bearing and seal life. Tapered shaft allows for easy removal of impeller.
• Available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
• The connection box has two epoxy barriers and a compression fitting that prevent water contamination of the motor area, assuring long-term reliable operation. In addition, epoxy encapsulation and stripped leads positively eliminate "wicking" from the cable
• Heavy duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
• Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.
• Special labyrinth joint gives you added protection by preventing flame or spark travel to the media being pumped.

Hydromatic S3HVX Key Features

• Recessed impeller design has completely open passage in volute.
• Pumping action is by vortex; reduces solids getting caught in the impeller volute.
• Operates without vibration or cavitation over entire performance curve.
• Recessed impeller greatly increases bearing life by reducing radial load.
• Oil-filled motor for maximum heat dissipation and constant bearing lubrication.
• Heat sensor thermostats embedded in windings protect motor from overheat conditions
• Seal leak probes warn of moisture entry; help prevent costly motor burnout.
• Available configurations, rails and accessories:
• Rail Systems Available
• Controls and Accessories Available

Hydromatic S3HVX300ED Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 3.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 88'
• MAXIMUM CAPACITY: up to 338 GPM
• DISCHARGE PIPE SIZE: 3" Flange 125# Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 2"
• CORD LENGTH: 35' Standard
• OPTIONAL CORD LENGTH: 50'
• CORD SIZE: 14-4; Type: SOOW/W
• AMP DRAW (full load): 9.4
• VOLTAGE: 3ø, 230/460V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
• IMPELLER CONSTRUCTION: Balanced, Recessed, 8 Vane, Semi-Open Vortex, Ductile Iron, ASTM A536
• IMPELLER SIZE: 4.0"
• Section 300

Hydromatic S3HVX Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic S3HVX Product Resources

Download Hydromatic S3HVX Sales Brochure

Download Hydromatic S3HVX Electrical Data

Download Hydromatic S3HVX Technical Data

Download Hydromatic S3HVX Performance Curve

Download Hydromatic S3HVX Installation & Service Manual

Download Hydromatic S3HVX Dimensional Data

Download Hydromatic S3HVX Specification Data
