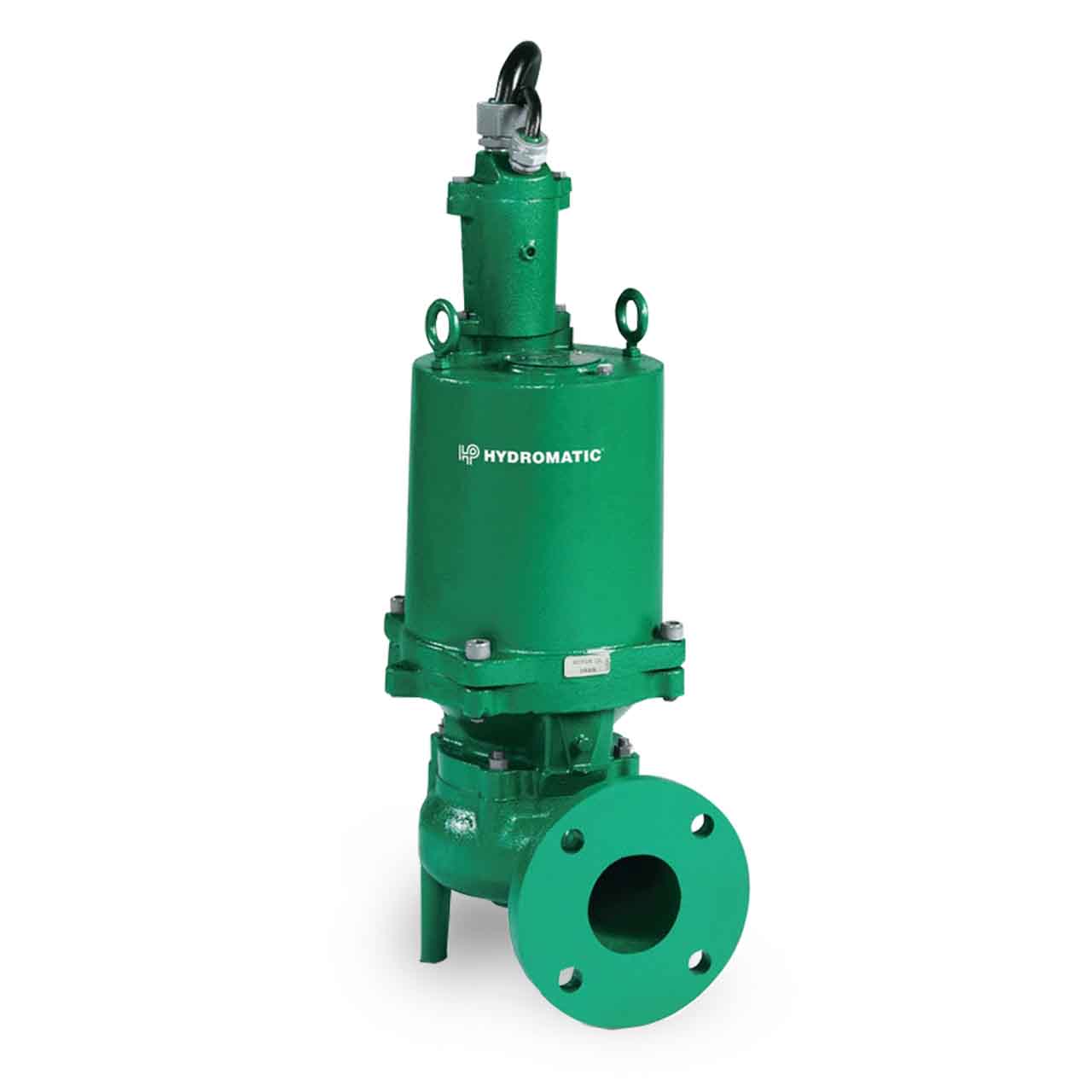

Hydromatic S3HRC Submersible Recessed Impeller Sewage Pumps Description

Hydromatic S3HRC Submersible Recessed Impeller Sewage Pumps are ideal for a broad range of sewage and special waste-handling situations, including high head and low flows and where large solids are present.

Hydromatic S3HRC Typical Application

• Municipal
• Commercial
• Industrial

Hydromatic S3HRC Superior Features

• Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
• Standard construction is cast iron.
• Stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases bearing and seal life. Tapered shaft allows for easy removal of impeller.
• Available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
• The connection box has two epoxy barriers and a compression fitting that prevent water contamination of the motor area, assuring long-term reliable operation. In addition, epoxy encapsulation and stripped leads positively eliminate "wicking" from the cable
• Heavy duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
• Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.

Hydromatic S3HRC Submersible Recessed Impeller Sewage Pumps Features

• Recessed Impeller Design has Completely Open Passage in Volute.
• Pumping Action is by Vortex; Reduces Solids Getting Caught in the Impeller Volute.
• Operates without Vibration or Cavitation over Entire Performance Curve.
• Recessed Impeller Greatly Increases Bearing Life by Reducing Radial Load.
• Oil-Filled Motor for Maximum Heat Dissipation and Constant Bearing Lubrication.
• Heat Sensor Thermostats Embedded in Windings Protect Motor from Overheat Conditions.
• Seal Leak Probes Warn of Moisture Entry; Help Prevent Costly Motor Burnout.

Hydromatic S3HRC500M3-2 Specifications

• VOLTAGE: 3ø, 230/460V 60Hz
• HORSEPOWER: 5.0 HP
• AMP DRAW (full load): 15.6
• MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
• RPM: 3450
• MAXIMUM HEAD: up to 70'
• MAXIMUM CAPACITY: up to 280 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 3" 125# Flange Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Balanced, Recessed, 8 Vane, Semi-Open Vortex, Ductile Iron, ASTM A536
• IMPELLER DIAMETER: 4.5"
• CORD LENGTH: 35' Standard
• CORD SIZE: 12-4; Type: SOOW/W
• OPTIONAL CORD LENGTH: 50'
• BODY CONSTRUCTION: Class 30 Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F

Hydromatic S3HRC Pump Curve
