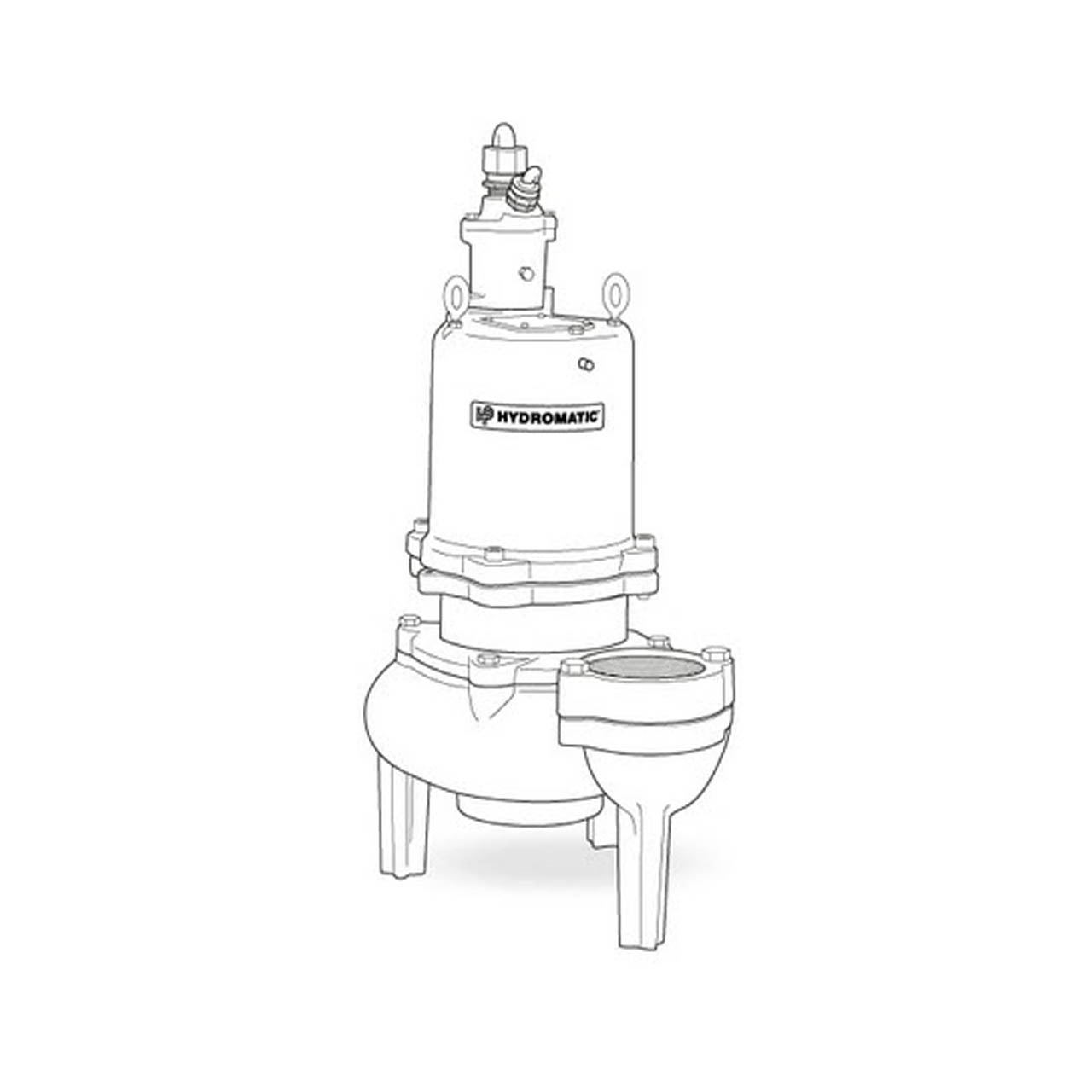

Hydromatic S3H Submersible Solids Handling Pumps Description

Hydromatic S3H Submersible Solids Handling Pumps is designed to meet the demands of Municipal, Commercial and Industrial Areas.

Hydromatic S3H Typical Application

• Municipal
• Commercial
• Industrial

Hydromatic S3H Superior Features

• Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
• Two epoxy barriers and a compression fitting prevent water contamination of the motor area, assuring long-term reliable operation. Additionally, epoxy encapsulation and stripped leads positively eliminate “wicking” from the cable.
• Heavy-duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
• A dual seal system operates in an oil chamber to provide long pump service life. Various seal options available.
• The stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases deflection and increases bearing and seal life. Tapered shaft allows for easy removal of impeller.
• Hydromatic solids handling pumps are available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
• Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.

Hydromatic S3H200M2-4 Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 2.0 HP
• RPM: 1750
• MAXIMUM HEAD: up to 46'
• MAXIMUM CAPACITY: up to 300 GPM
• DISCHARGE PIPE SIZE: 3.0" Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 3.0"
• CORD LENGTH: 35' Standard
• OPTIONAL CORD LENGTH: 50'
• CORD SIZE: 12-4; Type: SOOW/W
• AMP DRAW (full load): 12.8
• VOLTAGE: 1 ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
• IMPELLER CONSTRUCTION: Balanced, Enclosed, 2 Vane, Ductile Iron, ASTM A536
• IMPELLER SIZE: 5.83"
• Section 300

Hydromatic S3H Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic S3H Product Resources

Download Hydromatic S3H Sales Brochure

Download Hydromatic S3H Electrical Data

Download Hydromatic S3H Technical Data

Download Hydromatic S3H Performance Curve

Download Hydromatic S3H Installation & Service Manual

Download Hydromatic S3H Dimensional Data

Download Hydromatic S3H Specification Data
