Item Discontinued, See Replacement: Myers MEOSP50A1 Submersible Effluent Pump 0.5 HP 115V 1PH 20' Cord Automatic

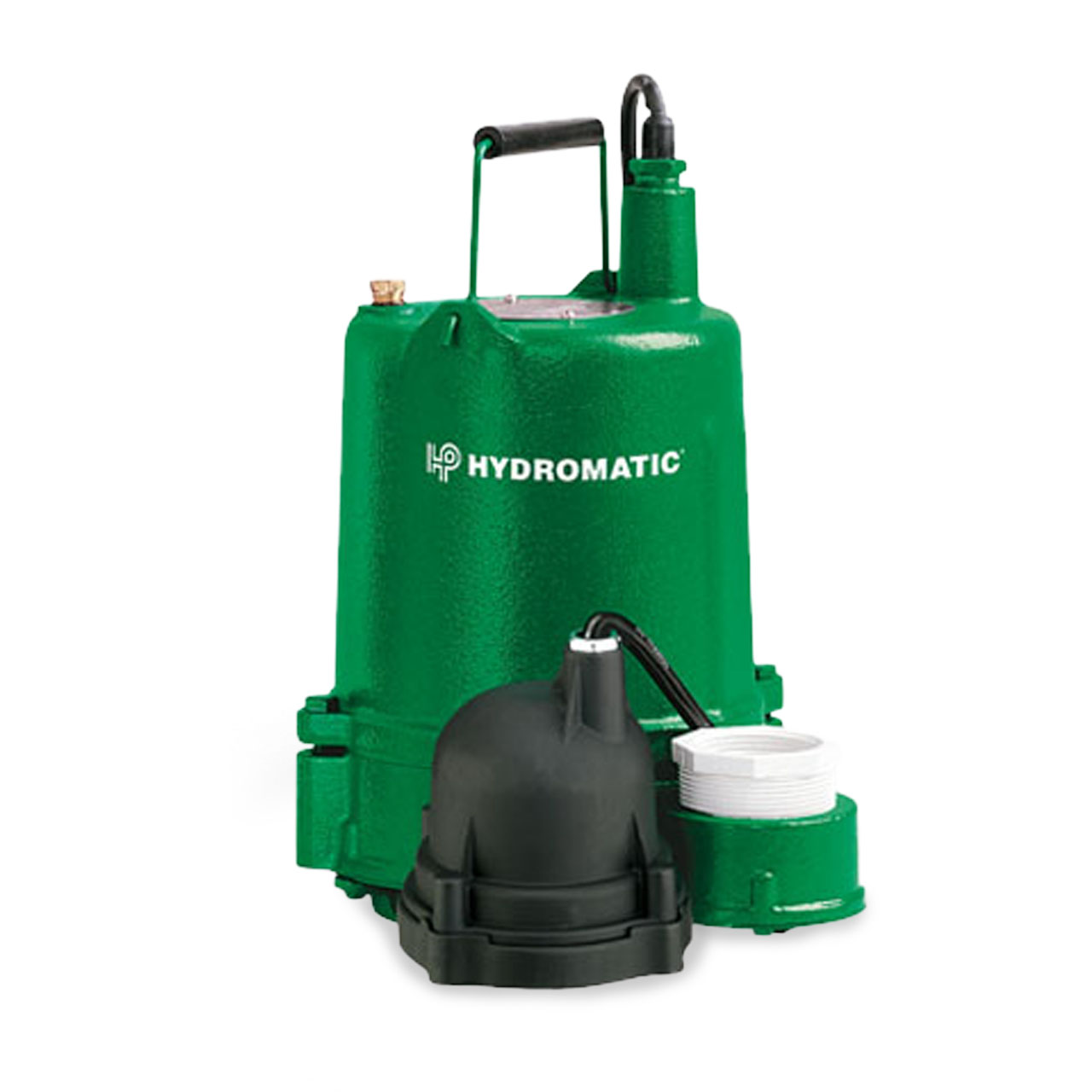

Hydromatic OSP50A1 Description

The OSP50 is a completely submersible pump for use in basement sump, elevator pit, septic tank effluent, industrial circulator, and transfer tank applications.

Hydromatic OSP50A1 Typical Application

• Continuous Duty Application
• Septic Tank Effluent
• Flood Control Units
• Industrial Circulators
• Elevator Pits
• Basement Sumps

Hydromatic OSP50 Superior Features

• Continuous duty rated
• Carbon/Ceramic type 21 mechanical seal
• Oil-filled motor with automatic reset thermal overload for maximum protection
• Upper and lower single-row ball-bearing construction
• Oil-filled motor
• Automatic pump operation – “piggyback” diaphragm switch included

Hydromatic OSP50A1 Technical Details

• BODY CONSTRUCTION: Cast Iron
• HORSEPOWER: 0.5 HP
• RPM: 1750
• MAXIMUM HEAD: up to 25'
• MAXIMUM CAPACITY: up to 60 GPM
• DISCHARGE PIPE SIZE: 1.5" NPT Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 5/8"
• CORD LENGTH: 20' Power Cord
• VOLTAGE: 1ø, 115V
• FULL LOAD AMPS: 9.5
• MOTOR: Split Phase
• IMPELLER CONSTRUCTION: Composite

Hydromatic OSP50 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic OSP50 Product Resources

Download Hydromatic OSP50 Sales Brochure

Download Hydromatic OSP50 Installation & Service Manual
