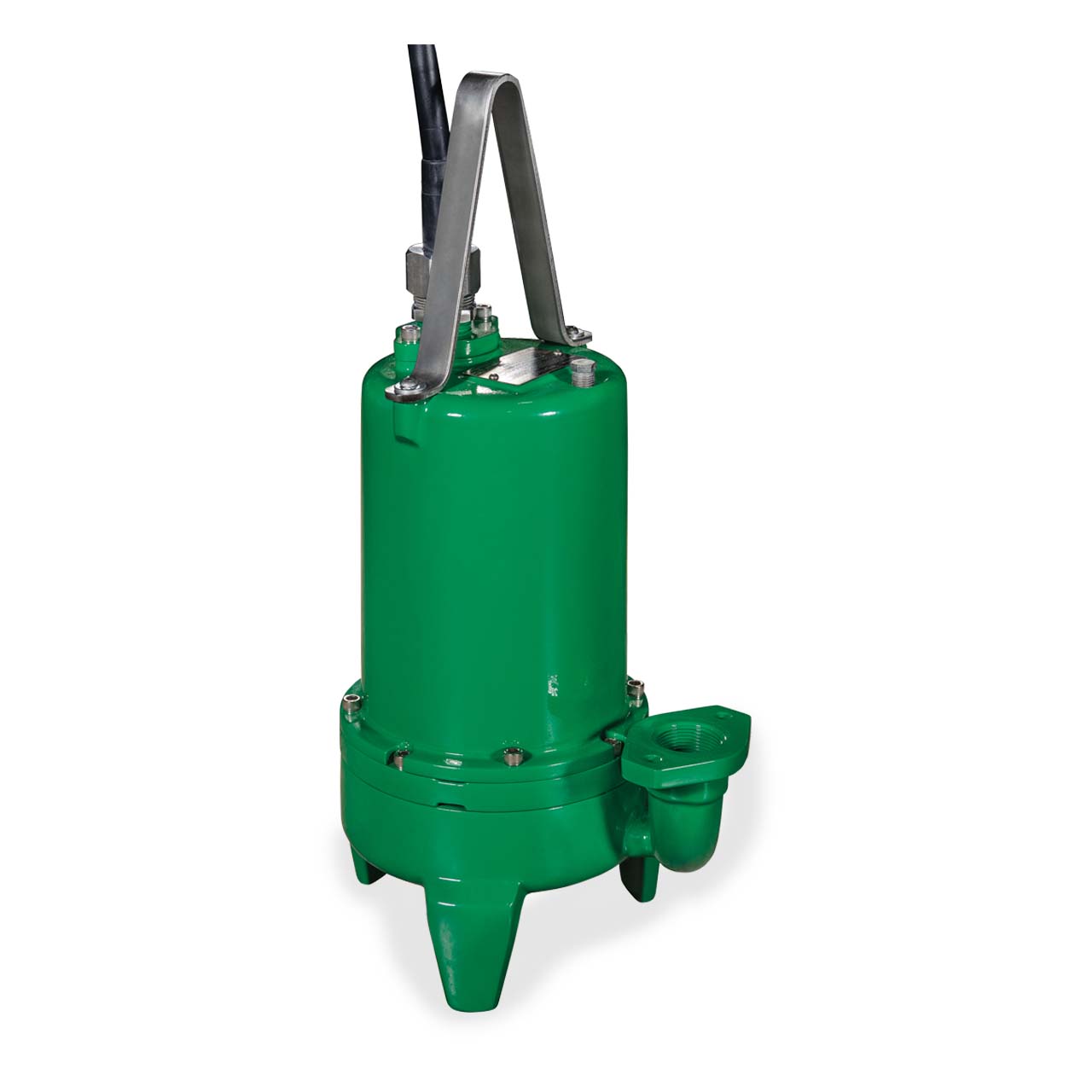

Hydromatic HVS200 Grinder Pump Description

The Hydromatic HV200 Series grinder is engineered from the ground up in order to overcome the increased debris and higher pressure required in today's wastewater environment. It features a patent-pending axial cutter design and semi-open impeller to effectively macerate challenging sewage solids into a fine slurry.

Hydromatic HVS200 Grinder Pump Features

• CABLE ENTRY SYSTEM:
  • Cable Jacket Sealed by Compression Fitting; Individual Wires Sealed by Compression Grommet for Double Seal Protection against Water Ingress
  • Replace Power Cord without Disturbing Motor for Ease of Maintenance
• OIL-FILLED MOTOR:
  • Maximizes Heat Dissipation and Provides Constant Bearing Lubrication for Long Life
  • High Torque Start/Run Capacitor for Single Phase Motors for Assured Starting Under Heavy Loads
  • Internal Capacitors Eliminate Need for Control Panel
• HEAT SENSOR:
  • Protects Motor from Burnout Due to Excessive Heat from any Overload Condition
  • Automatically Resets when Motor has Cooled
• HEAVY 416 SST SHAFT: Corrosion Resistant, Reduces Shaft Deflection for Long Life
• LOWER DOUBLE ROW BALL BEARINGS: Absorb Both Axial and Radial Loads for Increased Durability
• DOUBLE MECHNICAL SHAFT SEALS: In Oil-Filled Seal Chamber for Continuous Lubrication, Superior Motor Protection
• SEAL LEAK PROBE:
  • Located in Seal Chamber Instead of Motor Area for True Early Warning of Water Leaks. Allows Corrective Action Before Costly Motor or Bearing Failure Occurs.
  • Activates Warning Light in Control Panel.
• SST SEMI-OPEN IMPELLER:
  • Provides Improved Performance, Resists Clogging
  • Pump-Out Vanes Help Keep Trash From Seal, Reduces Pressure at Seal Face for Longer Life

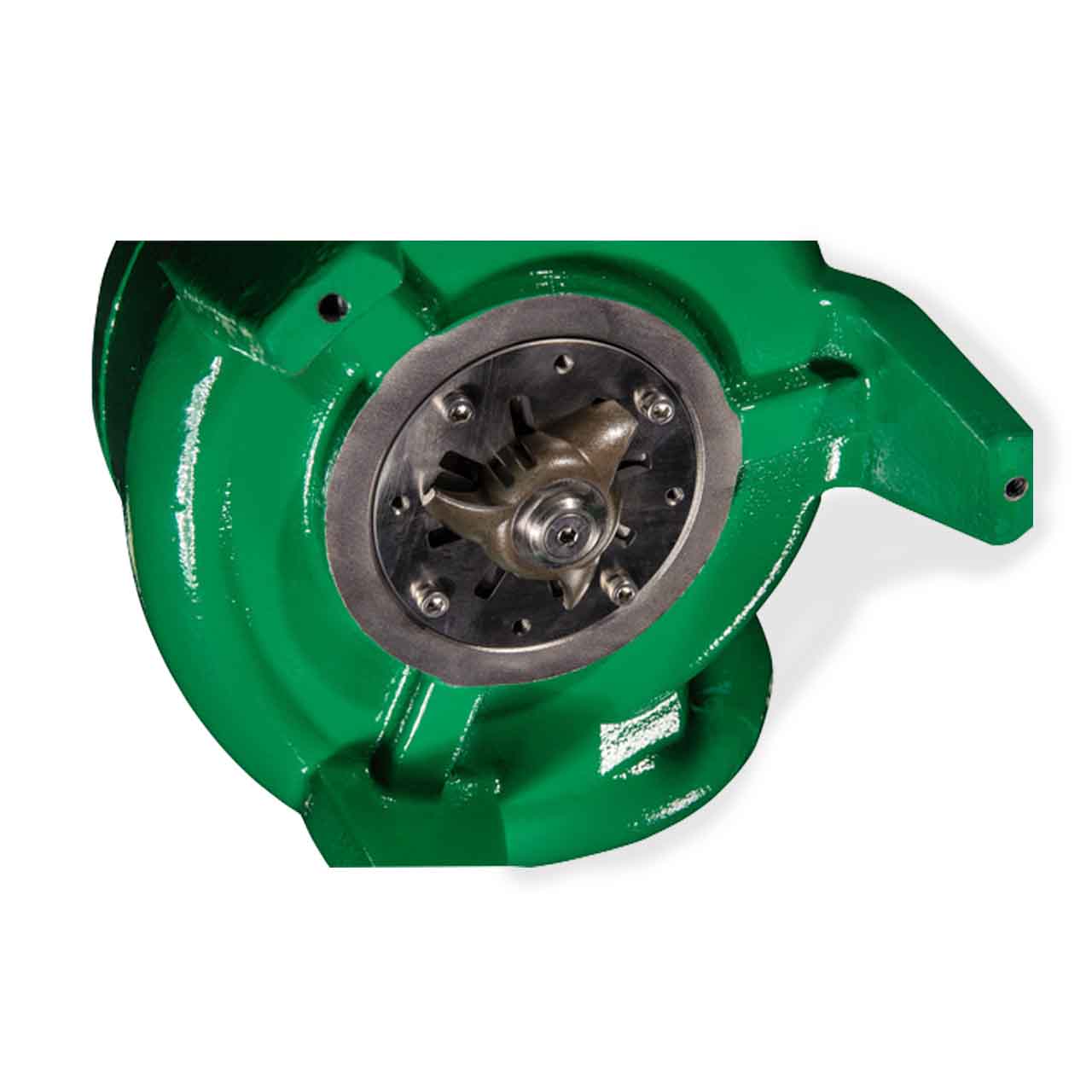

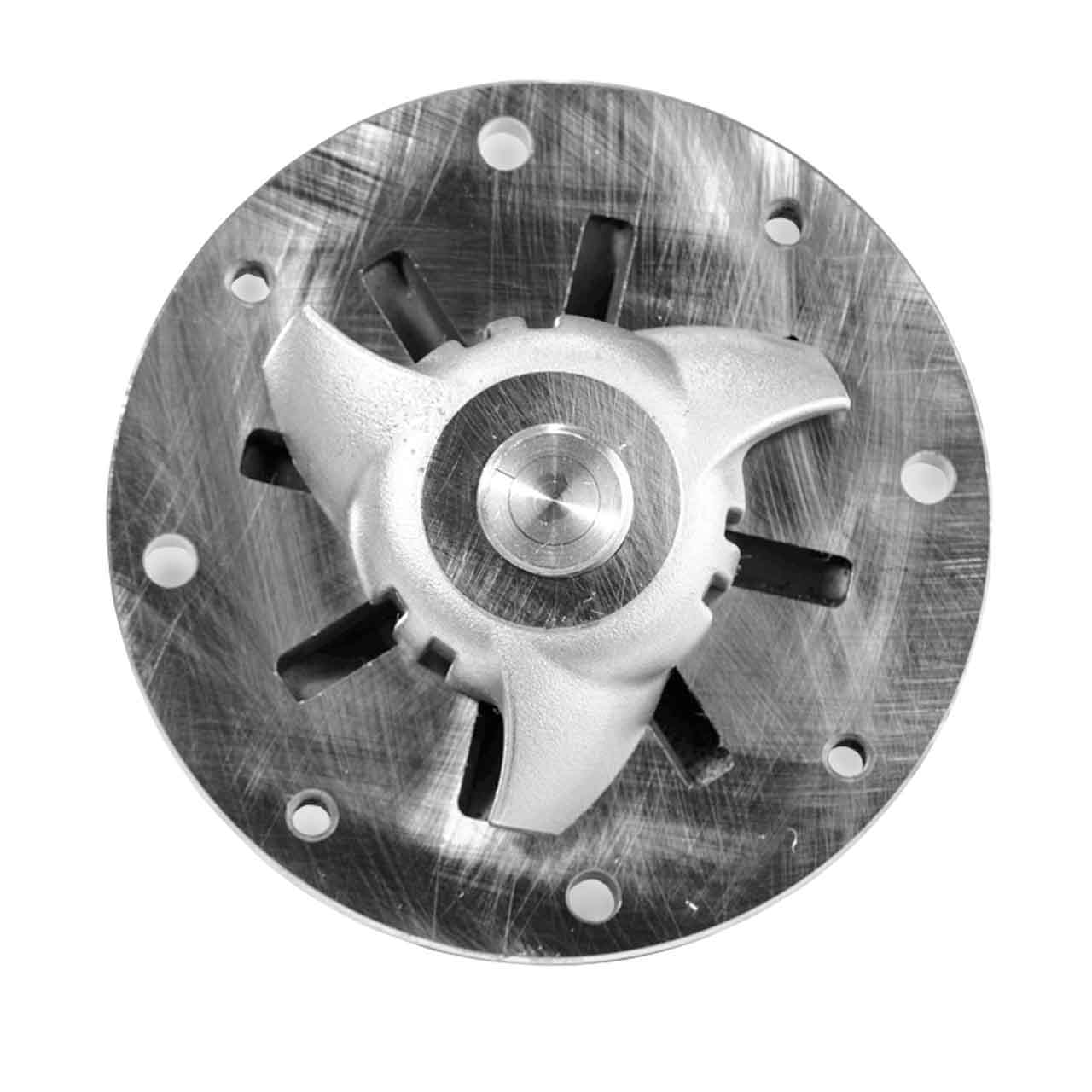

• AXIAL CUTTER SYSTEM:
  • Constructed of 440 SST Hardened to 57-60Rc for Long Life.
  • Easily Replaceable without Dismantling Pump.
• VOLUTE CASE: Cast Iron, 1-1/4" Vertical, Flanged Discharge.

Hydromatic HVS200M4-2-20 Specifications

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 2.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 138'
• MAXIMUM CAPACITY: up to 31 GPM
• DISCHARGE PIPE SIZE: 1.25" (31.75 mm) Discharge
• CORD LENGTH: 20' Standard
• OPTIONAL CORD LENGTHS AVAILABLE
• CORD SIZE: 12-7; Type: SOOW
• AMP DRAW (full load): 4.2
• VOLTAGE: 3ø, 460V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction
• IMPELLER CONSTRUCTION: Semi-Open 8 Vane, Stainless Steel

Hydromatic HVS200 Grinder Pump Curve
