Hydromatic HVRS200M2-2 Grinder Pump Manual 2.0 HP 230V 1PH
Hydromatic HVRS200M2-2 Grinder Pump Manual 2.0 HP 230V 1PH
SKU : HTC528350017
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.

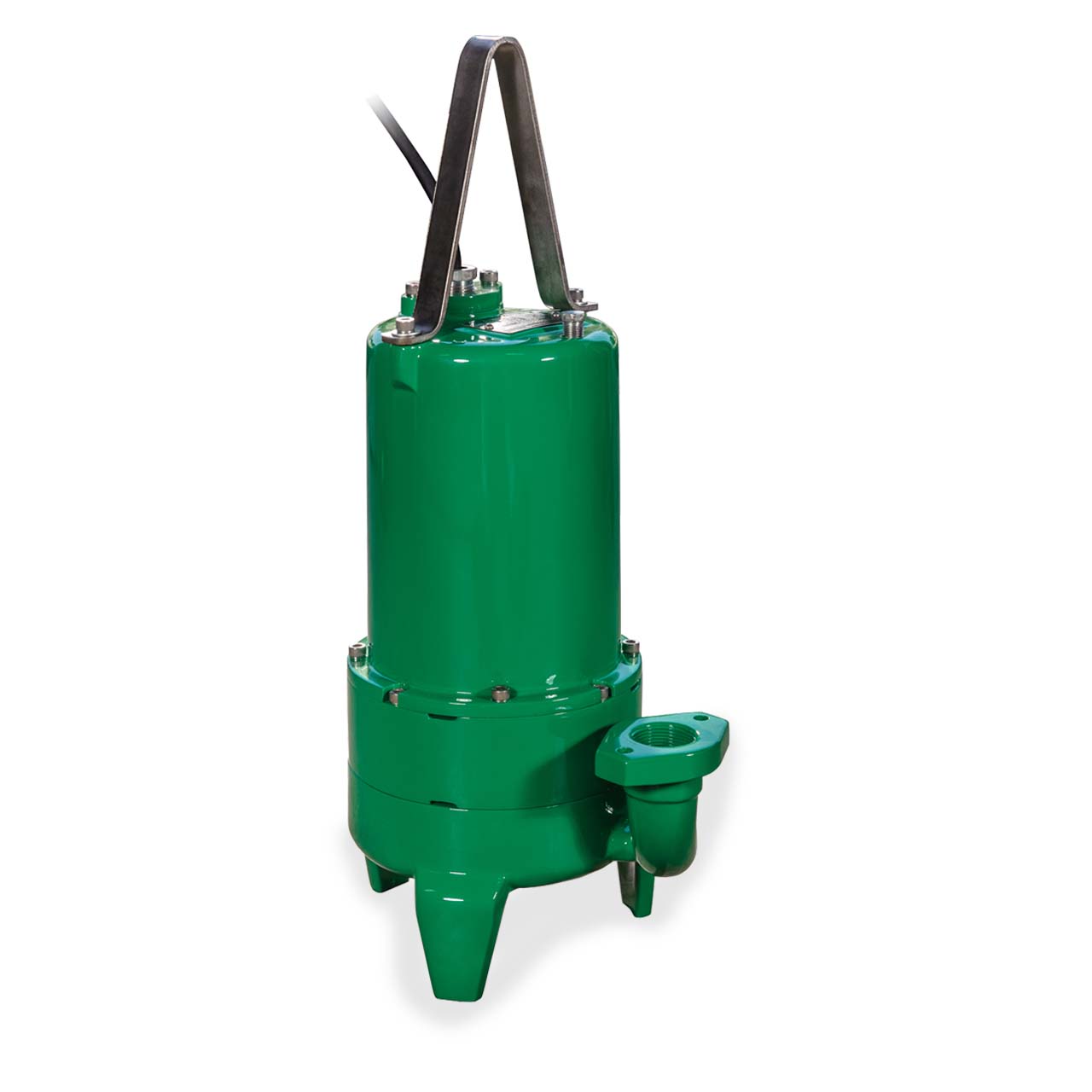

Hydromatic HVR200 Automatic Grinder Pump Description
The new Hydromatic HVR200 Series grinders feature a patent-pending axial cutter technology that easily slices through solids and trash found in domestic wastewater without roping or clogging. They come with plenty of standard features to make installation a breeze.
The HVR200 is a rugged and economical solution for residential and pressure sewage systems.
Hydromatic HVR200 Features
- WIDE ANGLE FLOAT SWITCH: Piggy-Back Cord for Easy Maintenance.
- CABLE ENTRY SYSTEM: Cable Jacket Sealed by Compression Fitting and Individual Wires Sealed by Compression Grommet for Double Seal Protection Against Water Ingress.
- OIL-FILLED MOTOR:
- Maximizes Heat Dissipation and Provides Constant Bearing Lubrication for Long Life.
- High Torque Start/Run Capacitor for Single Phase Motors for Assured Starting Under Heavy Loads.
- Internal Capacitors Eliminate Need for Control Panel.
- INTEGRATED HEAT SENSOR: Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled.
- SHAFT and FASTNERS: Stainless Steel for Maximum Corrosion Resistance and Long Life.
- SHAFT SEALS: Oil Lubricated Single Carbon and Ceramic Faced Seal Provides Motor Protection.
- IMPELLER:
- Semi-Open Impeller Handles Ground Slurry Without Clogging or Binding.
- Pump-Out Vanes Help Keep Trash from Seal and Reduces Pressure at Seal Face for Longer Life.

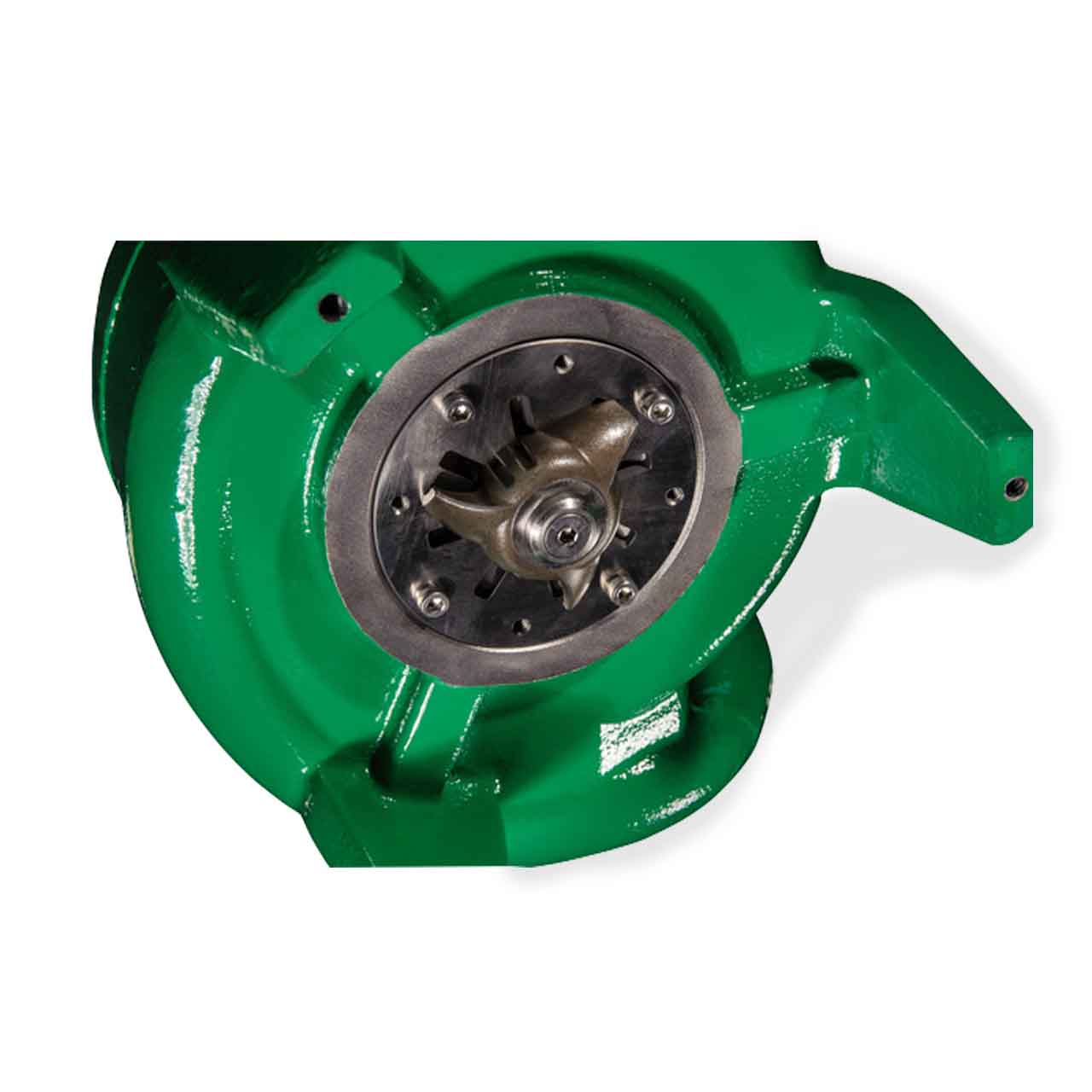

- AXIAL CUTTER SYSTEM:
- Easily Slice Through Solids and Trash Commonly Found in Domestic Wastewater without Roping and Clogging.
- Constructed of 440 SST Hardened to 57-60Rc for Long Life.
- Easily Replaceable without Dismantling Pump.
- VOLUTE CASE: Cast Iron, 1-1/4" Vertical, Flanged Discharge.
Specifications
Specifications
Hydromatic HVRS200M2-2 Specifications
- BODY CONSTRUCTION: Class 30 Cast Iron
- HORSEPOWER: 2.0 HP
- RPM: 3450
- MAXIMUM HEAD: up to 139'
- MAXIMUM CAPACITY: up to 35 GPM
- DISCHARGE PIPE SIZE: 1.25" (31.75 mm) Discharge
- CORD LENGTH: 20' Standard
- CORD SIZE: 14-3; Type: SJOOW
- AMP DRAW (full load): 15.0
- VOLTAGE: 1ø, 230V
- MAXIMUM LIQUID TEMPERATURE: 140°F
- MOTOR: Enclosed, Oil Cooled Induction
- IMPELLER CONSTRUCTION: Semi-Open 8 Vane, Stainless Steel
Hydromatic HVR200 Pump Curve
