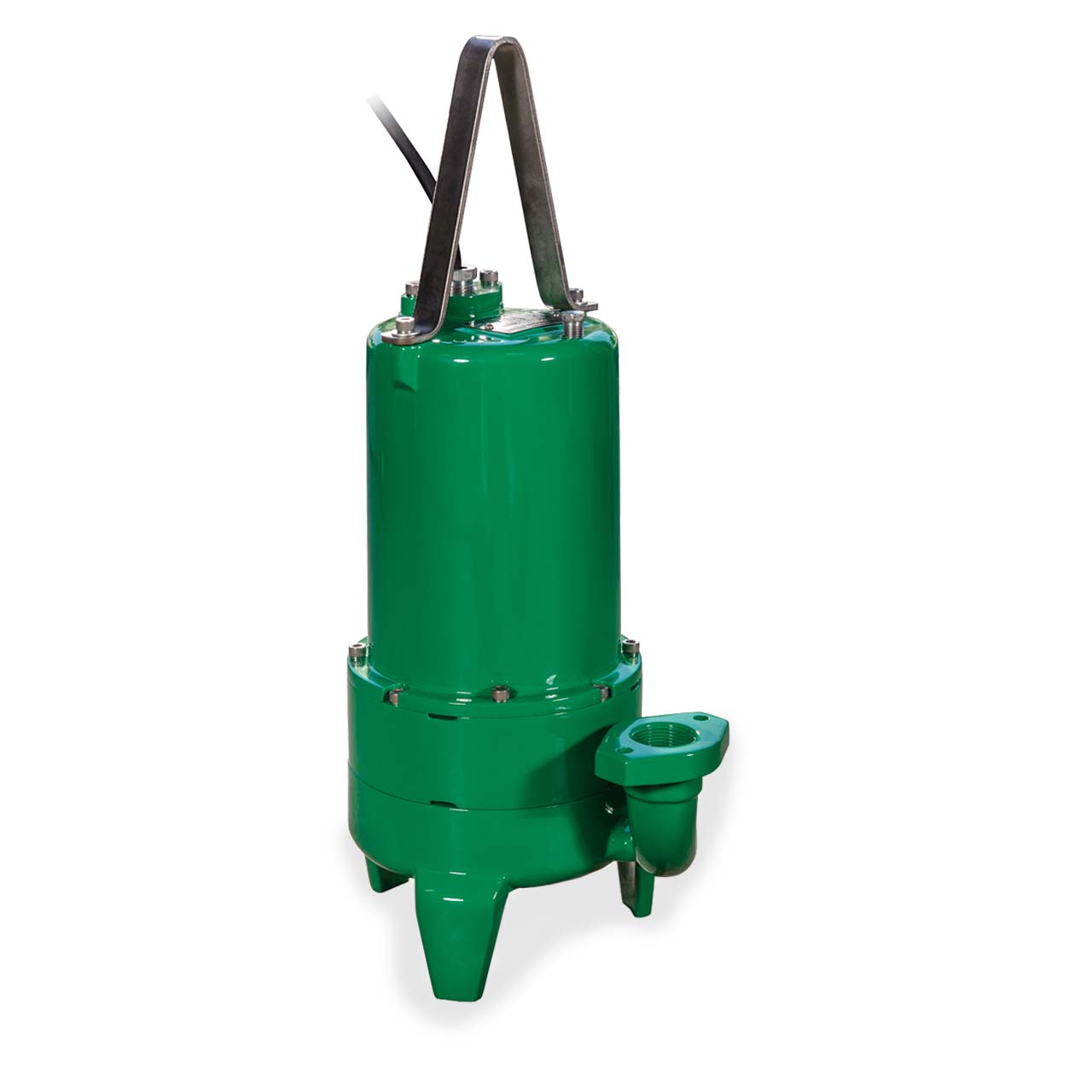

Hydromatic HVR200 Automatic Grinder Pump Description

The new Hydromatic HVR200 Series grinders feature a patent-pending axial cutter technology that easily slices through solids and trash found in domestic wastewater without roping or clogging. They come with plenty of standard features to make installation a breeze.

The HVR200 is a rugged and economical solution for residential and pressure sewage systems.

Hydromatic HVR200 Features

• WIDE ANGLE FLOAT SWITCH: Piggy-Back Cord for Easy Maintenance.
• CABLE ENTRY SYSTEM: Cable Jacket Sealed by Compression Fitting and Individual Wires Sealed by Compression Grommet for Double Seal Protection Against Water Ingress.
• OIL-FILLED MOTOR:
• Maximizes Heat Dissipation and Provides Constant Bearing Lubrication for Long Life.
• High Torque Start/Run Capacitor for Single Phase Motors for Assured Starting Under Heavy Loads.
• Internal Capacitors Eliminate Need for Control Panel.
• INTEGRATED HEAT SENSOR: Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled.
• SHAFT and FASTNERS: Stainless Steel for Maximum Corrosion Resistance and Long Life.
• SHAFT SEALS: Oil Lubricated Single Carbon and Ceramic Faced Seal Provides Motor Protection.
• IMPELLER:
• Semi-Open Impeller Handles Ground Slurry Without Clogging or Binding.
• Pump-Out Vanes Help Keep Trash from Seal and Reduces Pressure at Seal Face for Longer Life.

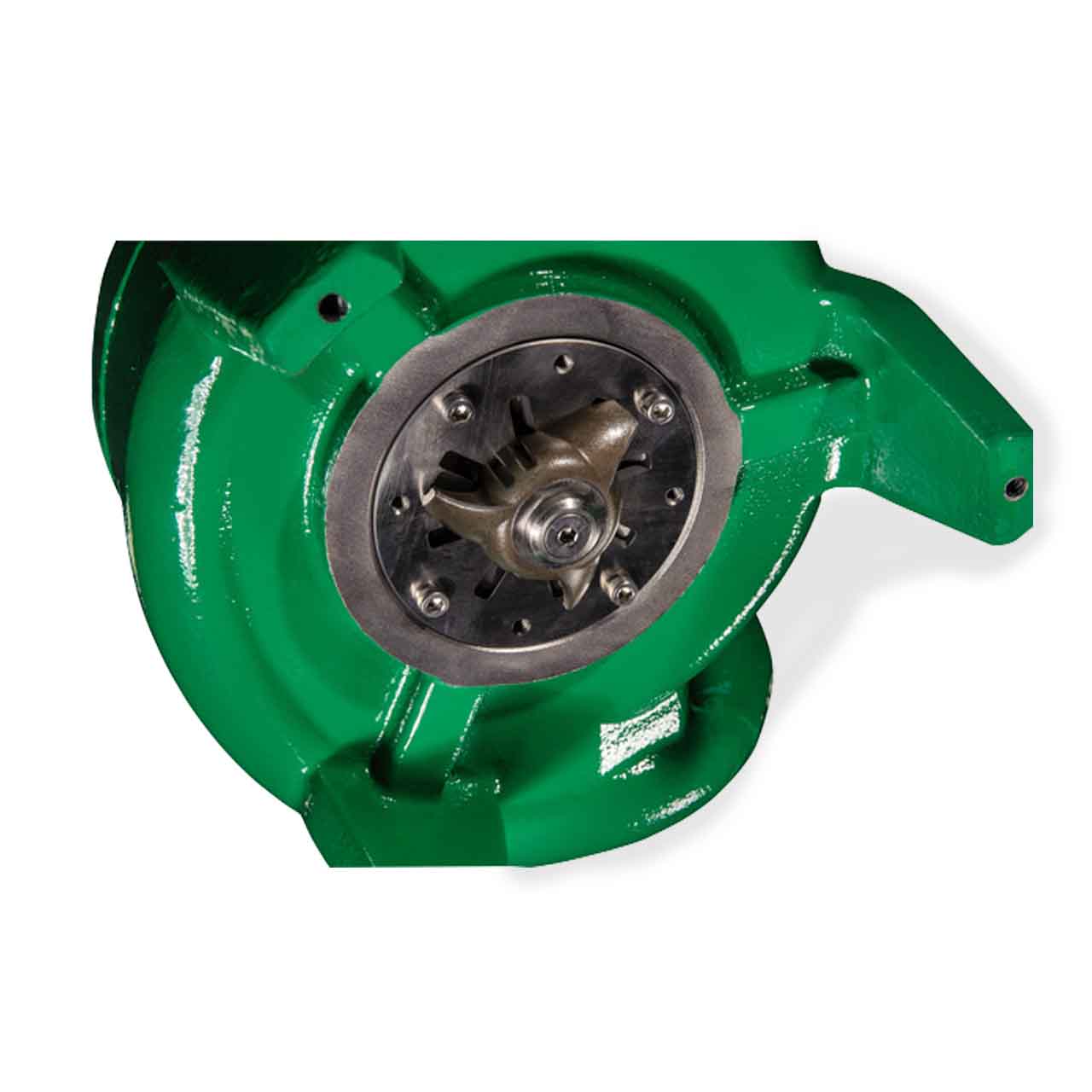

• AXIAL CUTTER SYSTEM:
• Easily Slice Through Solids and Trash Commonly Found in Domestic Wastewater without Roping and Clogging.
• Constructed of 440 SST Hardened to 57-60Rc for Long Life.
• Easily Replaceable without Dismantling Pump.
• VOLUTE CASE: Cast Iron, 1-1/4" Vertical, Flanged Discharge.

Hydromatic HVRS200A2-2 Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 2.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 139'
• MAXIMUM CAPACITY: up to 35 GPM
• DISCHARGE PIPE SIZE: 1.25" (31.75 mm) Discharge
• CORD LENGTH: 20' Standard
• CORD SIZE: 14-3; Type: SJOOW
• AMP DRAW (full load): 15.0
• VOLTAGE: 1ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction
• IMPELLER CONSTRUCTION: Semi-Open 8 Vane, Stainless Steel

Hydromatic HVR200 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic HVR200 Product Resources

Download Hydromatic HVR200 Sales Brochure

Download Hydromatic Axial Cutter Sales Brochure

Download Hydromatic HVR200 Installation & Service Manual

Download Hydromatic HVR200 Specification Data

Download Hydromatic HVR200 Typical Installation
