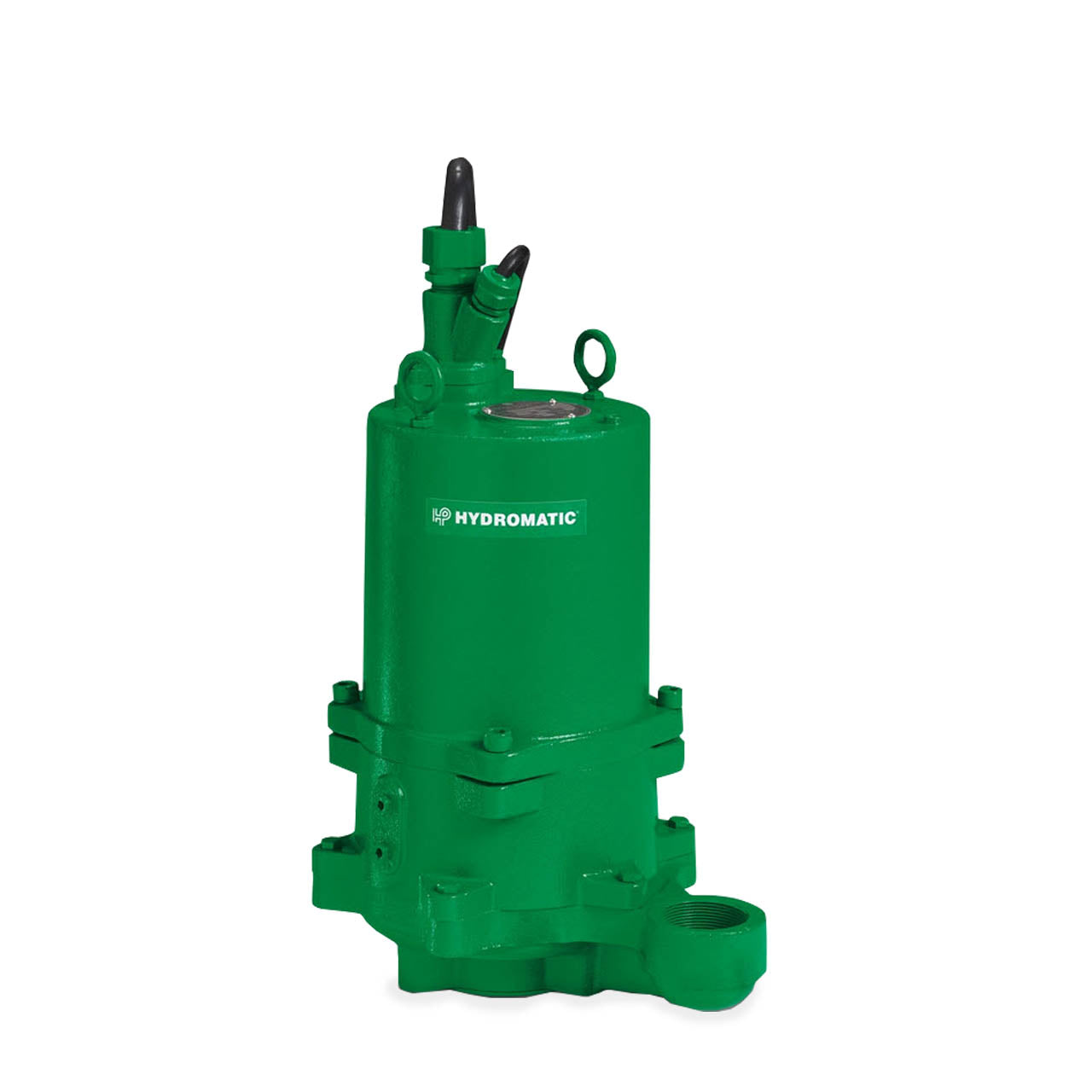

Hydromatic HPGX200 Hazardous Submersible Sewage Grinder Pump Description

Hydromatic HPGX200 Hazardous Submersible Sewage Grinder Pump is designed to meet the demands of Municipal, Commercial, Residential and Resort Areas.

Hydromatic HPGX200 Typical Application

• Hazardous Locations Class I, Division 1, Groups C & D

Hydromatic HPGX200 Superior Features

• One epoxy barrier and one compression fitting for maximum protection against wicking and water seepage into the motor housing.
• The heavy-duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
• Electrical motor design combines the advantages of high torque output with optimum running efficiency engineered specifically for grinder operation.
• The stator is secured to the motor housing by means of stator bolts which ensure ease of maintenance if the need ever arises.
• Standard stainless steel shaft in grinder pump.
• Dual seals for maximum moisture protection.
• Moisture detection probe.
• Exclusive “Dual Cutter” design cuts solids to smallest particle size thereby greatly reducing clogging, roping, or binding.
• Engineered non-metallic semi-open impeller molded to a bronze insert for greatest torque driving capabilities. Impeller made of high strength Valox® which provides highest level of corrosion resistance and maximum toughness from impact for a wide variety of slurry pumpage. Pump-out vanes preclude material build-up around shaft and seal. Bronze impeller available.

Hydromatic HPGX200 Key Features

• Explosion-proof
• Class 1, Division 1, Groups C&D
• Dual seals for maximum moisture protection
• Oil-filled motor for maximum heat dissipation and constant bearing lubrication
• Exclusive dual cutter design cuts solids to the smallest particle size
• Semi-open impeller provides steep non-overloading operating curve
• Available configurations, rails and accessories:
  • Rail Systems Available
  • Controls and Accessories Available

Hydromatic HPGX200BD Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 2.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 100'
• MAXIMUM CAPACITY: up to 62 GPM
• DISCHARGE PIPE SIZE: 1.25" NPT Discharge
• CORD LENGTH: 20'; Type HPG/SOOW
• AMP DRAW (full load): 19.9
• VOLTAGE: 1ø, 200V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction
• IMPELLER CONSTRUCTION: Semi-Open 5 Vane, Red Brass #85-5-5-5, ASTM B584-836
• IMPELLER SIZE: 5.0"

Hydromatic HPGX200 Pump Curve
