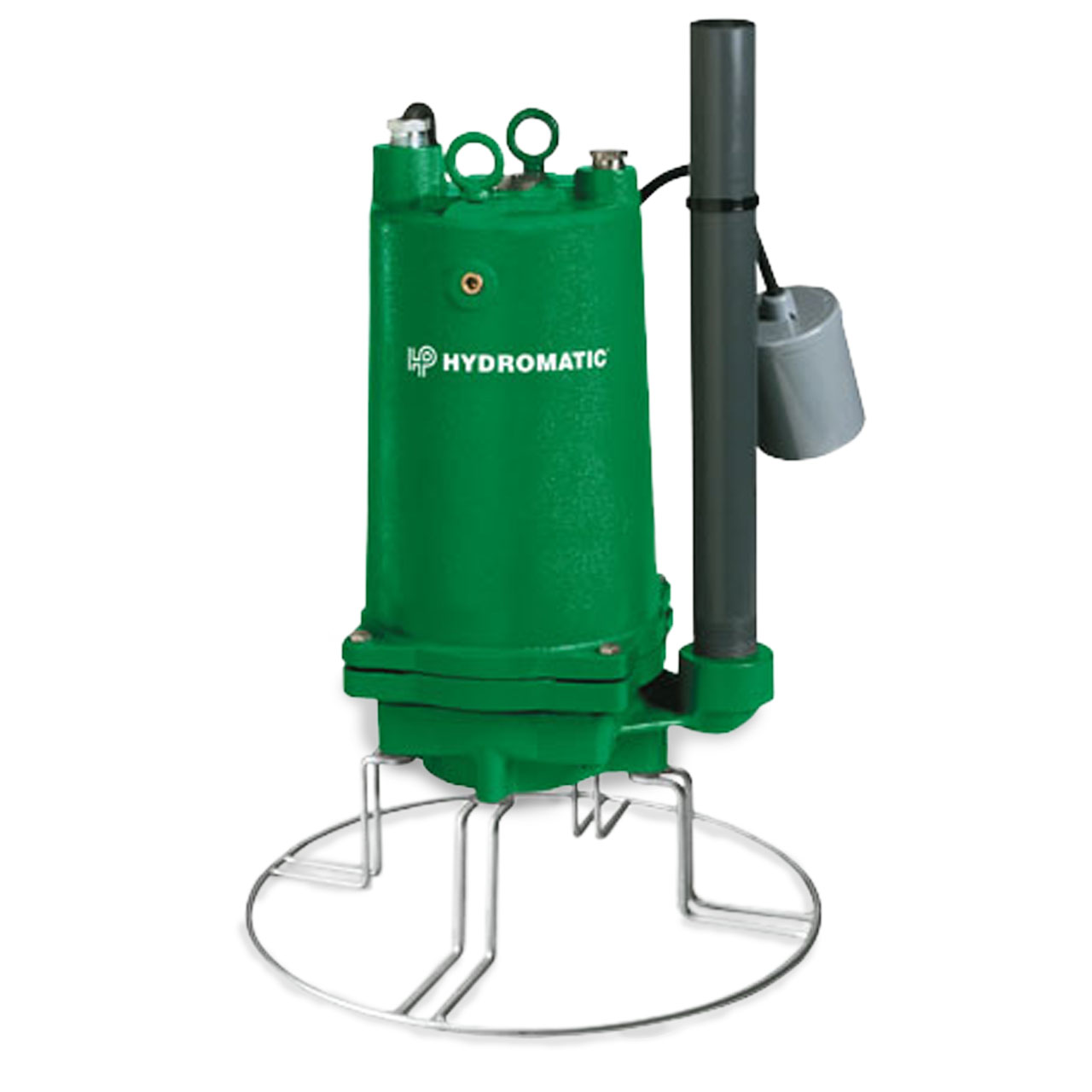

Hydromatic HPGR200M2-2 Submersible Sewage Grinder Pump Description

The Hydromatic HPGR200 submersible sewage grinder pump is specifically designed to meet the demands of residential wastewater, sewage applications, and the quality standard of the professional plumbing contractor.

Hydromatic HPGR200 Typical Applications

• "High-Head"
• Single-Family Residences and Cottages

Hydromatic HPGR200 Superior Features

• The water resistant power cord with molded plug is available in 20 or 50 foot lengths.
• The heavy duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
• Engineered non-metallic semi-open impeller is molded to a bronze insert for greatest torque driving capabilities. Impeller is made of high strength Valox which provides highest level of corrosion resistance and maximum toughness from impact for a wide variety of slurry pumping. Pump-out vanes preclude material buildup around shaft and seal.
• The oil-filled motor provides superior cooling and permanent lubrication of bearings, low maintenance and extended service life. 2-HP capacitor start motors provide maximum starting torque. Motor windings contain automatic thermal overload protection.
• The extra large stainless steel shaft eliminates corrosion and fatigue to provide longer pump life. The minimum shaft overhang decreases deflection and increases bearing and seal life.
• The mechanical seal is constructed with a ceramic stationary face and a carbon rotating face, and is field-proven for long service life.
• Exclusive “Dual Cutter” design cuts solids to the smallest particle size thereby greatly reducing clogging, roping, or binding.
• Piggyback Plug Available for Easy Maintenance
• Wire Pump Stand Sold Seperately

Hydromatic HPGR200M2-2 Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron ASTM A-48
• HORSEPOWER: 2.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 60'
• MAXIMUM CAPACITY: up to 48 GPM
• DISCHARGE PIPE SIZE: 1.25" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 2"
• CORD LENGTH: 50'; Type SJOW/SJOW-A | Water Resistant
• AMP DRAW (full load): 15.0
• VOLTAGE: 1ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction, Cap Start
• IMPELLER CONSTRUCTION: High Strength Valox 420SEO Impeller with Bronze Insert
• IMPELLER SIZE: 4-1/4"

Hydromatic HPGR200 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic HPGR200 Product Resources

Download Hydromatic HPGR200 Sales Brochure

Download Hydromatic HPGR200 Performance Data

Download Hydromatic HPGR200 Installation & Service Manual
