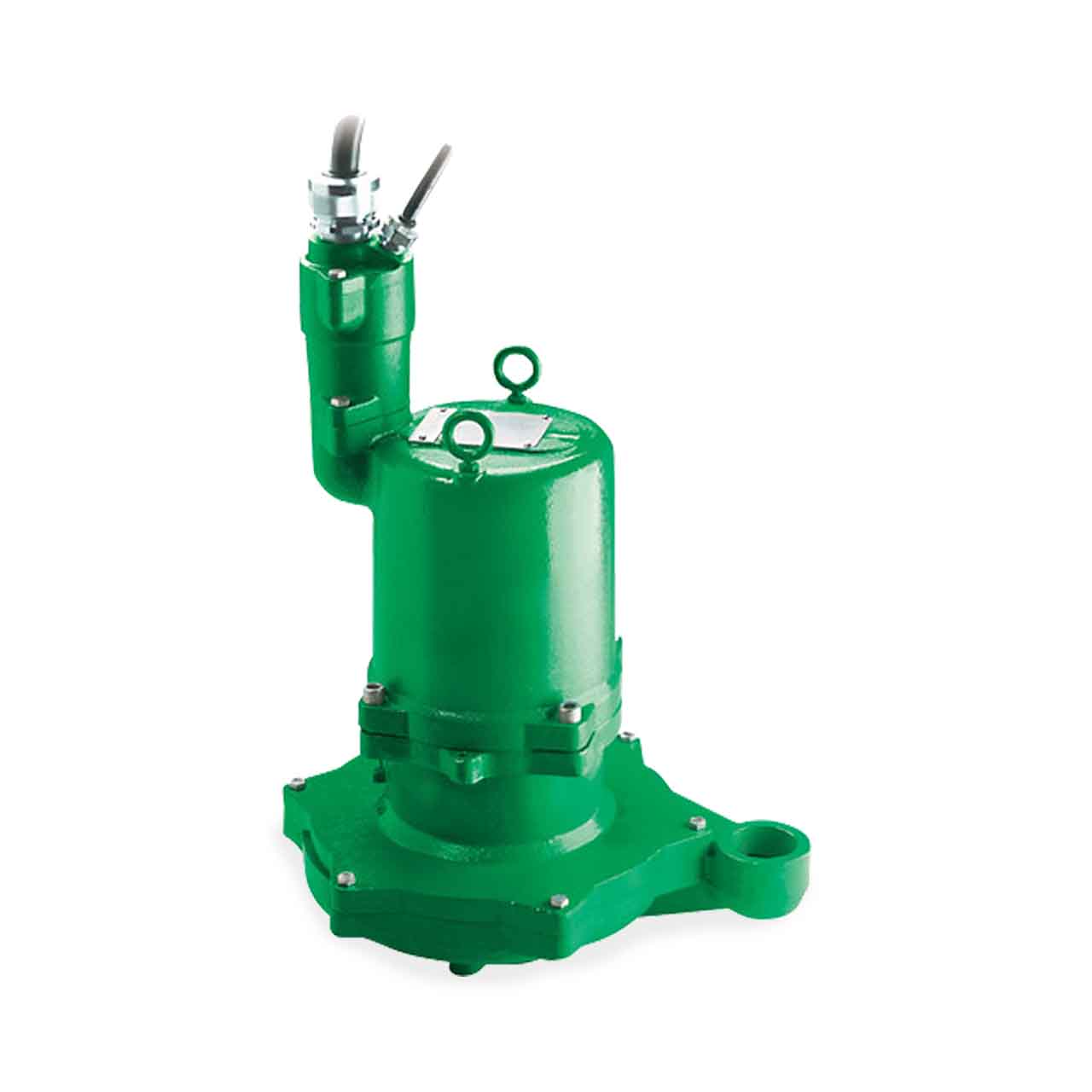

Hydromatic HPGHX Hazardous Submersible Sewage Grinder Pump Description

Hydromatic HPGHX Hazardous Submersible Sewage Grinder Pump is designed to meet the demands of Muncipal, Commercial , Residential and Resort Areas.

Hydromatic HPGHX Typical Application

• Hazardous Locations Class I, Division 1, Groups C & D

Hydromatic HPGHX Superior Features

• One epoxy barrier, one compression fitting and two additional O-rings for maximum protection against wicking and water seepage into the motor housing.
• The heavy-duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
• Electrical motor design combines the advantages of high torque output with optimum running efficiency engineered specifically for grinder operation.
• The stator is secured to the motor housing by means of stator bolts which ensure ease of maintenance if the need ever arises.
• Standard stainless steel shaft in grinder pump.
• Dual seals for maximum moisture protection.
• Moisture detection probe located in seal chamber.
• Exclusive “Dual Cutter” design cuts solids to smallest particle size thereby greatly reducing clogging, roping, or binding.
• Multivane, semiopen impeller

Hydromatic HPGHX Key Features

• Dual Ball Bearing Design
• Exclusive Dual Cutters
• Three Barrier Seal Protects Against Wicking
• Available as Horizontal or Vertical Discharge
• Available configurations, rails and accessories:
  • Rail Systems Available
  • Controls and Accessories Available

Hydromatic HPGHX300GD Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 3.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 88'
• MAXIMUM CAPACITY: up to 91 GPM
• DISCHARGE PIPE SIZE: 2" NPT Vertical Discharge
• CORD LENGTH: 35' Standard
• CORD SIZE: 14-4; Type: SOOW, W
• AMP DRAW (full load): 3.8
• VOLTAGE: 3ø, 575V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction
• IMPELLER CONSTRUCTION: Semi-Open 5 Vane, Red Brass #85-5-5-5, ASTM B584-836
• IMPELLER SIZE: 4.25"

Hydromatic HPGHX Pump Curve
