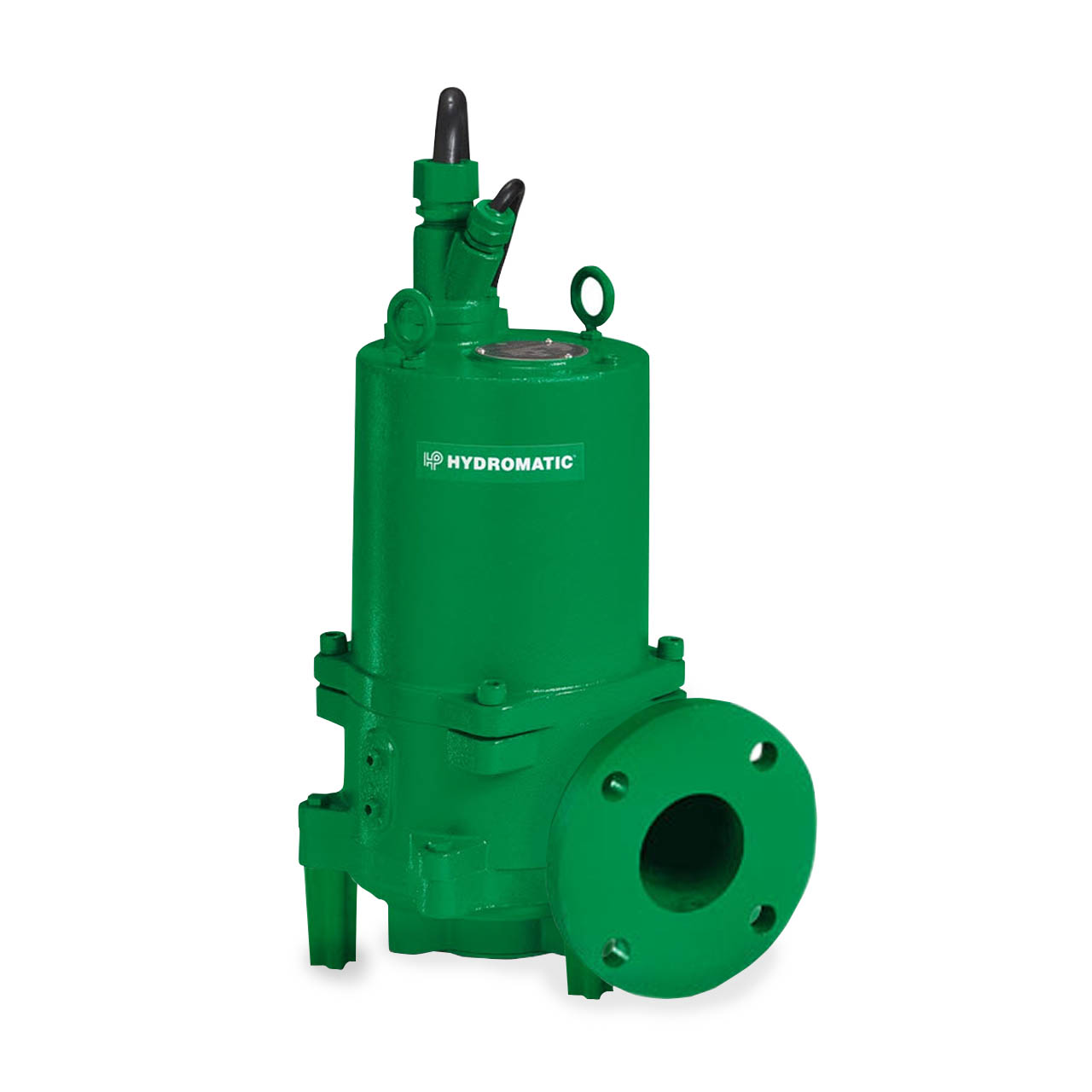

Hydromatic HPGHH300M3-2 Submersible Sewage Grinder Pump 3.0 HP 230/460V 3PH Manual 4.25" imp. 35' cord
Hydromatic HPGHH300M3-2 Submersible Sewage Grinder Pump 3.0 HP 230/460V 3PH Manual 4.25" imp. 35' cord
SKU : HTC514662037
In Stock Quantity:0
:
Brand
:
Regular price
$8,688.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Hydromatic HPGHH Submersible Sewage Grinder Pump Description
Hydromatic HPGHH Submersible Sewage Grinder Pump is designed to meet the demands of Residential , Commercial and Resort Areas.
Hydromatic HPGHH Typical Application
- Residential
- Commercial
- Resort Area
Hydromatic HPGH Submersible Sewage Grinder Pump Features
- Two Barrier Seal: One Epoxy Barrier and One Compression Fitting for Maximum Protection against Wicking and Water Seepage into the Motor Housing.
- Bearings: The Heavy-Duty Ball Bearings, Upper (radial) and Lower (thrust), are Continuously Lubricated by Oil to Ensure Long Service Life.
- Motor: Electrical Design Combines the Advantages of High Torque Output with Optimum Running Efficiency Engineered Specifically for Grinder Operation.
- Stator Bolts: The Stator is Secured to the Motor Housing by Means of Stator Bolts and Retaining Ring which Ensure Ease of Maintenance if the Need Ever Arises.
- Shaft: Standard Stainless Steel Shaft in Grinder Pump.
- Dual Seals: Dual Seals for Maximum Moisture Protection.
- Moisture Probe: Moisture Detection Probe.
- Cutters: Exclusive “Dual Cutter” Design Cuts Solids to Smallest Particle Size, Thereby Greatly Reducing Clogging, Roping, or Binding.
- Impeller: Standard 316 SST/CFBM Impeller Provides Highest Level of Corrosion Resistance and Maximum Toughness from Impact for a Wide Variety of Slurry Pumpage.
Specifications
Specifications
Hydromatic HPGHH300M3-2 Specifications
- VOLTAGE: 3ø, 230/460V 60Hz
- HORSEPOWER: 3.0 HP
- AMP DRAW (full load): 9.4
- MOTOR TYPE: Enclosed, Oil Cooled Induction
- RPM: 3450
- MAXIMUM HEAD: up to 92'
- MAXIMUM CAPACITY: up to 55 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2" NPT Discharge
- MAXIMUM SOLIDS HANDLING SIZE: 4.0"
- IMPELLER TYPE: Semi-Open 5 Vane, Red Brass #85-5-5-5, ASTM B584-836
- IMPELLER DIAMETER: 4.25"
- CORD LENGTH: 35' Standard
- CORD SIZE: 14-4; Type: SOOW/W
- OPTIONAL CORD LENGTH: 50'
- BODY CONSTRUCTION: Class 30 Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F
Hydromatic HPGHH Pump Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hydromatic HPGHH Product Resources
Download Hydromatic HPGHH Sales Brochure
Download Hydromatic HPGHH Electrical Data
Download Hydromatic HPGHH Technical Data
Download Hydromatic HPGHH Performance Curve
Download Hydromatic HPGHH Installation & Service Manual
