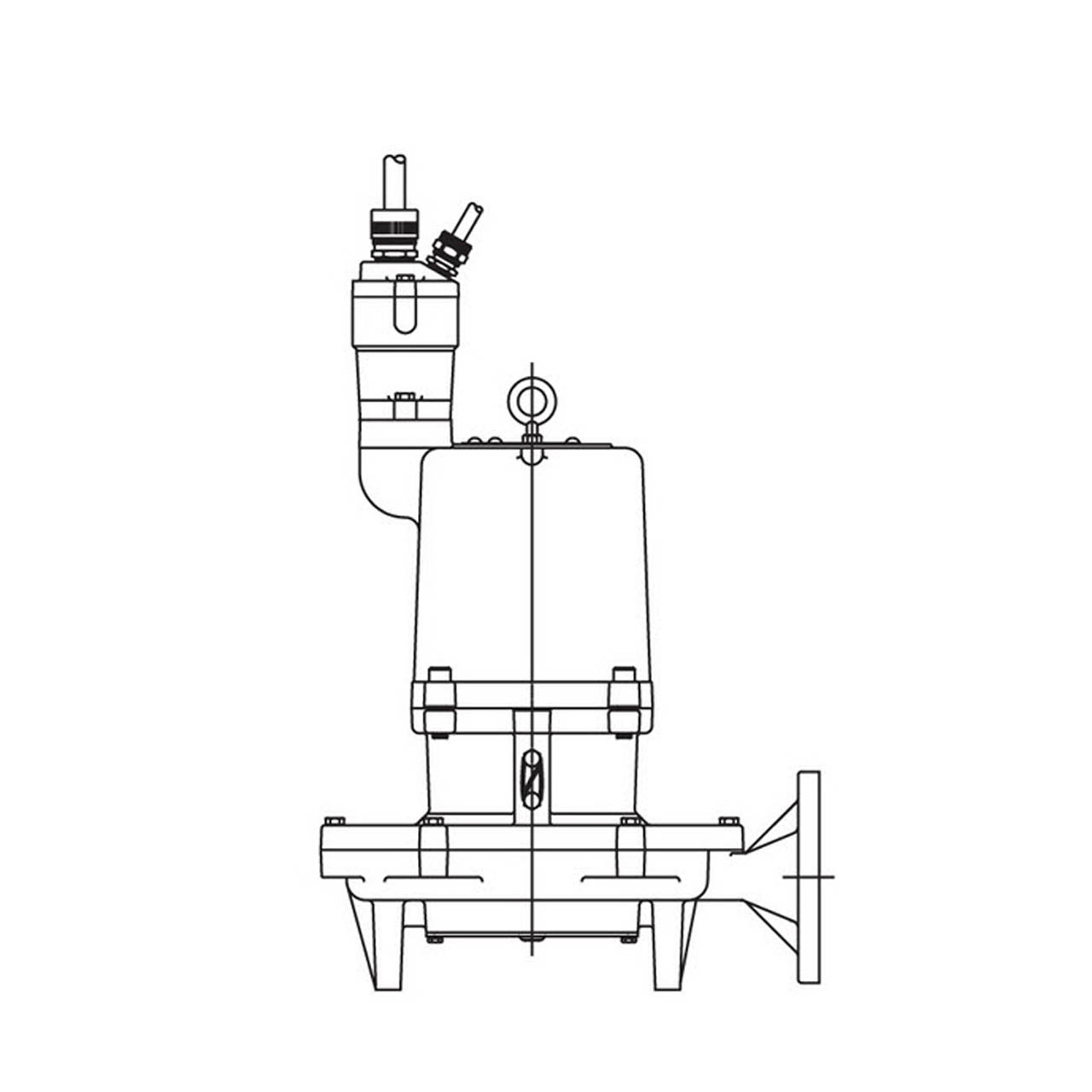

Hydromatic HPGFHX Hazardous Submersible Sewage Grinder Pump Description

Hydromatic HPGFX Hazardous Submersible Sewage Grinder Pump is designed to meet the demands of Municipal, Commercial, Residential and Resort Areas.

Hydromatic HPGFHX Typical Application

• Municipal
• Commercial
• Residential
• Resort Area
• Hazardous Locations Class I, Division 1, Groups C & D

Hydromatic HPGFHX Superior Features

• One epoxy barrier, one compression fitting and two additional O-rings for maximum protection against wicking and water seepage into the motor housing.
• The heavy-duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
• Electrical motor design combines the advantages of high torque output with optimum running efficiency engineered specifically for grinder operation.
• The stator is secured to the motor housing by means of stator bolts which ensure ease of maintenance if the need ever arises.
• Standard stainless steel shaft in grinder pump.
• Dual seals for maximum moisture protection.
• Moisture detection probe located in seal chamber.
• Exclusive “Dual Cutter” design cuts solids to smallest particle size thereby greatly reducing clogging, roping, or binding.
• Multivane, semiopen impeller.

Hydromatic HPGFHX300EC Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 3.0 HP
• RPM: 1750
• MAXIMUM HEAD: up to 54'
• MAXIMUM CAPACITY: up to 113GPM
• DISCHARGE PIPE SIZE: 3" 135# Flange Horizontal Discharge
• CORD LENGTH: 35' Standard
• CORD SIZE: 14-4; Type: SOOW, W
• AMP DRAW (full load): 9.5
• VOLTAGE: 3ø, 230/460V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• IMPELLER CONSTRUCTION: Red Brass #85-5-5-5, ASTM B584-836
• IMPELLER SIZE: 8.0"
• Section 200

Hydromatic HPGFHX Pump Curve
