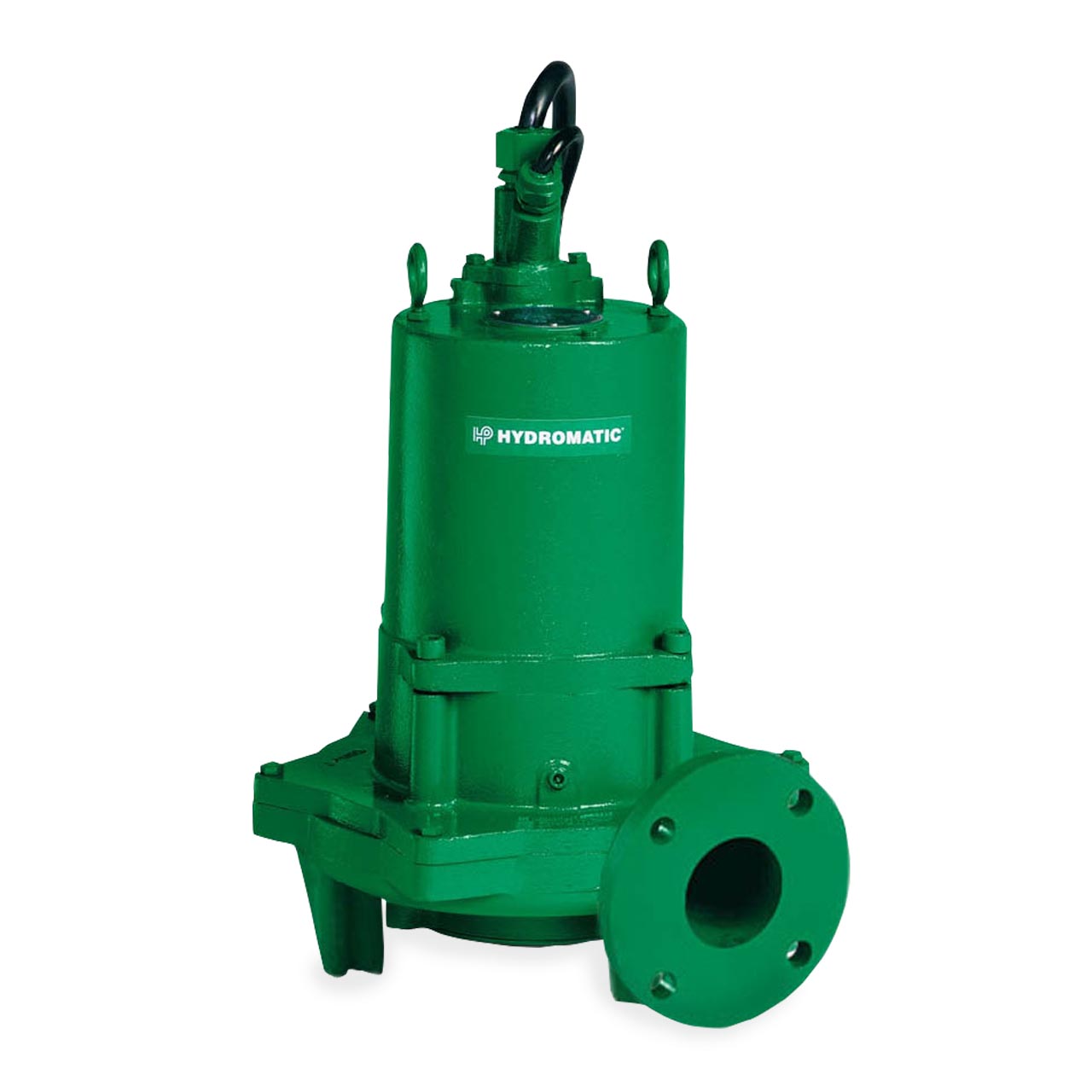

Hydromatic HPGFH Submersible Sewage Grinder Pump Description

Hydromatic HPGFH Submersible Sewage Grinder Pump is designed to meet the demands of Residential, Commercial and Resort Areas.

Hydromatic HPGFH Typical Application

• Residential
• Commercial
• Resort Area

Hydromatic HPGFH Superior Features

• One epoxy barrier and one compression fitting for maximum protection against wicking and water seepage into the motor housing.
• The heavy-duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
• Electrical motor design combines the advantages of high torque output with optimum running efficiency engineered specifically for grinder operation.
• The stator is secured to the motor housing by means of stator bolts and retaining ring which ensure ease of maintenance if the need ever arises.
• Standard stainless steel shaft in grinder pump
• Dual seals for maximum moisture protection.
• Moisture detection probe.
• Exclusive “Dual Cutter” design cuts solids to smallest particle size, thereby greatly reducing clogging, roping, or binding.
• Engineered nonmetallic semiopen impeller molded to a bronze insert for greatest torque driving capabilities. Impeller made of high strength Valox® which provides highest level of corrosion resistance and maximum toughness from impact for a wide variety of slurry pumpage. Pump-out vanes preclude material buildup around shaft and seal.

Hydromatic HPGFH Key Features

• Explosion-proof
• Class 1, Division 1, Groups C & D
• Dual seals for maximum moisture protection
• Oil-filled motor for maximum heat dissipation and constant bearing lubrication
• Exclusive dual cutter design cuts solids to the smallest particle size
• Semi-open impeller provides steep non-overloading operating curve
• Available configurations, rails and accessories:
  • Rail Systems Available
  • Controls and Accessories Available

Hydromatic HPGFH500M6-4 Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 5.0 HP
• RPM: 1750
• MAXIMUM HEAD: up to 161'
• MAXIMUM CAPACITY: up to 98 GPM
• DISCHARGE PIPE SIZE: 3" 125# Flange Horizontal Discharge
• CORD LENGTH: 35' Standard
• CORD SIZE: 10-4; Type: SOOW, W
• AMP DRAW (full load): 17.6
• VOLTAGE: 3ø, 200V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction
• IMPELLER CONSTRUCTION: Semi-Open 5 Vane, Red Brass #85-5-5-5, ASTM B584-836
• IMPELLER SIZE: 10.13"

Hydromatic HPGFH Pump Curve
