Discontinued - Hydromatic Pump

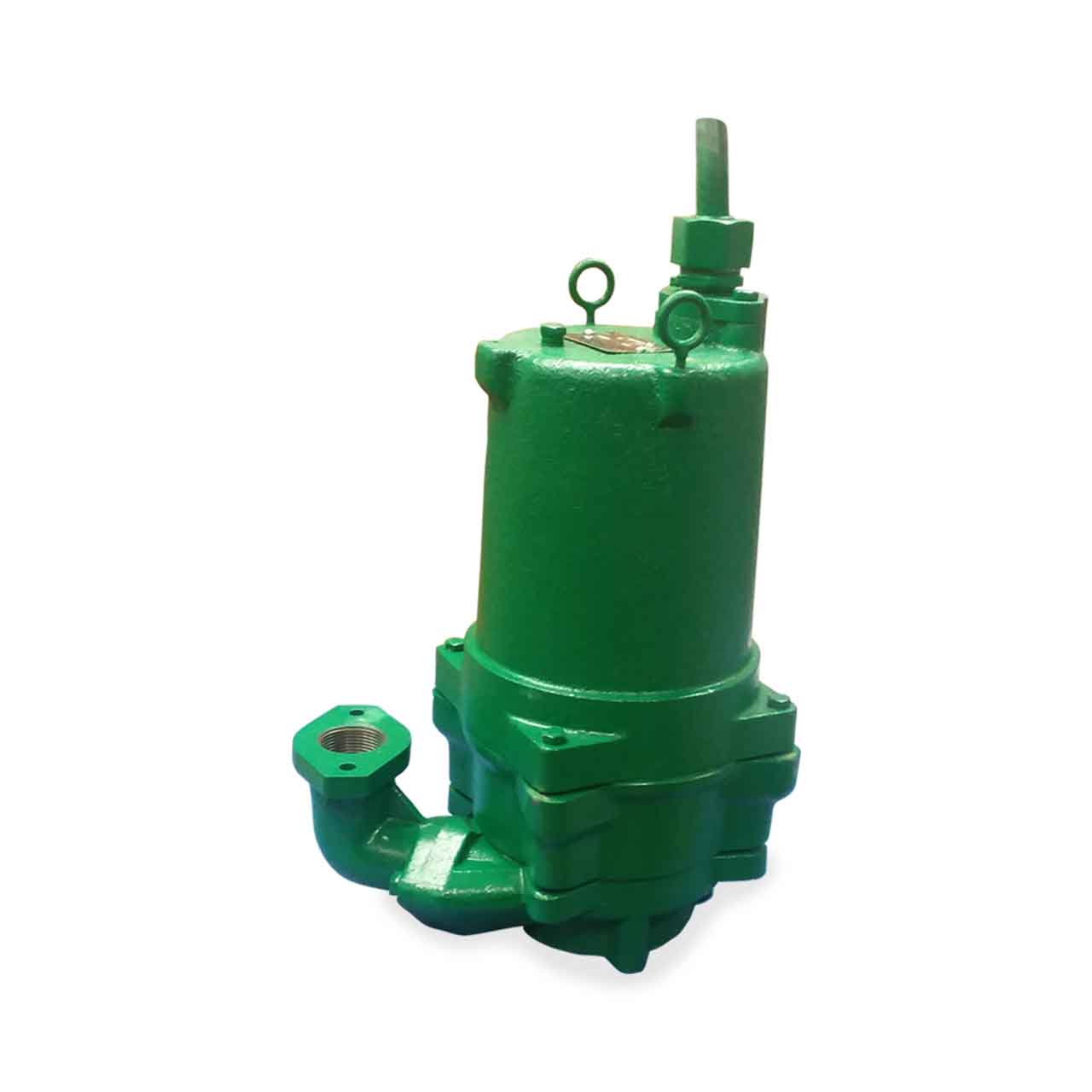

Hydromatic HPG200 Submersible Sewage Grinder Pump Description

Hydromatic HPG200 Submersible Sewage Grinder Pump is designed to meet the demands of Residential, Commercial and Resort Areas.

Hydromatic HPG200 Typical Application

• Residential
• Commercial
• Resort Area

Hydromatic HPG200 Superior Features

• One epoxy barrier and one compression fitting for maximum protection against wicking and water seepage into the motor housing
• The heavy-duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
• Electrical motor design combines the advantages of high torque output with optimum running efficiency engineered specifically for grinder operation.
• The stator is secured to the motor housing by means of stator bolts which ensure ease of maintenance if the need ever arises.
• Standard stainless steel shaft in grinder pump.
• Dual seals for maximum moisture protection
• Moisture detection probe.
• Exclusive “Dual Cutter” design cuts solids to smallest particle size thereby greatly reducing clogging, roping, or binding.
• Engineered non-metallic semi-open impeller molded to a bronze insert for greatest torque driving capabilities. Impeller made of high strength Valox® which provides highest level of corrosion resistance and maximum toughness from impact for a wide variety of slurry pumpage. Pump-out vanes preclude material build-up around shaft and seal. Bronze impeller available.

Hydromatic HPG200 Key Features

• Engineered for low pressure sewer system applications
• Semi-open impeller provides steep non-overloading operating curve
• Durable motor will deliver many years of reliable service
• Oil-filled motor for maximum heat dissipation and constant bearing lubrication
• Exclusive dual cutter design cuts solids to the smallest particle size
• High torque capacitor start/run for assured starting under heavy load
• Available configurations, rails and accessories:
  • Rail Systems Available
  • Controls and Accessories Available

Hydromatic HPG200M3-2 Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 2.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 45'
• MAXIMUM CAPACITY: up to 46 GPM
• DISCHARGE PIPE SIZE: 1.25" NPT Discharge
• CORD LENGTH: 20'; Type HPG/SOOW
• AMP DRAW (full load): 8.3
• VOLTAGE: 3ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction
• IMPELLER CONSTRUCTION: Semi-Open 5 Vane, Red Brass #85-5-5-5, ASTM B584-836
• IMPELLER SIZE: 3.75"
• Section 200

Hydromatic HPG200 Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic HPG200 Product Resources

Download Hydromatic HPG Sales Brochure

Download Hydromatic HPG Electrical Data

Download Hydromatic HPG Technical Data

Download Hydromatic HPG Performance Curve

Download Hydromatic HPG Installation & Service Manual

Download Hydromatic HPG Dimensional Data

Download Hydromatic HPG Specification Data

Download Hydromatic HPG Installation Drawings
