Discontinued - Submersible Grinder Pumps - Centrifugal

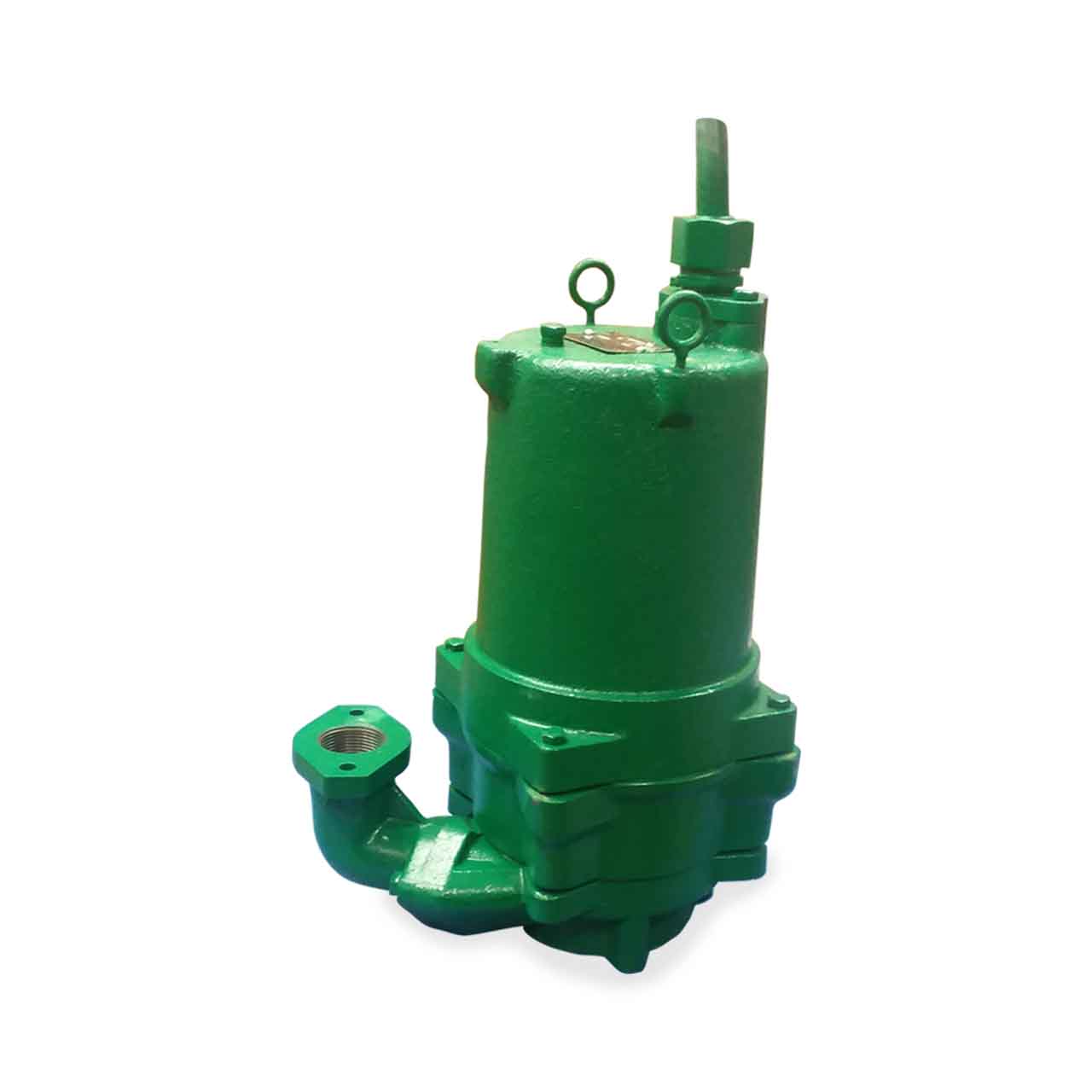

Hydromatic HPG200 Submersible Sewage Grinder Description

Hydromatic HPG200 Submersible Sewage Grinder Pump is designed to meet the demands of Residential, Commercial and Resort Areas.

Hydromatic HPG200 Typical Application

• Residential
• Commercial
• Resort Area

Hydromatic HPG200 Superior Features

• One epoxy barrier and one compression fitting for maximum protection against wicking and water seepage into the motor housing
• The heavy-duty ball bearings, upper (radial) and lower (thrust), are continuously lubricated by oil to ensure long service life.
• Electrical motor design combines the advantages of high torque output with optimum running efficiency engineered specifically for grinder operation.
• The stator is secured to the motor housing by means of stator bolts which ensure ease of maintenance if the need ever arises.
• Standard stainless steel shaft in grinder pump.
• Dual seals for maximum moisture protection
• Moisture detection probe.
• Exclusive “Dual Cutter” design cuts solids to smallest particle size thereby greatly reducing clogging, roping, or binding.
• Engineered non-metallic semi-open impeller molded to a bronze insert for greatest torque driving capabilities. Impeller made of high strength Valox® which provides highest level of corrosion resistance and maximum toughness from impact for a wide variety of slurry pumpage. Pump-out vanes preclude material build-up around shaft and seal. Bronze impeller available.

Hydromatic HPG200 Key Features

• Engineered for low pressure sewer system applications
• Semi-open impeller provides steep non-overloading operating curve
• Durable motor will deliver many years of reliable service
• Oil-filled motor for maximum heat dissipation and constant bearing lubrication
• Exclusive dual cutter design cuts solids to the smallest particle size
• High torque capacitor start/run for assured starting under heavy load
• Available configurations, rails and accessories:
  • Rail Systems Available
  • Controls and Accessories Available

Hydromatic HPG200M2-2 Technical Details

• BODY CONSTRUCTION: Class 30 Cast Iron
• HORSEPOWER: 2.0 HP
• RPM: 3450
• MAXIMUM HEAD: up to 50'
• MAXIMUM CAPACITY: up to 49 GPM
• DISCHARGE PIPE SIZE: 1.25" NPT Discharge
• CORD LENGTH: 20'; Type HPG/SOOW
• AMP DRAW (full load): 19.9
• VOLTAGE: 1ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction
• IMPELLER CONSTRUCTION: Semi-Open 5 Vane, Red Brass #85-5-5-5, ASTM B584-836
• IMPELLER SIZE: 4.0"
• Section 200

Hydromatic HPG200 Pump Curve
