Item Discontinued, See Similar Replacement: Myers J1035BE High Head Effluent Pump 35 GPM 1.0 HP 230V 1PH 20' Cord

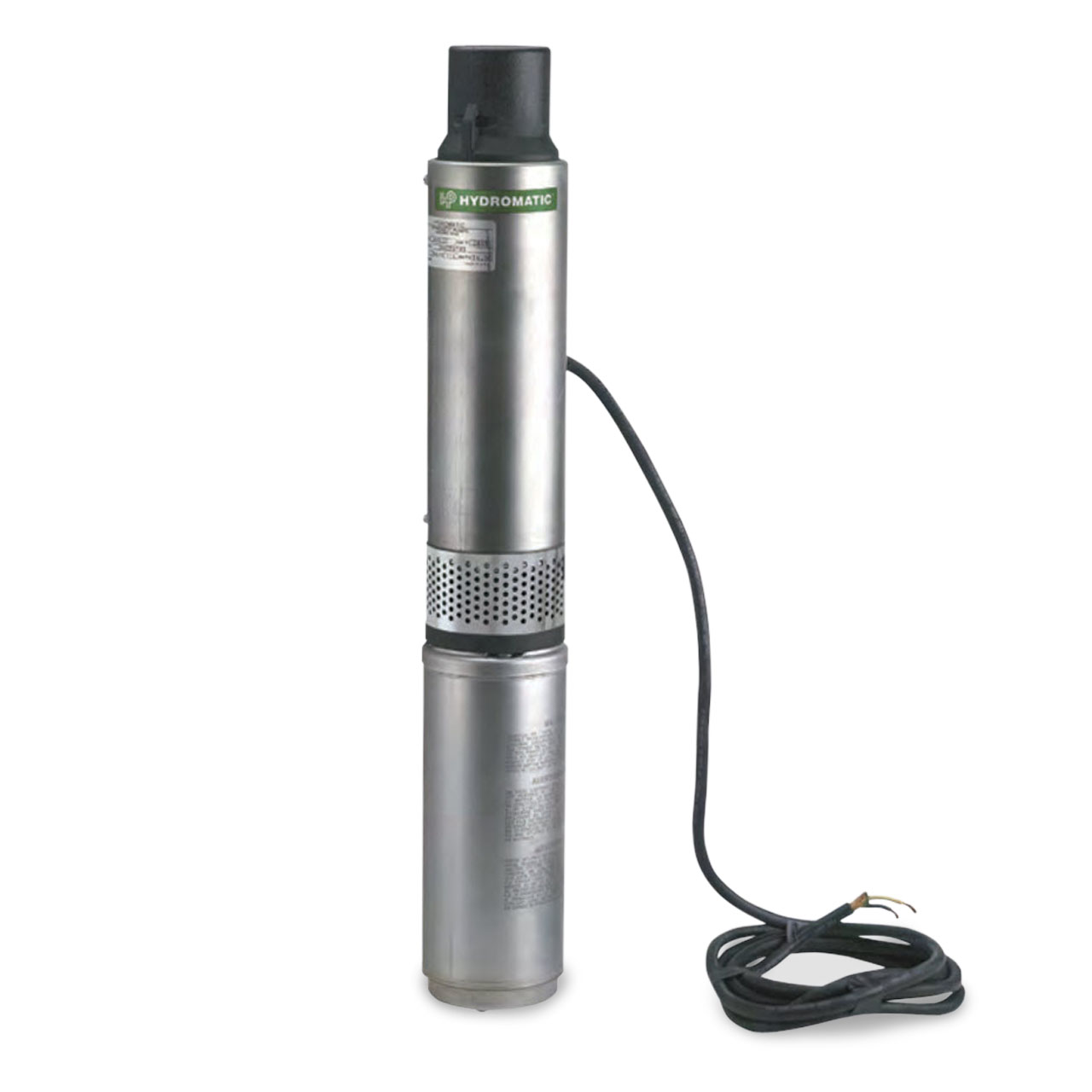

Hydromatic HE35 Description

Hydromatic high head filtered effluent pumps are designed specifically for high pressure application.

Hydromatic HE35 Typical Application

• High Head Septic Tank and Treated Effluent
• Process Water
• High Head Sump

Hydromatic HE35 Features

• High-pressure capacity
• Corrosion-resistant design for long life
• Dependable field-proven motor
• Built-in overload and electric surge protection
• Hermetically sealed windings
• Continuous duty rating and frequent cycling capabilities
• Powerful, yet lightweight for easy handling and installation
• UL and CSA rated
• 1 HP Rated for 100 Starts Per 24 Hours

Hydromatic HE35 Technical Details

• BODY CONSTRUCTION: Stainless Steel
• HORSEPOWER: 1.0 HP
• MAXIMUM HEAD: up to 130'
• MAXIMUM CAPACITY: up to 50 GPM
• DISCHARGE PIPE SIZE: 2" NPT
• MAXIMUM SOLIDS HANDLING SIZE: 1/16"
• AMP DRAW (full load): 9.8
• CORD LENGTH: 10'; Type SJTW, STW-A
• VOLTAGE: 1ø, 230V
• MAXIMUM LIQUID TEMPERATURE: 122°F
• MOTOR: Built-In Overload and Electric Surge Protection
• IMPELLER CONSTRUCTION: Two Vane Semi-Open, Thermoplastic

Hydromatic HE35 Pump Curve
