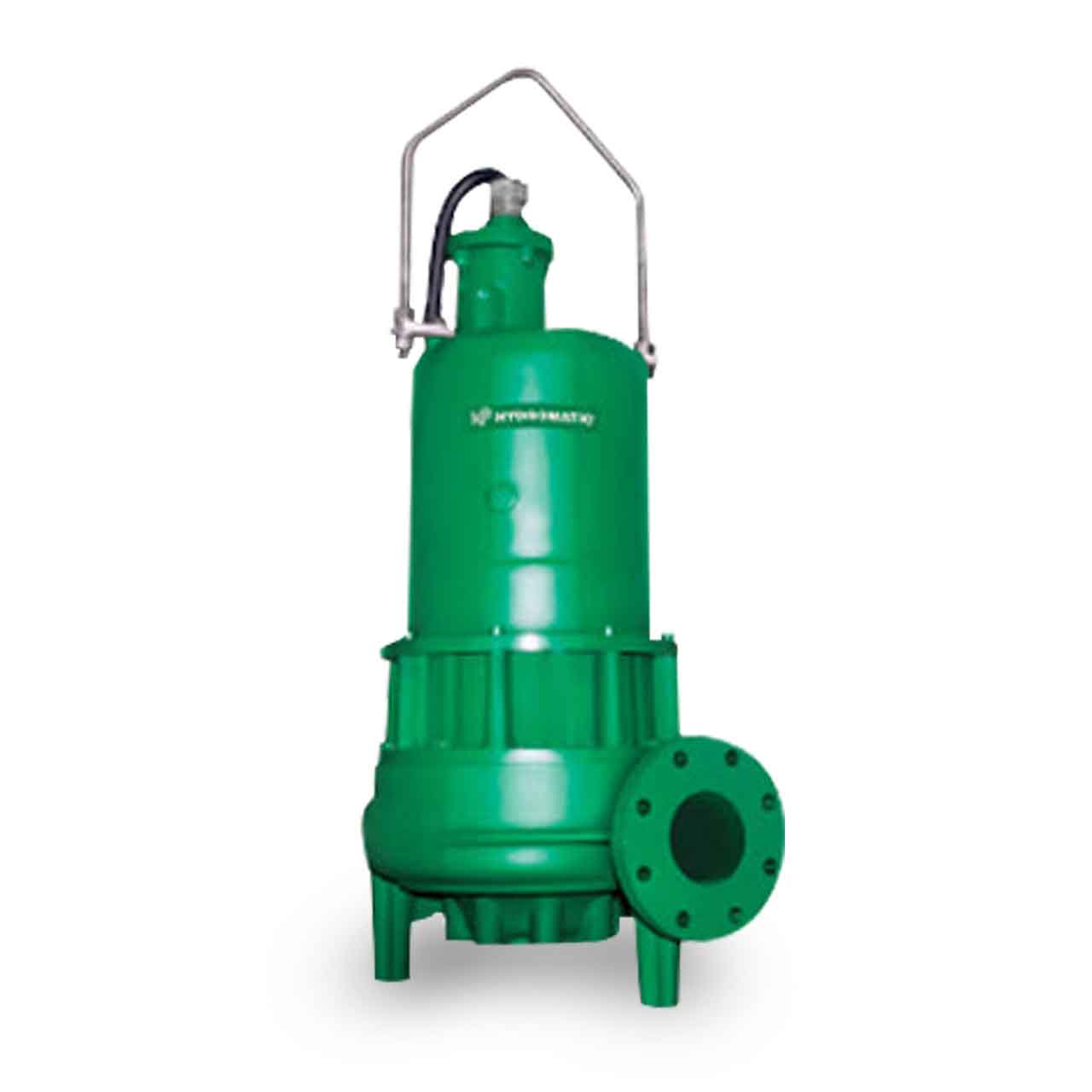

Hydromatic H4Q Submersible Solids Handling Pumps Description

Hydromatic H4Q Submersible Solids Handling Pumps enhanced performance is made possible by an improved mono-vane impeller which helps eliminate clogs.

Hydromatic H4Q Typical Application

• Municipal
• Commercial
• Industrial

Hydromatic H4Q Superior Features

• Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
• Standard construction is cast iron.
• Stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases bearing and seal life. Tapered shaft allows for easy removal of impeller.
• Available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
• The connection box has two epoxy barriers and a compression fitting that prevent water contamination of the motor area, assuring long-term reliable operation. In addition, epoxy encapsulation and stripped leads postitively eliminate "wicking" from the cable
• Heavy duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
• Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.
• Passes a full 3" diameter nondeformable spherical solid per the Ten States Standards.

Hydromatic H4Q2500M6-4 Technical Details

• BODY CONSTRUCTION: Class 30 cast iron
• HORSEPOWER: 25 HP
• RPM: 1750
• MAXIMUM HEAD: up to 158'
• MAXIMUM CAPACITY: up to 875 GPM
• DISCHARGE PIPE SIZE: 4" Flange 125# Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 3" Spherical
• AMP DRAW (full load): 78.3
• CORD LENGTH: 35' Standard
• OPTIONAL CORD LENGTH: 50'
• CORD SIZE: 4-4; Type: SOOW/W
• AMP DRAW (full load): 78.3
• VOLTAGE: 3ø, 200V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, Oil Cooled Induction, VFD Suitable
• IMPELLER CONSTRUCTION: Balanced, Enclosed, 1 Vane, Ductile Iron, ASTM A536
• IMPELLER SIZE: 10.5"
• Section 300

Hydromatic H4Q Pump Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Hydromatic H4Q Product Resources

Download Hydromatic H4Q Sales Brochure

Download Hydromatic H4Q Electrical Data

Download Hydromatic H4Q Technical Data

Download Hydromatic H4Q Performance Curve

Download Hydromatic H4Q Installation & Service Manual

Download Hydromatic H4Q Dimensional Data

Download Hydromatic H4Q Specification Data
