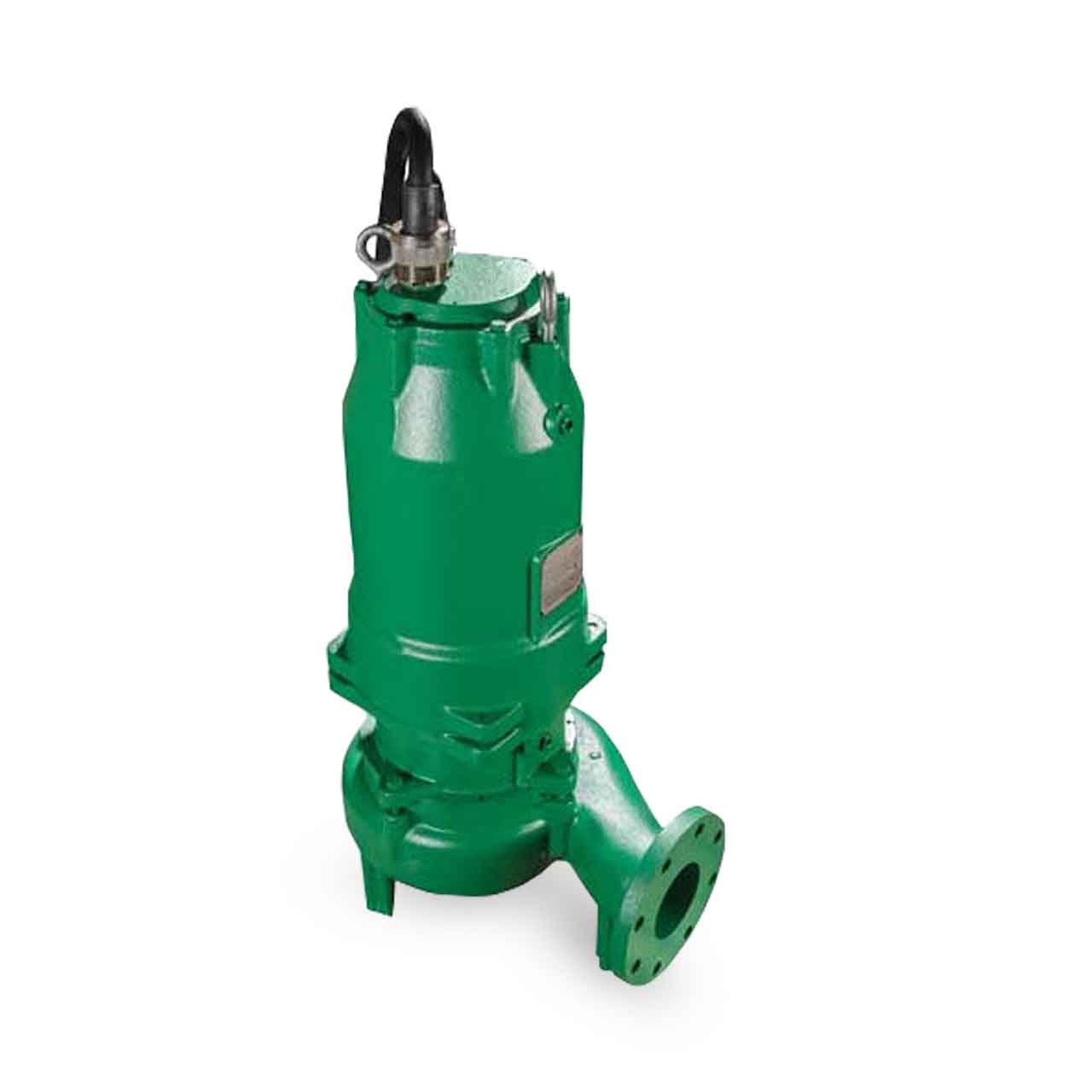

Hydromatic H4HXP Premium Efficient Solids Handling Pump Description

Hydromatic H4HXP Premium Efficient Solids Handling Pump is Engineered for lower lifecycle costs, increased serviceability, and increased pump life....the Hydromatic HPE Series offers the lowest cost of ownership using premium-Efficiency oil-filled motor!

Hydromatic H4HXP Typical Application

• Hazardous location Class I, Division 1, Groups C & D

Hydromatic H4HXP Superior Features

• Hydromatic HPE pump equipped with a premium efficient motor allows for less energy consumption, lower operating costs and longer pump life.
• Terminal Block - provides for a positive electrical connection eliminating the need for wire nuts and crimp connectors. The slip fit motor stators allow for easy rebuilds when the time comes. HPE pumps can be equipped with bearing temperature RTDs allowing for optimal preventative maintenance.
• Oil filled motors have several operational advantages including significantly lower operating temperatures, superior moisture protection and maintenance free self-lubricating bearings.
• Seal Leak Detection - True early-warning system, housed in seal chamber to alert of liquid intrusion into outboard seal which allows time to schedule a service which eliminates the need for a costly emergency service call.
• Double-Row Bearings for 50,000 hour life over entire curve.
• The HPE series of pump is the only submersible pump available with shaft grounding rings to eliminate harmful shaft currents. They are continuous duty rated NEMA MG1 Part 1 compliant.
• The HPE design allows for maximum seal type choices utilizing standard type 2/2100 silicone carbide seals for low cost as will as the industry's first Switchable Seal Design for use with easy-to-service cartridge seals.
• Oil-Impregnated bronze sleeve bearing used to create flame path
• Optional quick release cord design

Hydromatic H4HXP750GC Technical Details

• BODY CONSTRUCTION: Class 30 cast iron
• HORSEPOWER: 7.5 HP
• RPM: 1750
• MAXIMUM HEAD: up to 75'
• MAXIMUM CAPACITY: up to 700 GPM
• DISCHARGE PIPE SIZE: 4" Horizontal Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 3"
• CORD LENGTH: 35' Standard with Optional Quick Change Connector
• OPTIONAL CORD LENGTH: 50', 75' and 100' with Optional Quick Change Connector
• CORD SIZE: 10-4; Type: W OR SOOW, Water Resistant, 600V, 90° C
• AMP DRAW (full load): 11.8
• VOLTAGE: 3ø, 575V
• MAXIMUM LIQUID TEMPERATURE: 140°F
• MOTOR: Enclosed, oil cooled induction, VFD suitable
• IMPELLER CONSTRUCTION: Balance, Enclosed, Monovane, Ductile Iron, ASTM A536, Class 65
• IMPELLER SIZE: 8.25"
• Section 300

Hydromatic H4HXP Pump Curve
