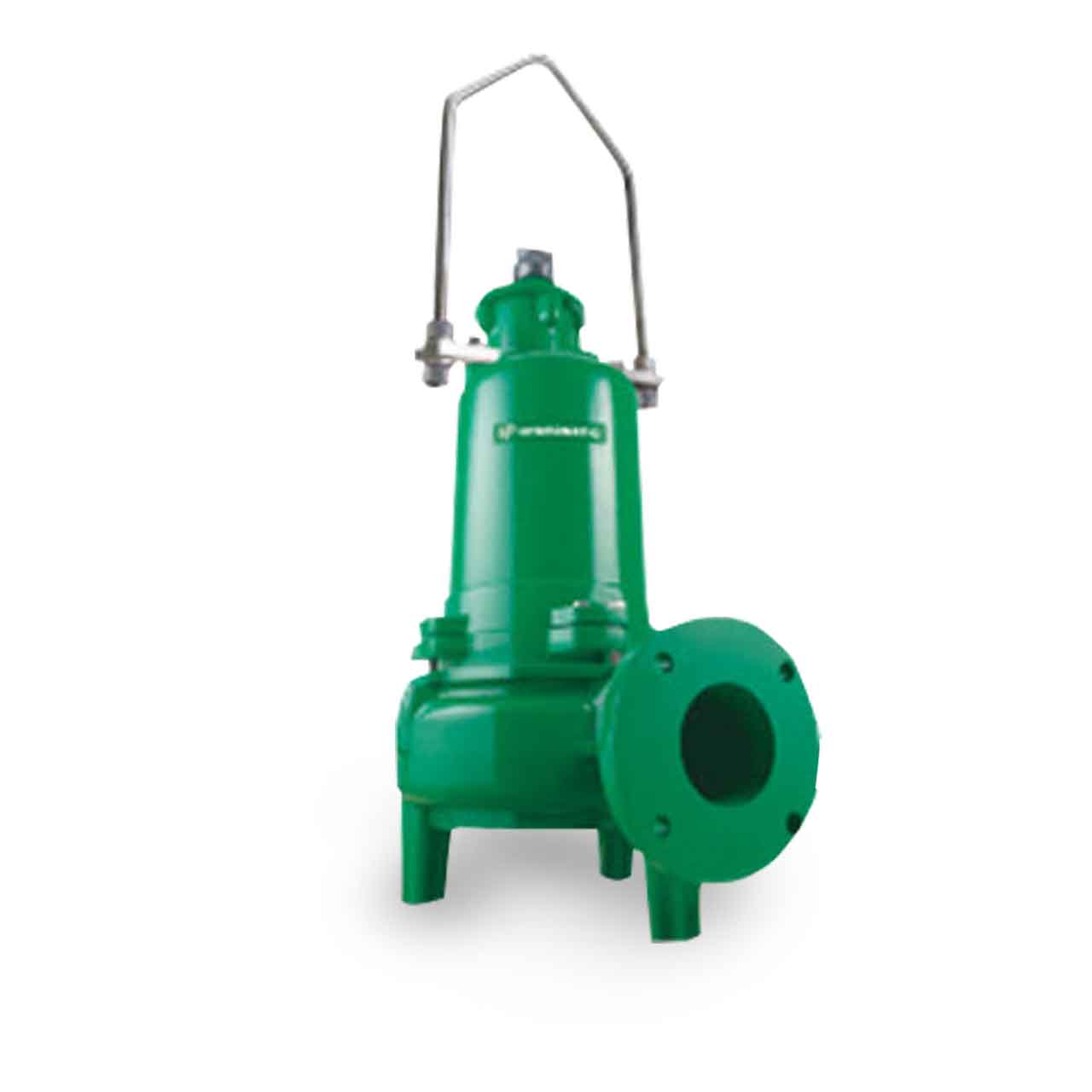

Hydromatic H3H Submersible Solids Handling Pumps Description

Hydromatic H3H Submersible Solids Handling Pumps enhanced performance is made possible by an improved mono-vane impeller which helps eliminate clogs.

Hydromatic H3H Typical Application

• Municipal
• Commercial
• Industrial

Hydromatic H3H Superior Features

• Oil filled motor efficiently dissipates heat and locks out damaging moisture so you receive reliable pumping service. Easily field serviceable.
• Two epoxy barriers and a compression fitting prevent water contamination of the motor area, assuring long-term reliable operation. Additionally, epoxy encapsulation and stripped leads positively eliminate “wicking” from the cable.
• Heavy-duty upper and lower ball bearings are submerged in oil to provide permanent lubrication and ensure long service life.
• A dual seal system operates in an oil chamber to provide long pump service life. Various seal options available.
• The stainless steel shaft eliminates corrosion and fatigue for longer pump life. The minimum shaft overhang decreases deflection and increases bearing and seal life. Tapered shaft allows for easy removal of impeller.
• Hydromatic solids handling pumps are available with a wide range of impellers for different applications. Pump-out vanes on the top shroud prevent the buildup of materials in the seal area and extend the life of the thrust bearing by significantly reducing axial thrust.
• Easily replaceable, true wear ring, with a top pullout design for easy disassemble operation.

Hydromatic H3H Key Features

• Passes a full 3" diameter non-deformable spherical solid per the Ten States Standards
• Performance
  • Steep non-overloading curve
  • Flows to 575 GPM, heads to 105 ft.
  • Highly efficient
• Superior Design
  • Streamlined impeller vane at inlet
  • Smooth flow path
• Can easily be converted to an H4H pump to meet future lift station demands
• Rated for use with VFD (variable frequency drive) suitable to deliver outstanding performance.
• Oil Filled Motors - Cooler operating than air filled motors and continuous lubrication of the bearings for longer life
• Seal Cord Entrance - Triple seal protection, prevents moisture entry for longer life.

Hydromatic H3H1000M3-4 Technical Details

• VOLTAGE: 3ø, 230/460V 60Hz
• HORSEPOWER: 10 HP
• AMP DRAW (full load): 29.5
• MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
• RPM: 1750
• MAXIMUM HEAD: up to 100'
• MAXIMUM CAPACITY: up to 550 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 3" 125# ANSI Flange Discharge
• MAXIMUM SOLIDS HANDLING SIZE: 3" Spherical
• IMPELLER TYPE: Balanced, Enclosed, Mono Vane, Ductile Iron, ASTM A536
• IMPELLER DIAMETER: 9.25"
• CORD LENGTH: 35' Standard
• CORD SIZE: 8-4; Type: SOOW/W
• OPTIONAL CORD LENGTH: 50'
• BODY CONSTRUCTION: Class 30 Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F

Hydromatic H3H Pump Curve
