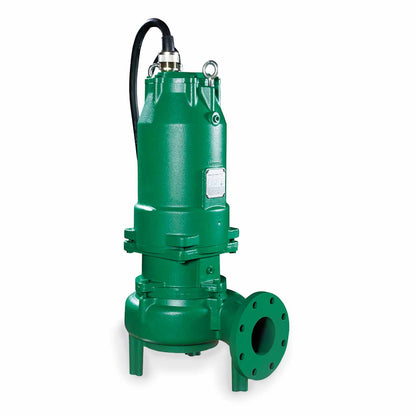

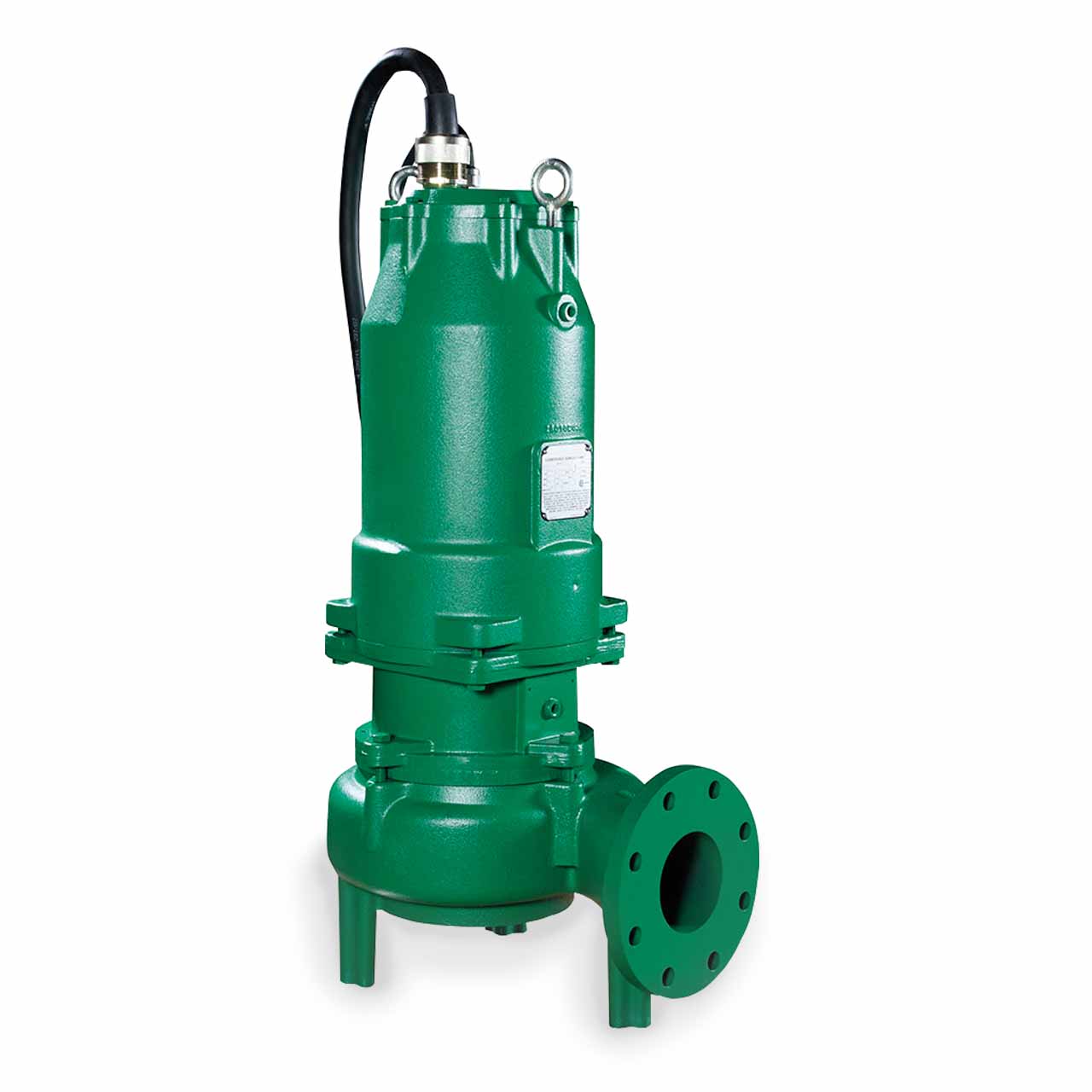

Hydromatic C4SXP1000EC HPE Chopper Pump 10 HP 230/460V 3PH Manual
Hydromatic C4SXP1000EC HPE Chopper Pump 10 HP 230/460V 3PH Manual
SKU : HTC528280127
In Stock Quantity:0
:
Brand
:
Regular price
$19,128.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Commercial/Municipal/Industrial Supplier for Idaho. Commercial Supplier for Washington and Oregon.
Hydromatic HPE Chopper Pump Description

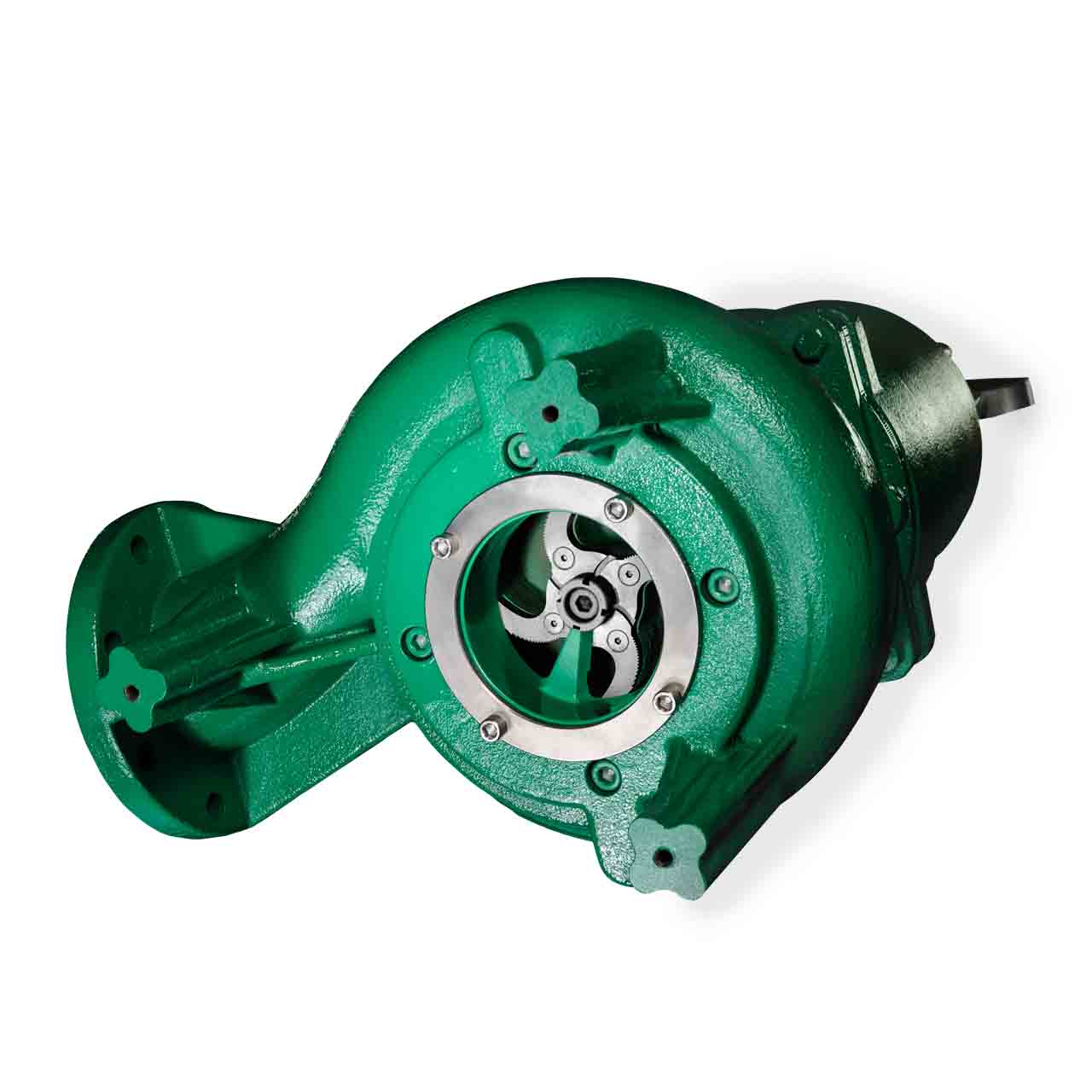

Hydromatic HPE Chopper Pump Destroys Debris Before It Clogs
Hydromatic HPE Chopper Pump Key Features
- Patent-Pending Chopper Mechanism - Cuts Material into Small Pieces Allowing Free Flow Through the Pump.
- Premium Efficient Motor - Delivers High Starting Torque for Reduced Risk of Clogging During Start-Up.
- Semi-Open Impeller Design - Provides Superior Solids Handling Capability while Delivering Increased Efficiency.

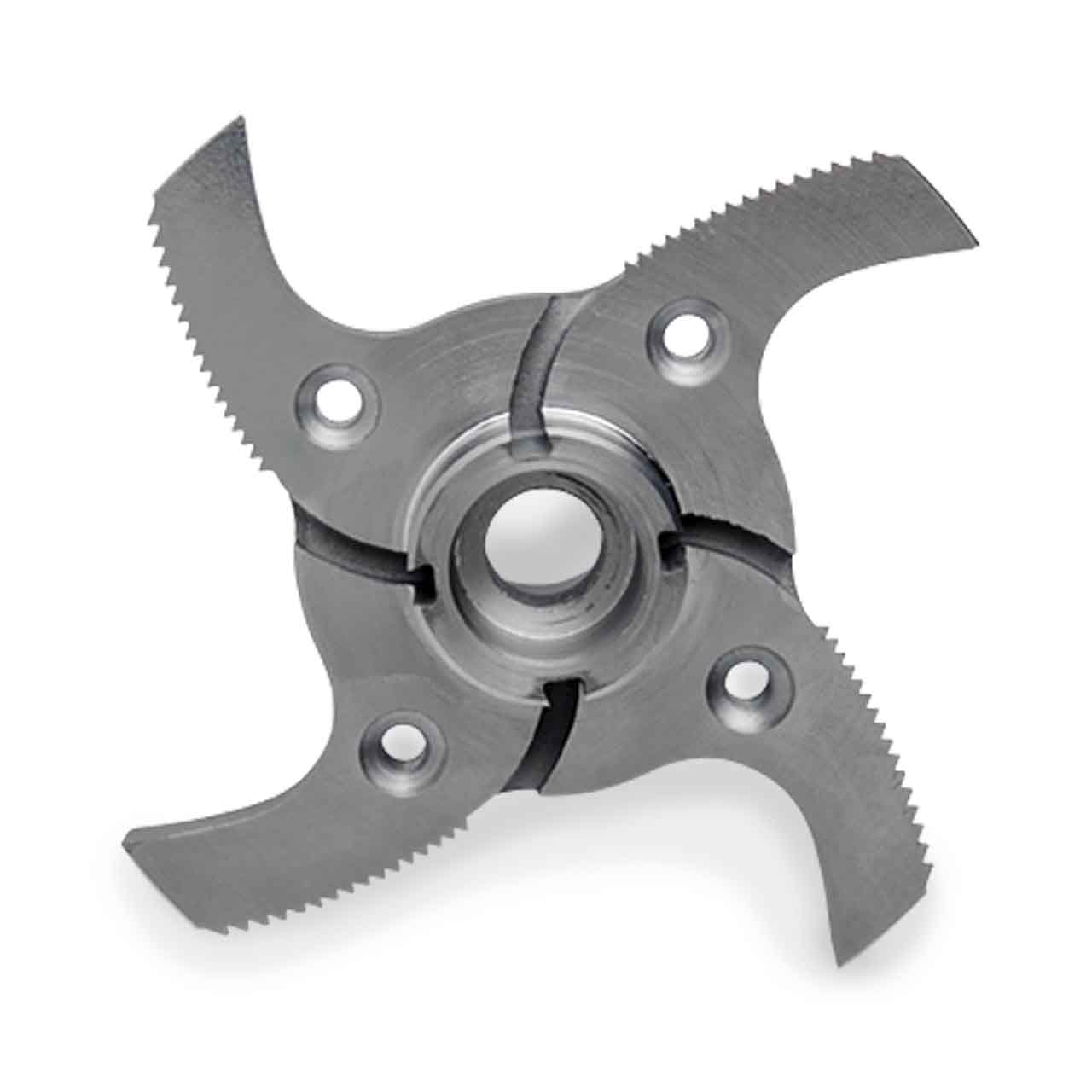

- Cutting Blade and Plate
- Made from 440 SST Hardened to 57-60 Rockwell C for Long Life.
- Replaceable for Lower Maintenance Costs.
- Adjustable Cutting Plate Ensures Optimal Alignment for Best Cutting Performance.
- Relief Groove on Cutter Plate Creates Extra Cutting Edge and Forces Debris Away from Cutting Surface for Maximum Clog Resistance.
- Serrated Blades - For Effective Cutting without Need for Re-Sharpening
Specifications
Specifications
Hydromatic C4SXP1000EC Chopper Pump Technical Details
- VOLTAGE: 3ø, 230/460V 60Hz
- HORSEPOWER: 10HP
- AMP DRAW (full load): 29.4
- MOTOR TYPE: Enclosed, Oil Cooled Induction, VFD Suitable
- RPM: 1750
- MAXIMUM HEAD: up to 96'
- MAXIMUM CAPACITY: up to 900 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4" Horizontal Discharge
- MAXIMUM SOLIDS HANDLING SIZE: 3"
- IMPELLER TYPE: Balanced, Enclosed, Mono Vane, Ductile Iron, ASTM A536
- IMPELLER DIAMETER: 7.75"
- CORD LENGTH: 35' Standard with Optional Quick Change Connector
- CORD SIZE: 8-4; Type: W OR SOOW, Water Resistant, 600V, 90° C
- OPTIONAL CORD LENGTH: 50', 75' and 100' with Optional Quick Change Connector
- BODY CONSTRUCTION: Class 30 Cast Iron
- MAXIMUM LIQUID TEMPERATURE: 140°F
Hydromatic HPE Chopper Pump Curve
